8-16

IM 701210-05E

8.8 Turning Translucent Mode ON/OFF

Procedure

MEASURE

CURSOR RESET SELECT

ALL CH

MODE

POSITION

SIMPLE/ENHANCED

ACQ

START/STOP

SETUP DISPLAY

ZOOM

DUAL

CAPTURE

HISTORY

MATH

DELAY

MANUAL TRIG

V/DIV TIME/DIV

TRIGGER

TRIG D

VERTICAL

HORIZONTAL

CAL

X-Y

DSP 1

8 9

DSP 2

654

ENTER

DSP 6DSP 5

LOGIC A

LOGIC B

EVENT

DSP 3 DSP 4

EXP

GO/NO-GO

ACTION

FILE

SHIFT

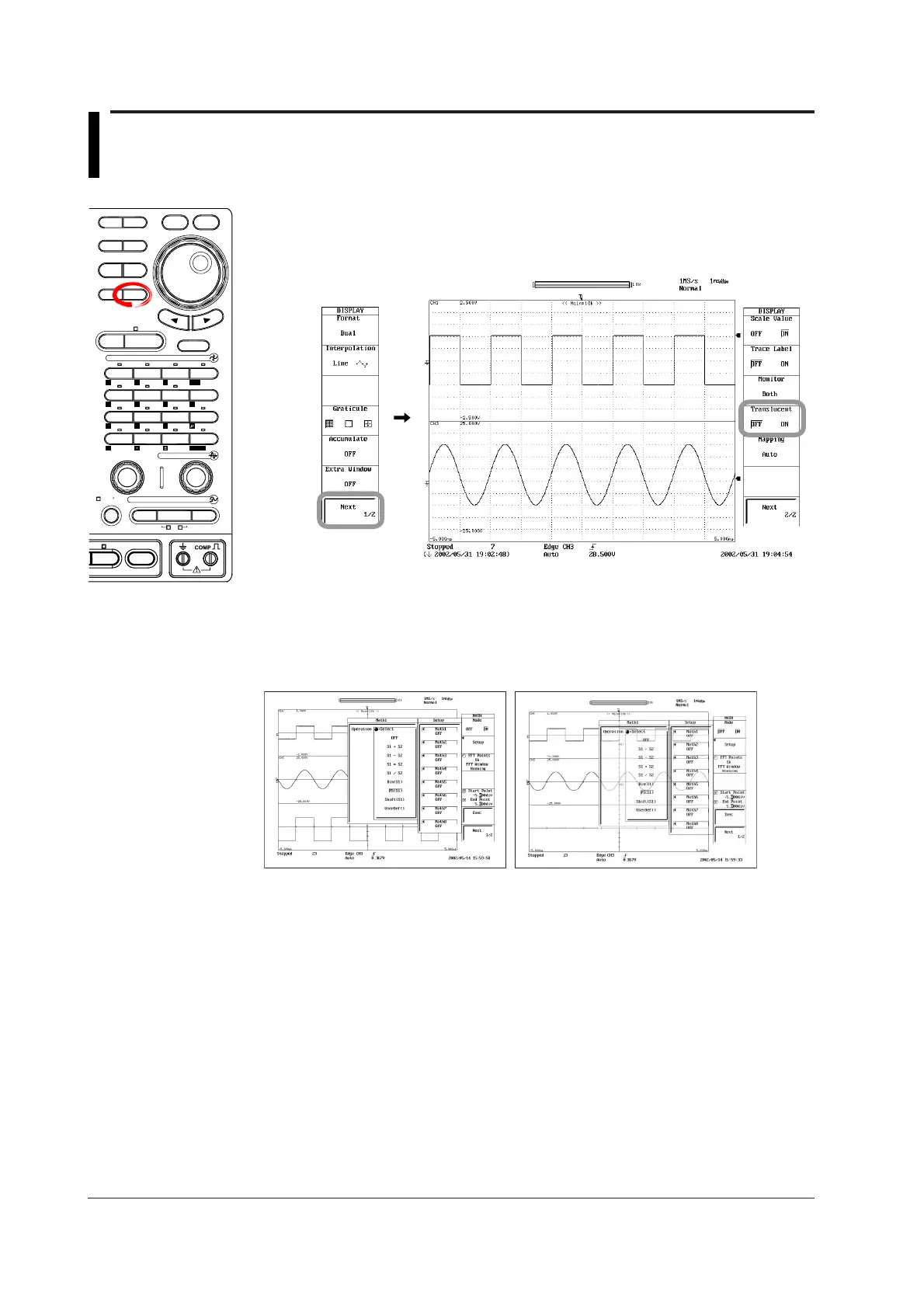

1. Press DISPLAY.

2. Press the Next 1/2 soft key.

3. Press the Translucent soft key to select ON or OFF.

Explanation

When this is turned to ON, the popup menu becomes translucent. The contents

underneath the popup menu can be seen.

Translucent: OFF

Translucent: ON
