5-5
IM 701210-05E
Horizontal and Vertical Axes
5

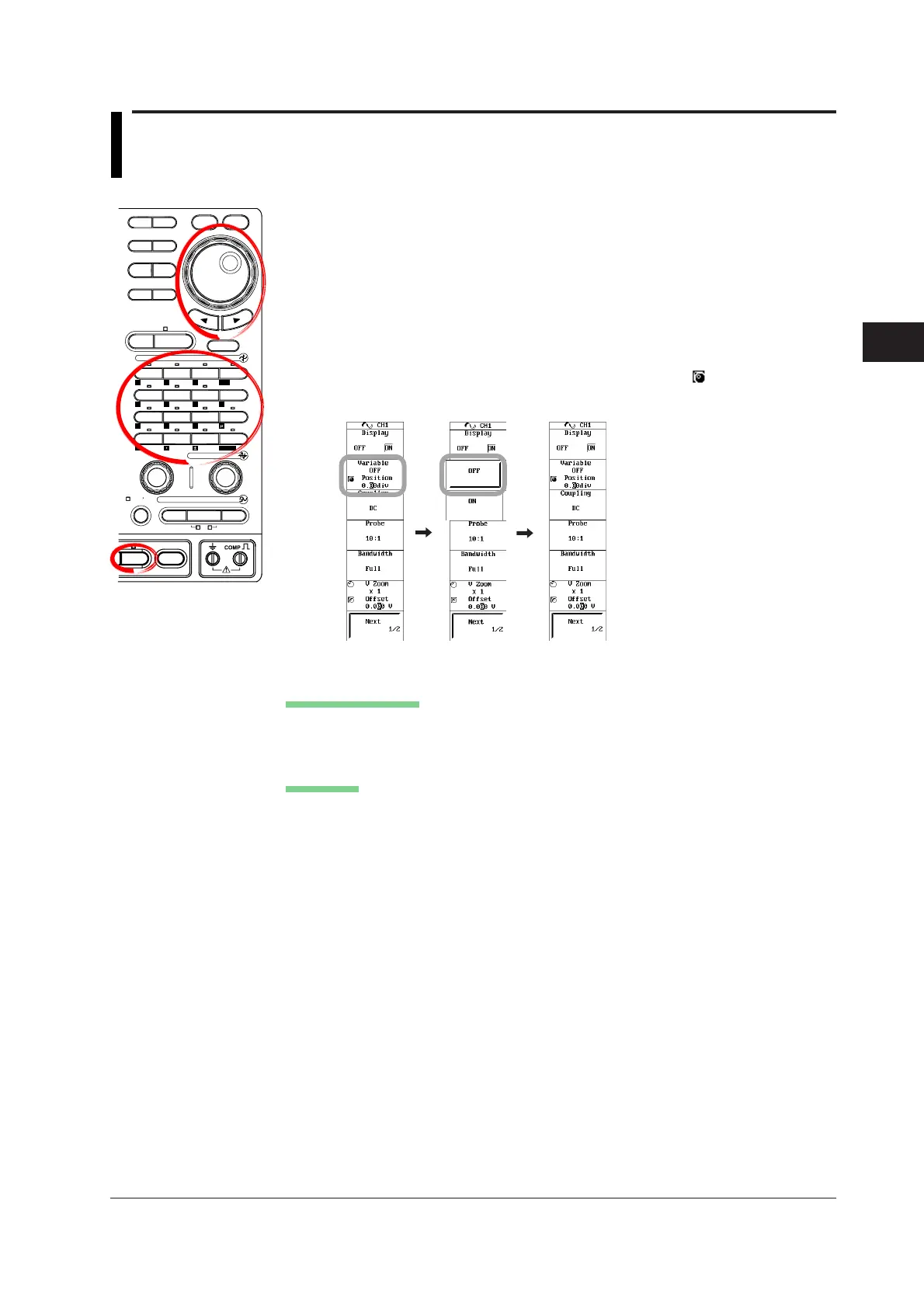

5.4 Setting the Vertical Position of Waveforms
<For a description of this function, refer to page 2-6.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press a key from CH1 to CH16 keys to select the desired channel. Proceed to
step 2.
To select a logic waveform, press SHIFT+CH9 (LOGIC A) or SHIFT+CH10
(LOGIC B). Proceed to step 4.
To select an event waveform, press SHIFT+CH11 (EVENT). Proceed to step 4.
To select a DSP channel (optional), press SHIFT + CH1 (DSP1) through SHIFT
+ CH6 (DSP6).
2. Press the Variable/Position soft key. The Variable selection menu appears.
3. Press the OFF soft key. Check that Position is selected (
).
4. Turn the jog shuttle to set the vertical position.
Explanation
Range of Movement
The vertical position can be moved within a range of ± 5 divisions from the center of the
waveform display frame.
Resolution
0.01 division
To Next Page
