5-6
IM 701210-05E

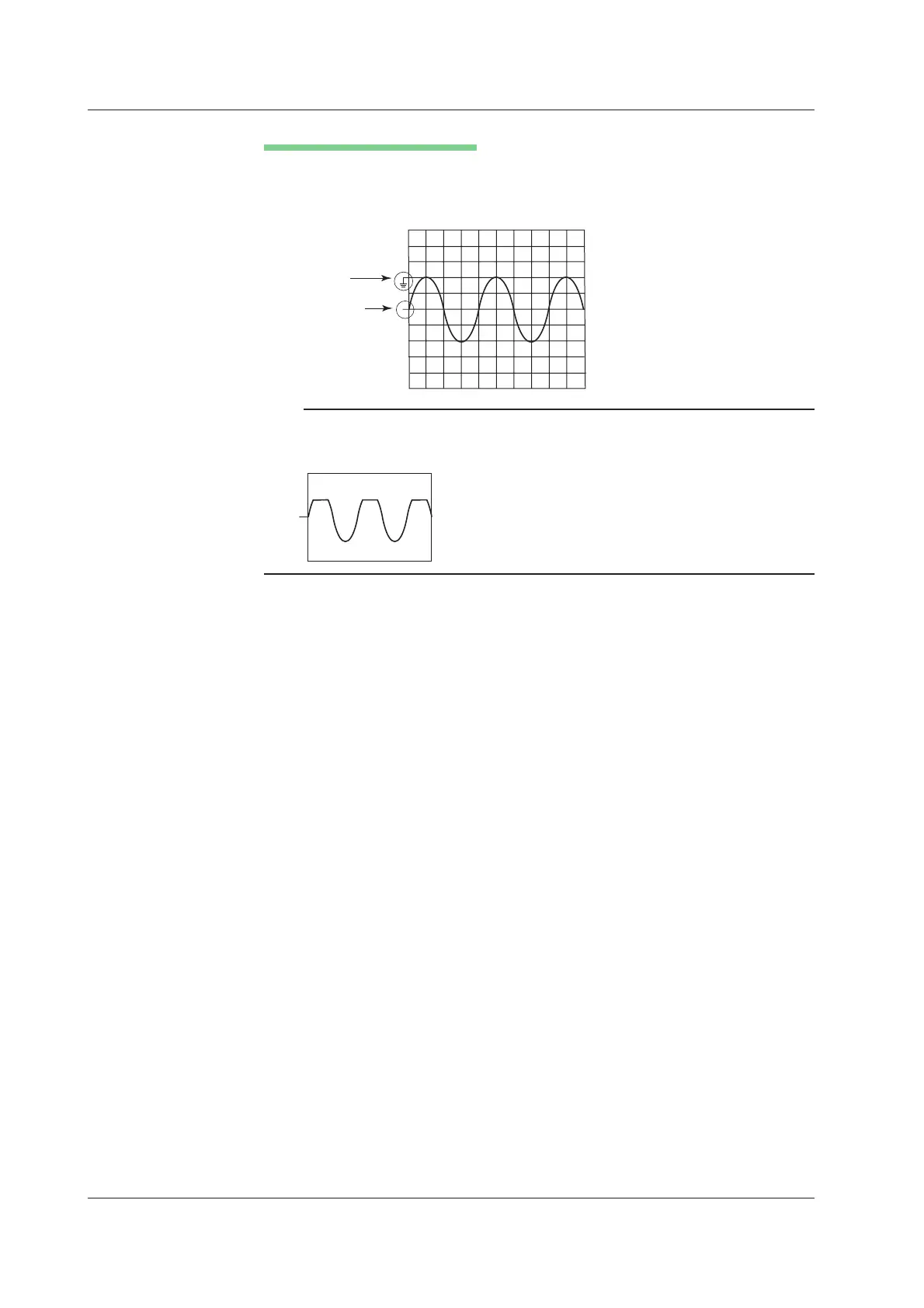

5.4 Setting the Vertical Position of Waveforms
Confirming the Vertical Position
For input waveforms and computed waveforms, the ground level and vertical position are
marked on the left of the waveform display frame.
500 mV/div, Offset: –1 V, Position: 0 div
Ground level
mark
Vertical position
mark
Note
Data that exceeds of the effective display range (see section 2.2) from changing the vertical
position, offset voltage, or upper and lower limits (when Variable is ON) is handled as
overflow data. Overflow data appears chopped as shown in the figure below.
To Next Page
