YOKOGAWA DL750 User Manual

10-14
IM 701210-06E
10.5 User-Defined Computation (Optional)
<For a description of this function, refer to page 2-48.>

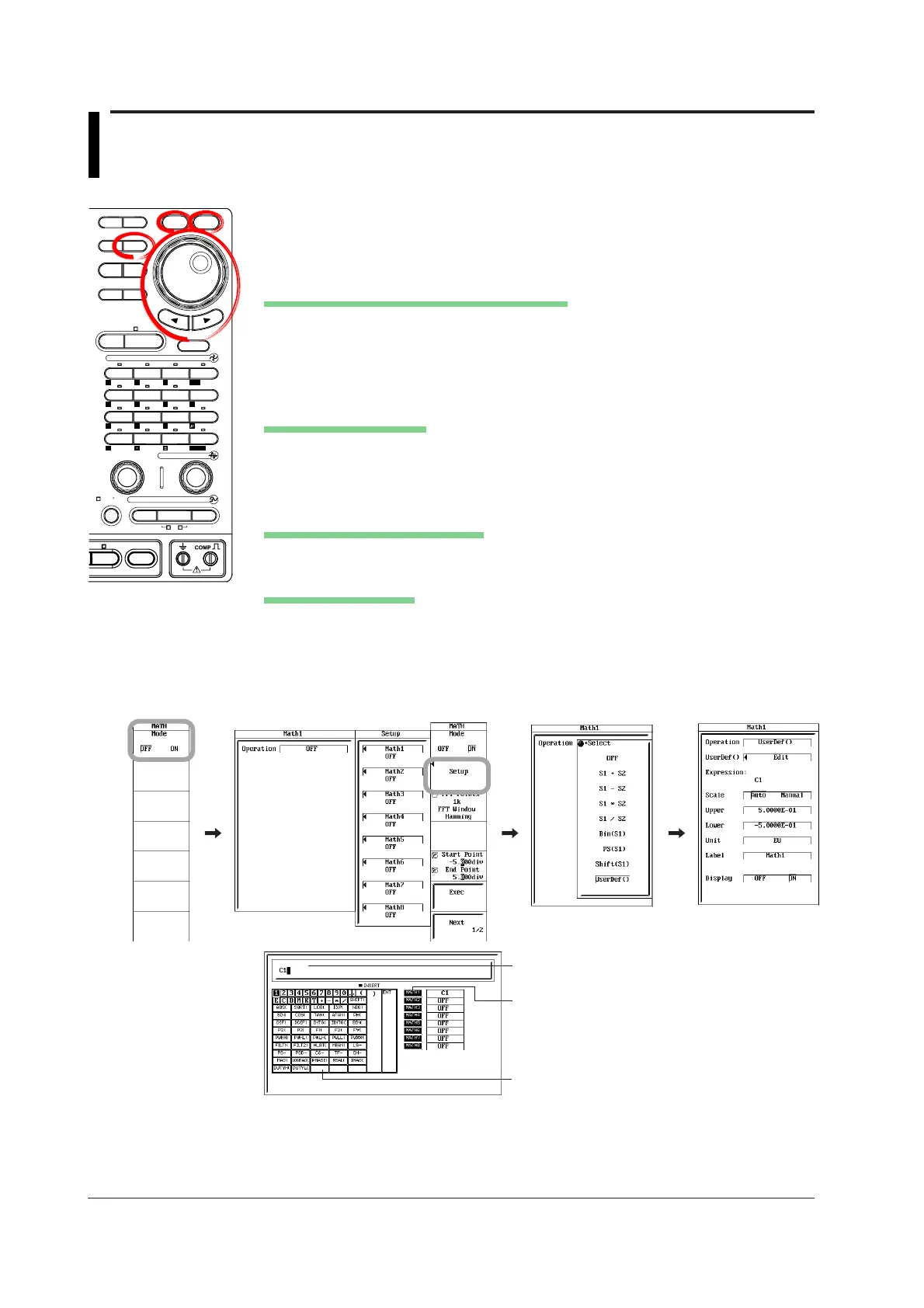

Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press MATH.
2. Press the Mode soft key and select ON to display Math waveforms, OFF to not
display them. If you select ON, proceed to step 3.
Setting the Computation Start and End Points
3. Press the Start Point/End Point soft key to set the jog shuttle control to Start
Point.
4. Turn the jog shuttle to set the computation start point.
5. Likewise, set the End Point.
Setting the Computation
6. Press the Setup soft key. The Math1 to Math8 setup dialog boxes appear.
7. Use the jog shuttle and SELECT to select the Math waveform you wish to set.
A MathX setup dialog box opens.
Setting the Computing Operation
8. Use the jog shuttle and SELECT to set Operation to UserDef( ).
User-Defined Equation
9. Use the jog shuttle and SELECT to select UserDef( ). A menu for setting the
equation appears.
10. Enter the equation using up to 55 characters according to the procedure given in
section 4.2. The head section (19 characters) of the entered equation is
displayed in the Expression box.
Use the jog shuttle and arrow keys
to select the desired operator.
To confirm, select ENT.
Select Math1 to Math8 and press
SELECT to enter the equation
displayed on the right side.
The contents entered from the
soft keyboard are displayed.
