YOKOGAWA DL750 User Manual

17-6
IM 701210-06E

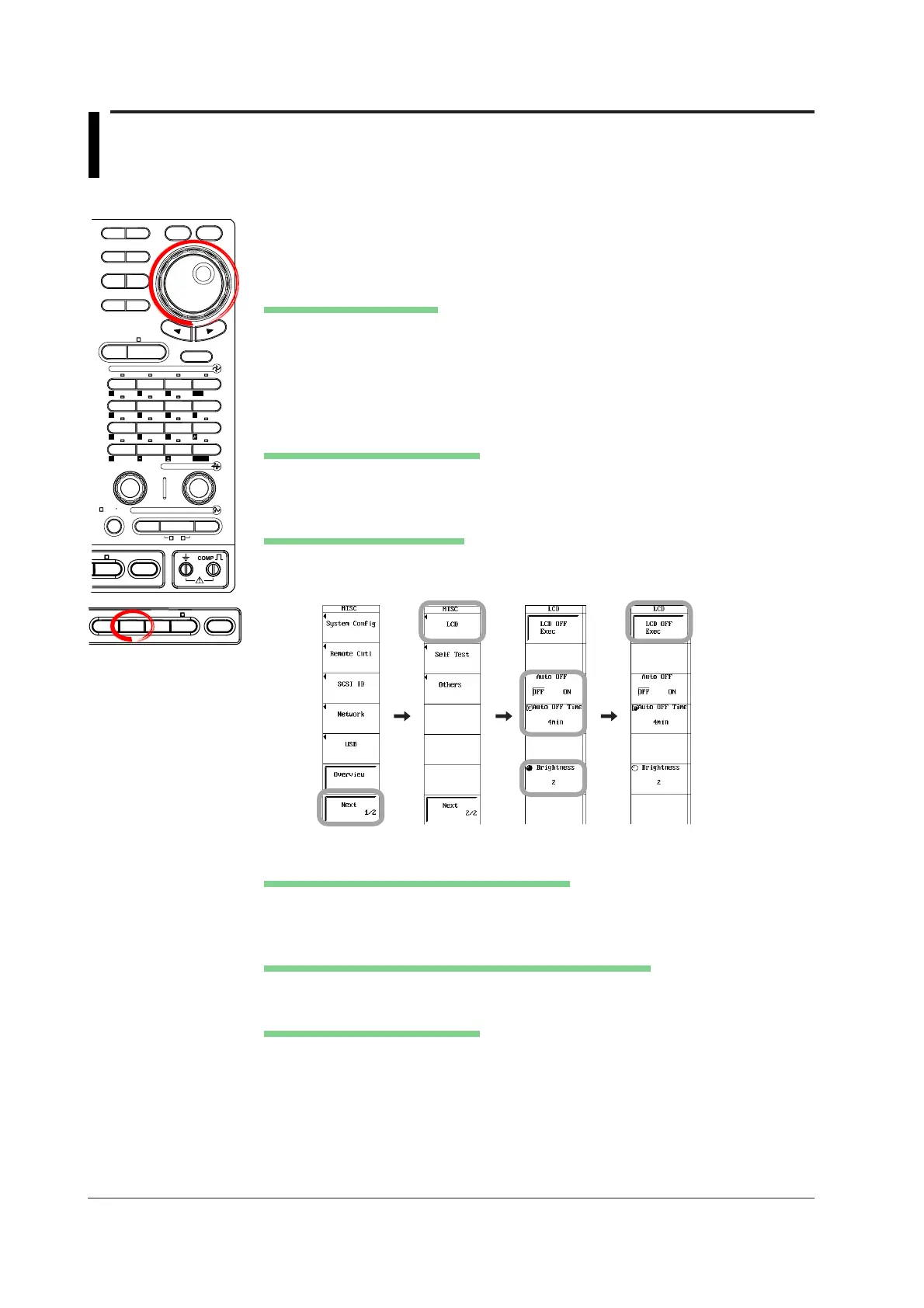

17.5 Turning OFF the Backlight and Setting the
Brightness of the Backlight
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
FILE SHIFT HELP MISC NUM KEY
1. Press MISC.
2. Press the Next 1/2 soft key.
3. Press the LCD soft key. The LCD setup menu appears.
Setting Backlight Auto Off
4. Press the Auto OFF soft key to select ON or OFF.
If you set Auto OFF to ON, proceed to step 5.
5. Press the Auto OFF Time soft key.
6. Turn the jog shuttle to set the time when the backlight will automatically turn
OFF.
Setting the Backlight Brightness
7. Press the Brightness soft key.
8. Turn the jog shuttle to set the backlight brightness.
Turning ON/OFF the Backlight
9. Press the LCD OFF Exec soft key. The backlight turns OFF.
Press any key to return to the measurement screen.
Explanation
Turning ON/OFF the Backlight: LCD OFF Exec
Turns ON/OFF the LCD backlight. If a key is pressed when the backlight is OFF, the
screen returns to the measurement screen.
Setting the Backlight Auto OFF: Auto OFF, Auto OFF Time
The backlight automatically turns OFF, if there is no key operation for the specified time.
Setting the Backlight Brightness
You can change the brightness of the backlight. Set the brightness in the range of 0
(darkest) to 7 (brightest).
The lifetime of the backlight can be prolonged by dimming the backlight or turning OFF
the backlight when it is not necessary.
