YOKOGAWA DL750 User Manual

Part 1:v
IM 701210-05E
Checking the Contents of the Package
Unpack the box and check the contents before operating the instrument. If some of the
contents are not correct, or if any items are missing or damaged, contact the dealer from
whom you purchased them.
DL750/DL750P

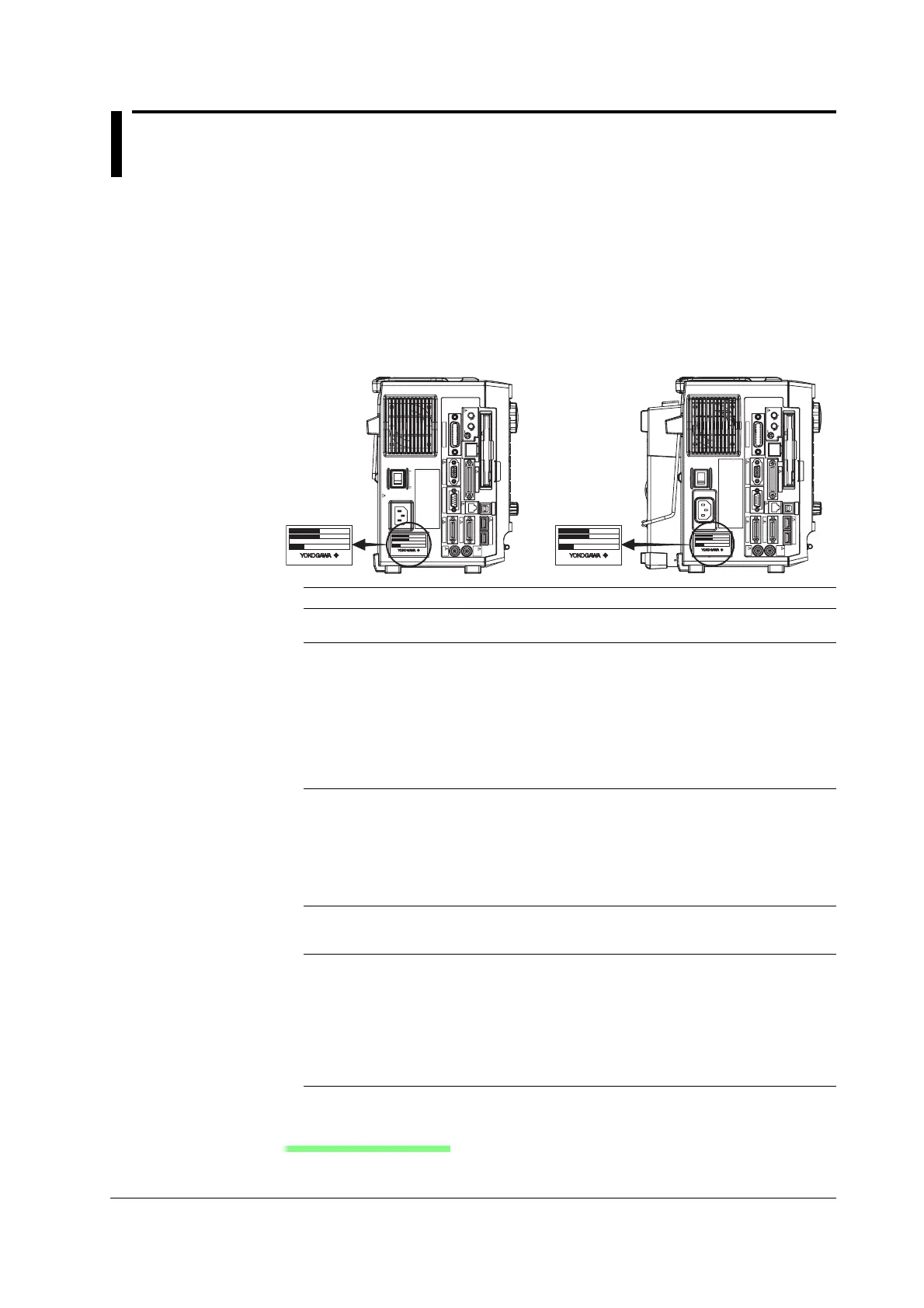

Check that the model name and suffix code given on the name plate on the left side
panel of the CDM Signal Generator match those on your order. When contacting the
dealer from which you purchased the instrument, please give them the instrument number.
MODEL
NO.
SUFFIX
Made in Japan
MODEL
NO.
SUFFIX
Made in Japan
MODEL
NO.
SUFFIX
Made in Japan
DL750 DL750P
MODEL
NO.
SUFFIX
Made in Japan
MODEL Suffix Code Description
701210 (DL750) The input module is not included with the instrument. See
701230 (DL750P) the next page for information on the input module.
Power cord -D UL/CSA Standard power cord (Part No.: A1006WD)
[Maximum rated voltage: 125 V; Maximum rated current: 7A]
-F VDE Standard Power Cord (Part No.: A1009WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
-Q BS Standard Power Cord (Part No.: A1054WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
-R AS Standard Power Cord (Part No.: A1024WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
-H GB Standard Power Cord (Part No.: A1064WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
Default language -HE English
-HJ Japanese
-HC Chinese
-HK Korean
-HG German
-HF French
-HL Italian
-HS Spanish
Built-in media drive -J1 Floppy disk drive
*1
-J2 Zip drive
*1
(DL750 only)
-J3 PC card drive
*1
Options /M1 Memory extension to 10 MW/CH
*2
(250 MW maximum)
/M2 Memory extension to 25 MW/CH
*2
(500 MW maximum)
/M3 Memory extension to 50 MW/CH
*2
(1 GW maximum)
/C8 Internal hard disk 30 GB (FAT32)
/C10 Ethernet interface
/DC 12 VDC Power (10 to 18 VDC) (DL750 only)
/G2 User-defined computation
/G3 DSP channel
/P4 Four probe power outputs
*1 For the built-in media drive on the DL750, select one from three types (two types for the DL750P).
*2 Choose one from /M1, /M2, and /M3.
No. (Instrument Number)
When contacting the dealer from which you purchased the instrument, please give them
the instrument number.
