16.9 Checking the Presence of the Ethernet
Interface and the MAC Address
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
FILE SHIFT HELP MISC NUM KEY

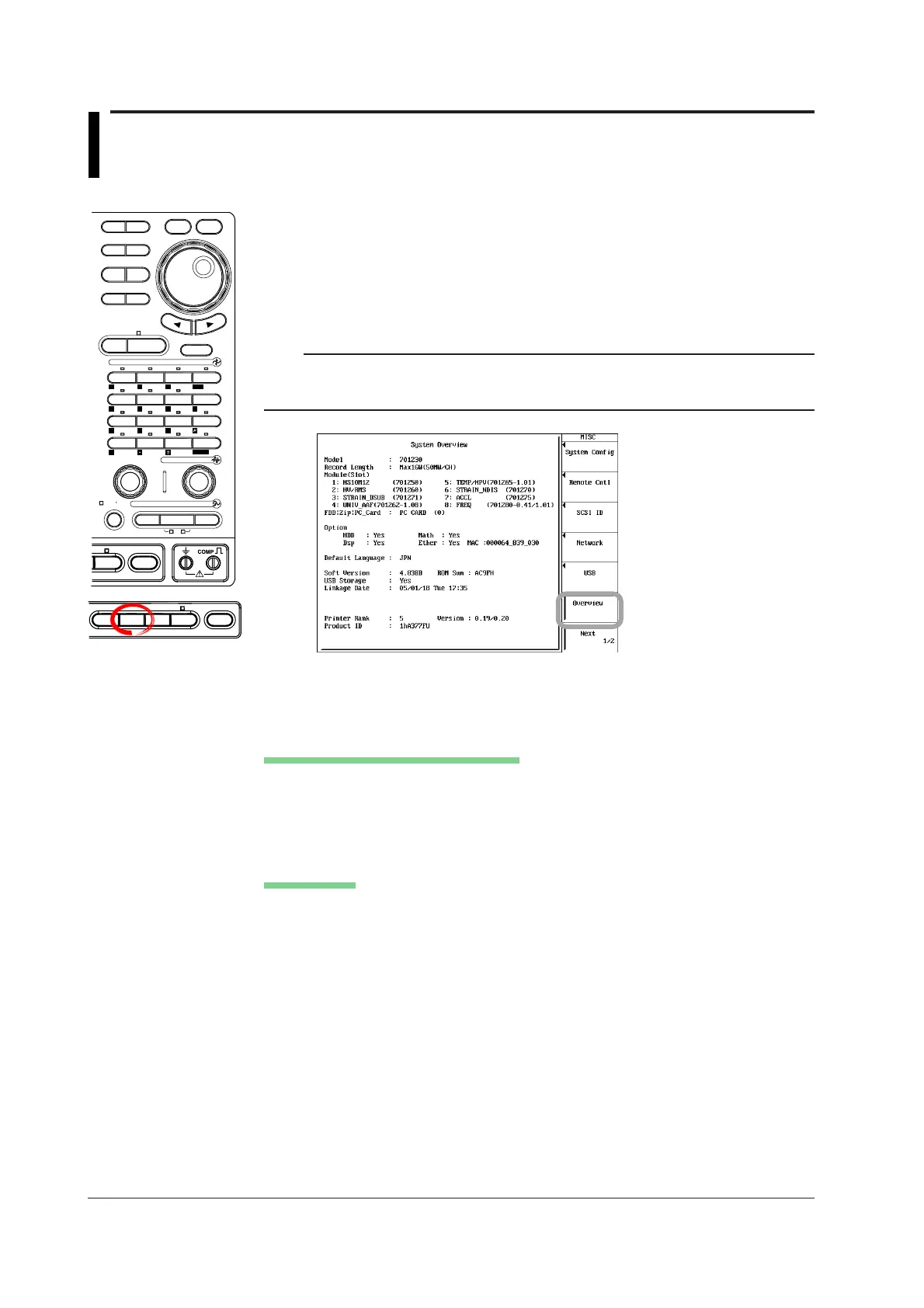

1. Press MISC.
2. Press the Overview soft key. The overview screen appears.
3. When Ether:Yes appears for the Option item in the overview screen, this
indicates that the Ethernet interface is installed.
The number indicated to the right is the MAC address (MAC:000064_839_065
in the following screen).
Note
• Ether: Yes is displayed only if the Ethernet interface option is installed.
• If XXXXXX_XXX_XXX is displayed for the MAC address, contact your nearest
YOKOGAWA dealer.
Explanation
You can check the presence of the Ethernet interface and the MAC address.
MAC address is a unique address that is pre-assigned to the DL750/DL750P.
The Presence of the Ethernet Interface
The presence of the Ethernet interface is displayed under “Ether” on the overview
screen.
• Ether:Yes: The Ethernet interface is installed.
• Ether:No: The Ethernet interface is not installed.
MAC Address
MAC address is a unique address that is pre-assigned to the DL750/DL750P. It is
necessary for transmitting data between nodes.
