YOKOGAWA DL750 User Manual

8-18
IM 701210-05E

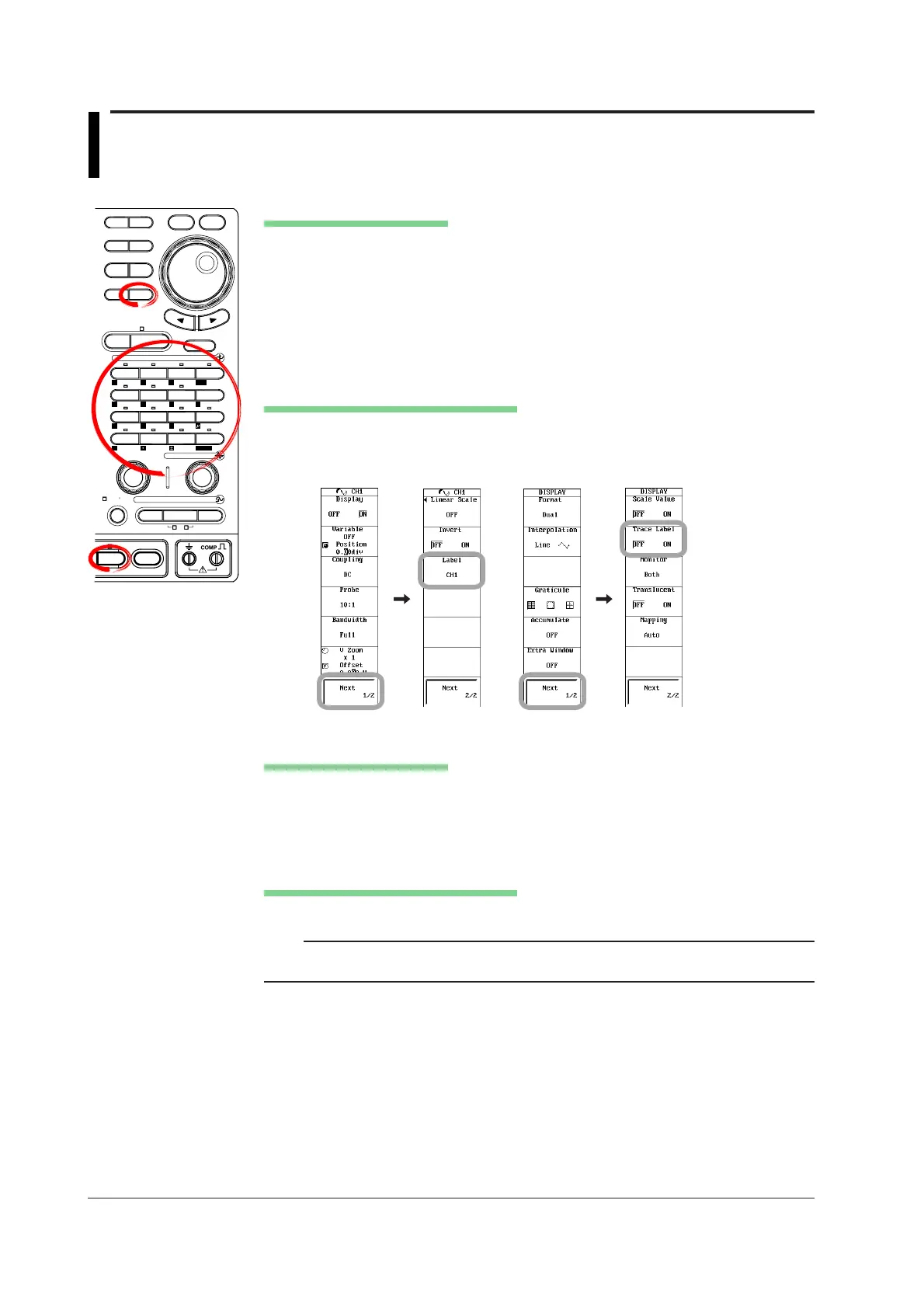

8.10 Setting Waveform Labels
<For a description of this function, refer to page 2-38.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
Setting the Waveform Label
1. Press CH1 to CH16, SHIFT+CH9 (LOGIC A), SHIFT+CH10 (LOGIC B), or
SHIFT+CH11 (EVENT) to select the desired channel. If you select a channel
between CH1 and CH16, proceed to step 2; If you select LOGIC A, LOGIC B, or
EVENT, proceed to step 3.
2. Press the Next 1/2 soft key.
3. Press the Label soft key to display a keyboard, and enter the waveform label
according to the procedure given in section 4.2.
Turning ON/OFF the Waveform Labels
4. Press DISPLAY.
5. Press the Next 1/2 soft key.
6. Press the Trace Label soft key to select ON or OFF.
Explanation
Setting the Waveform Label
You can arbitrary set the waveform label of each channel using up to eight characters.
The labels are applied to waveform labels, scale values, numeric display, and cursor
measurement values. (However, for cursor measurement, only the first 5 characters are
displayed.)
Turning ON/OFF the Waveform Labels
You can select whether to display labels corresponding to the displayed waveforms.
Note
If the waveform display area is small due to the display format setting or zoom format,
waveform labels may not be displayed.
