3.2 Installing the Instrument
Installation Conditions
Install the instrument in a place that meets the following conditions.
Flat, Even Surface
Set the instrument in the proper direction (see page 3-4) and in a level and stable place.
Note that the instrument can be tilted on the stand if the instrument is set with the rear panel
facing down. If placed in an uneven or unstable place, printing quality may deteriorate.
Well-Ventilated Location
Vent holes are situated on the bottom side of the instrument. In addition, vent holes for
the cooling fans are also situated in the left side and the bottom. To prevent internal

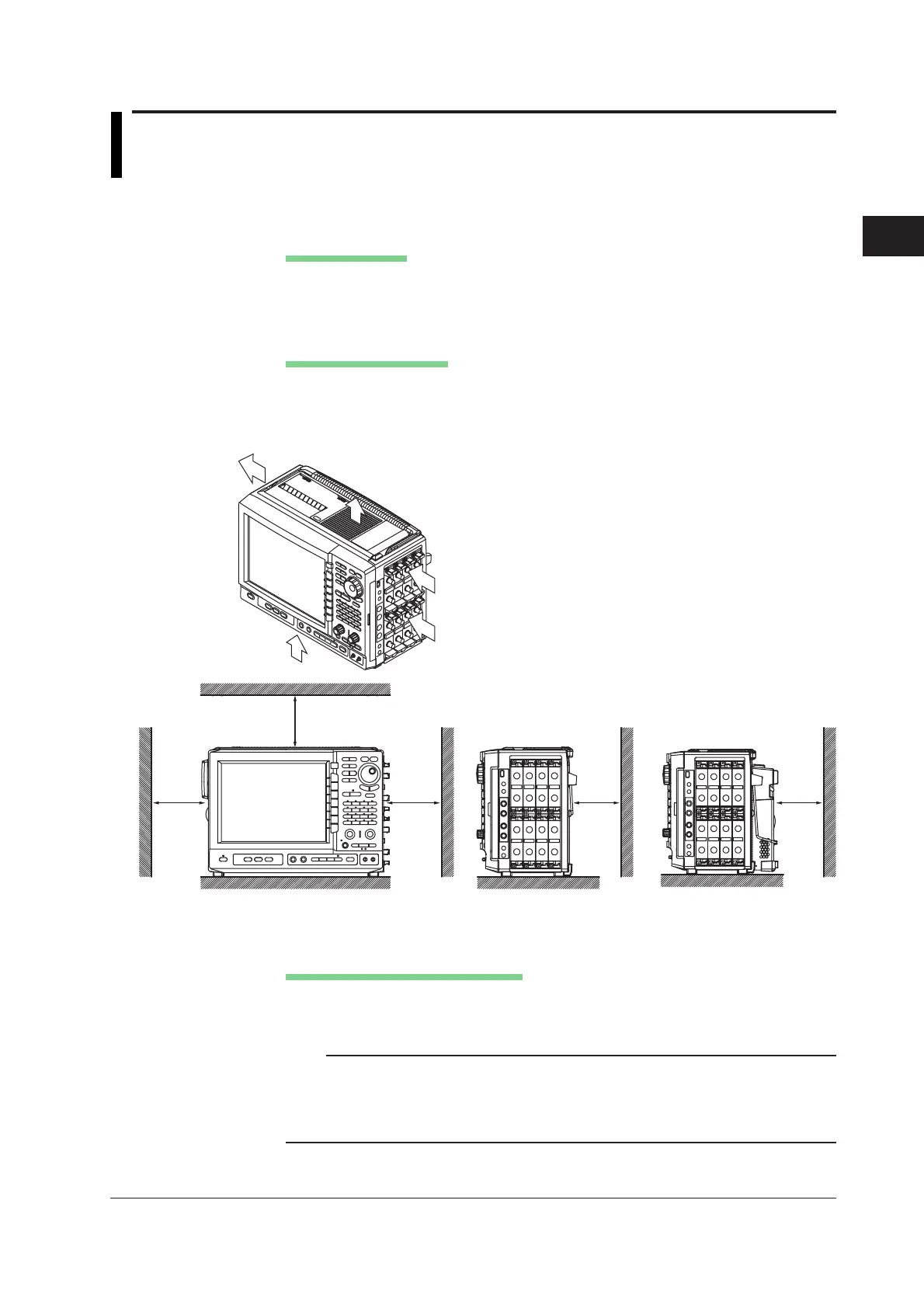

overheating, allow for enough space around the instrument (see the figure below) and do
not block the vent and inlet holes.
10 cm or more
10 cm or
more
10 cm or
more
5 cm or
more
5 cm or
more
DL750
DL750P
When connecting the various cables or when opening or closing the built-in printer cover,
take extra space in addition to the space indicated above for the operation.
Ambient Temperature and Humidity
Ambient temperature: 5 to 40°C
Ambient humidity: 20 to 85% RH (when not using the printer)
}
No condensation
35 to 85% RH (when using the printer)
Note
• To ensure high measurement accuracy, operate the instrument in the 23 ± 5°C
temperature range and 55 ± 10% RH.
• Condensation may occur if the instrument is moved to another place where the ambient
temperature is higher, or if the temperature changes rapidly. In such cases, allow the
instrument adjust to the new environment for at least an hour before using the instrument.
