16-1
IM 701210-06E
Ethernet Interface (Optional)
16
Chapter 16 Ethernet Interface (Optional)
16.1 Connecting the DL750/DL750P to the Network
<For a description of this function, refer to page 2-59.>
Ethernet Interface Specifications
A 100BASE-TX port is provided on the left side panel of the DL750/DL750P.
Item Specifications
Number of communication ports 1
Electrical and mechanical specifications Conforms to IEEE802.3
Transmission system Ethernet (100BASE-TX/10BASE-T)
Transmission rate 100 Mbps max.
Communication protocol TCP/IP
Supported services FTP server, FTP client (network drive), LPR client
(network printer), SMTP client (mail transmission),
DHCP, DNS, and Web server
Connector type RJ-45 connector

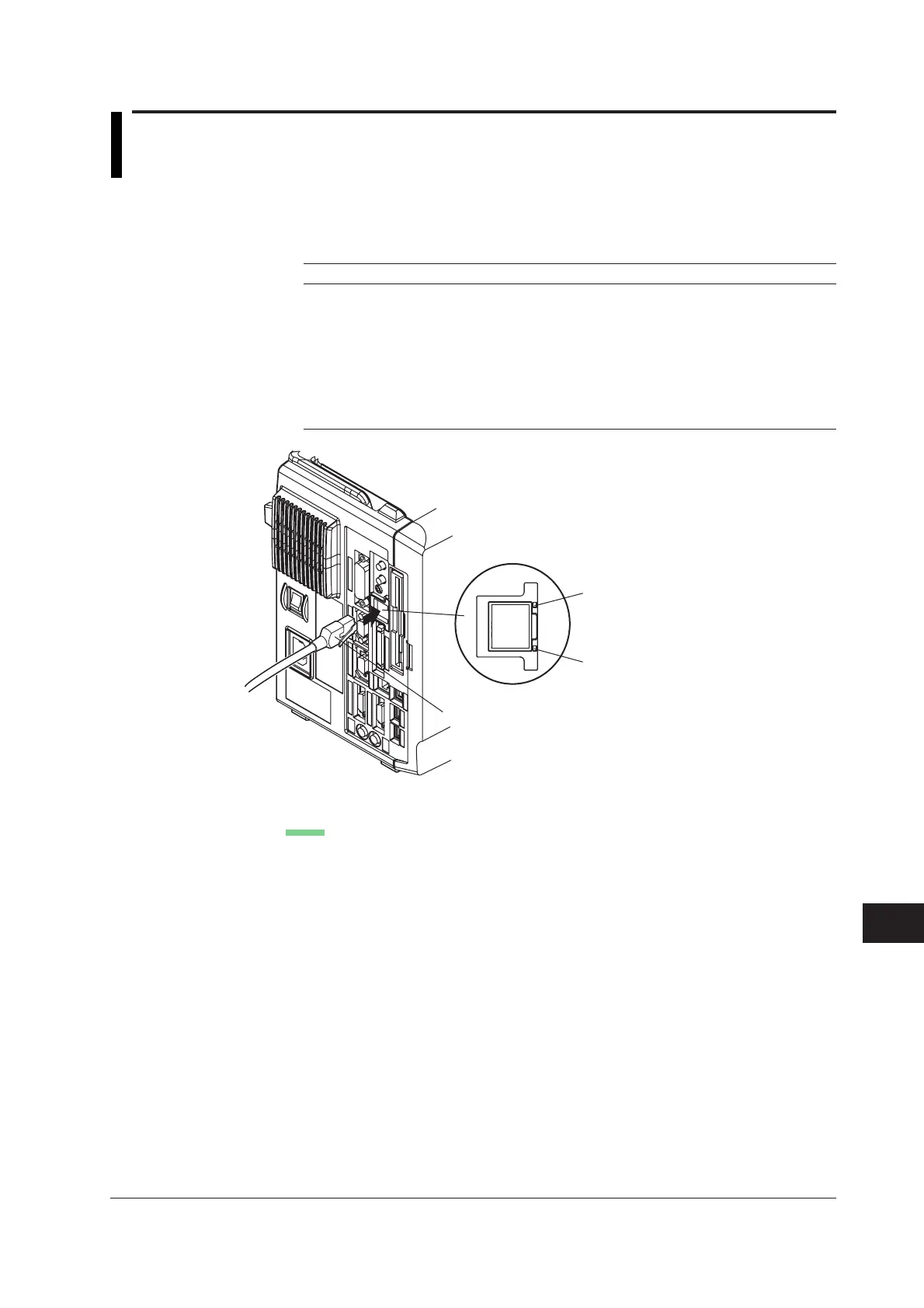

ETHERNET 100BASE-TX port
RJ-45 modular jack
100BASE-TX
LINK
ACT
ACT LED
Blinks when packet transmission is being
carried out normally.
LINK LED
Illuminates when the link between the
port on the DL750/DL750P and the
connected device is established and
communication is mutually possible.
Items Necessary for Connection
Cable
Be sure to use one the following cables for connection.
• UTP (Unshielded Twisted-Pair) cable (category 5 or better)
• STP (Shielded Twisted-Pair) cable (category 5 or better)
To Next Page
