5-9
IM 701210-05E
Horizontal and Vertical Axes
5

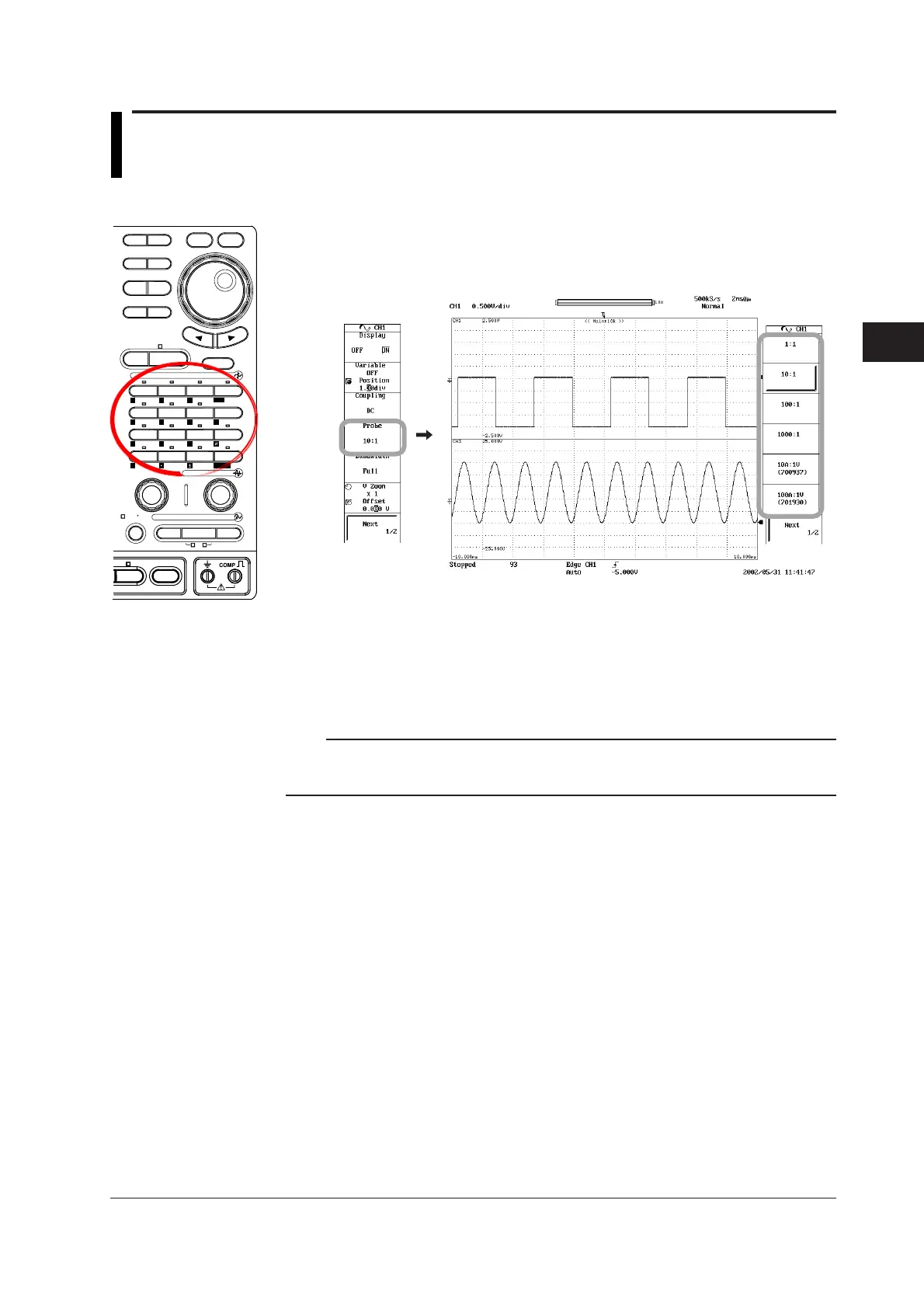

5.6 Setting the Probe Type
<For a description of this function, refer to page 2-9.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press a key from CH1 to CH16 keys to select the desired channel.
2. Press the Probe soft key. The probe selection menu appears.
3. Press the soft key corresponding to the desired type (attenuation).
Explanation
Select the appropriate probe type for each channel from the following:
1:1, 10:1, 100:1, 1000:1, 10 A:1 V, and 100 A:1 V
1:1 to 1000:1 represent the probe attenuation for voltage probes.
10 A:1 V and 100 A:1 V represent the output voltage rate of current probes.
Note
If the probe type is not set correctly, the voltage and scale values of the input signals will not
be displayed correctly. For example, if you set the attenuation to 1:1 when using a 10:1
probe, the displayed value for the waveform amplitude will be 1/10 the true value.
To Next Page
