17-4
IM 701210-06E

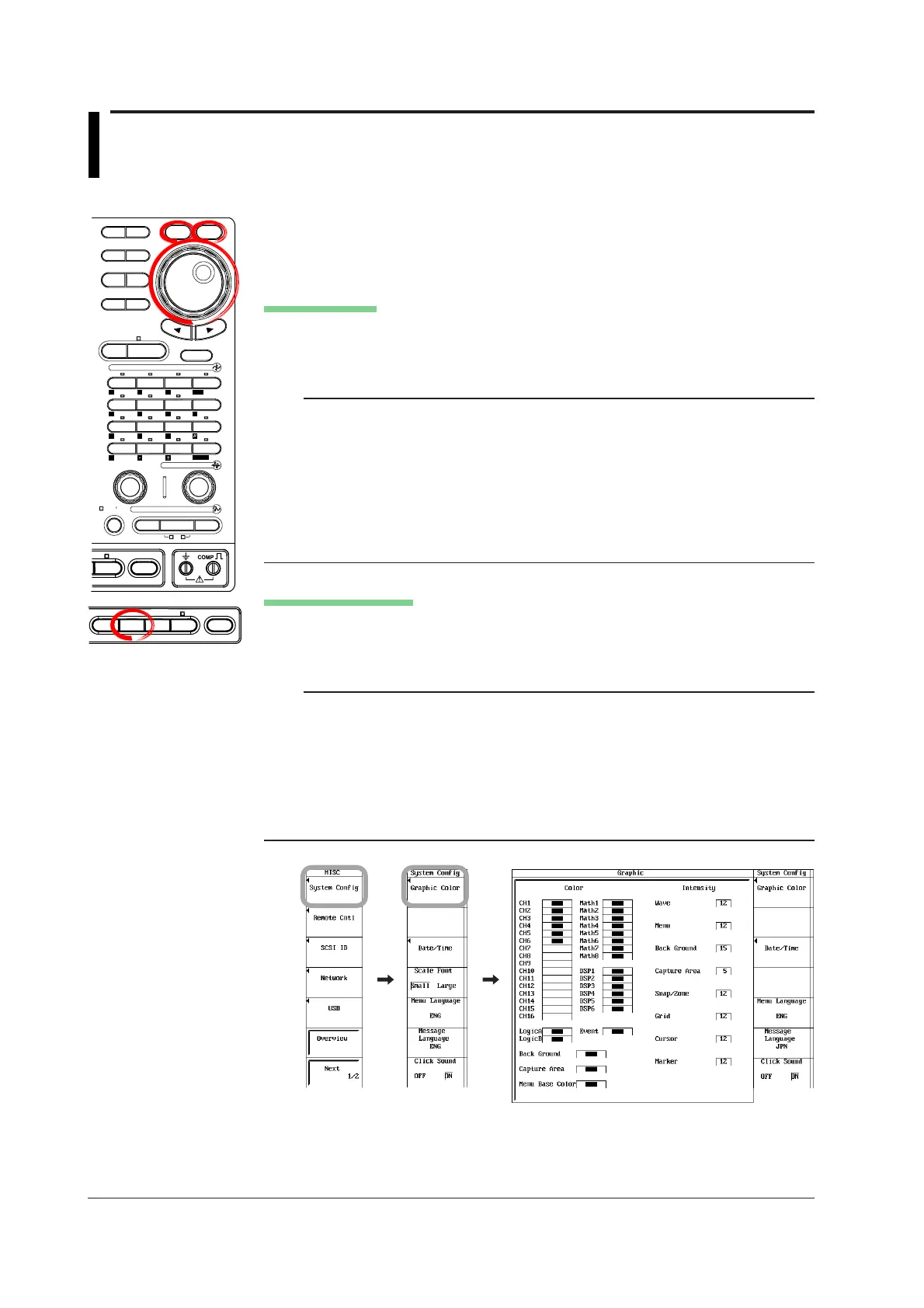

17.4 Setting the Screen Color and Brightness
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
FILE
SHIFT
HELP
MISC
NUM KEY
1. Press MISC.
2. Press the System Config soft key.
3. Press the Graphic Color soft key. The Graphic setup menu appears.
Setting the Color
4. Use the jog shuttle and SELECT to select the item you wish to change the
color. The color selection menu appears.
5. Use the jog shuttle and SELECT to select the color.
Note
The items that you can change the color are as follows:
• CH1 to CH16
• DSP1 to DSP6 (optional)
• Math waveforms
• Logic A, Logic B
• Event
• Background
• Capture Area (sub waveform window of the dual capture function)
• Menu Base Color (menu screen)
In addition, the selectable colors are limited depending on the item.
Setting the Brightness
6. Use the jog shuttle and SELECT to select the item you wish to change the
brightness.
7. Turn the jog shuttle to set the brightness in the range of 1 to 15.
Note
The items that you can change the brightness are as follows:
• Wave: Waveforms
• Menu
• Back Ground
• Capture Area: Sub waveform window of the dual capture function
• Snap/Zone: Snapshot waveforms/zones
• Grid
• Cursor
• Marker
DSP1 to DSP6 are optional.
