YOKOGAWA DL750 User Manual

11-55
IM 701210-06E
Waveform Analysis/Search
11
11.10 Using the GO/NO-GO Determination I/O
Function
GO/NO-GO determination can be performed by applying an external signal to the GO/
NO-GO I/O terminal of the DL750/DL750P. The determination result can also be output
externally from the terminal.

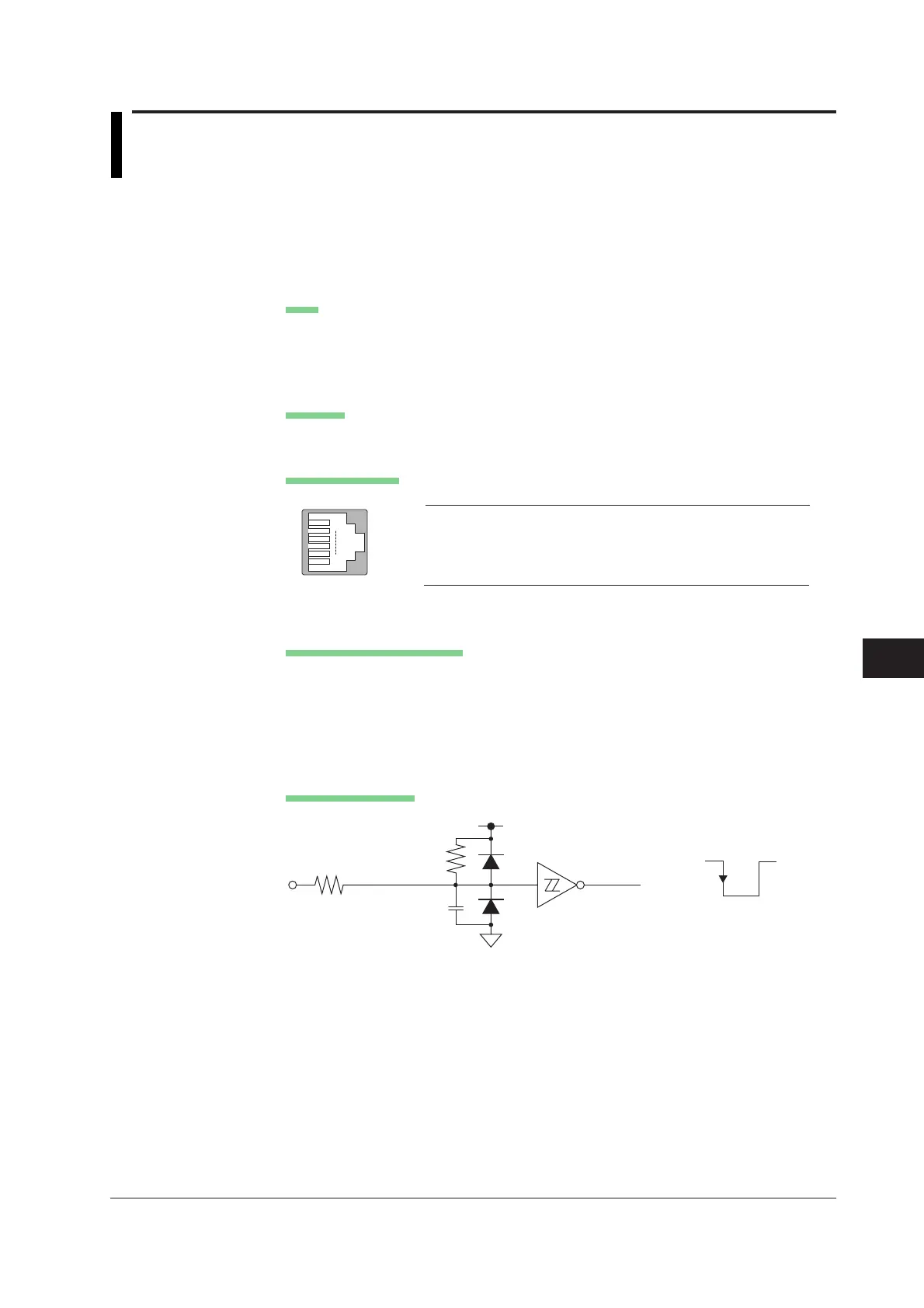

GO/NO-GO Determination I/O Terminal Connector
Type
Modular jack (RJ-11). Use the optional accessory 366973 (sold separately) for the
cable. If you are using a commercially sold cable (4 contact modular cable for telephone
circuits), wire the pins according to the following figure.
I/O Level
Within 0 to 5 V, threshold level: TTL
Pin Arrangement
6
1
1
Pin No. Signal Name
2
3
4
5
6
NC (no connection)
START IN
GO OUT
GO/NO-GO
NOGO OUT
IN
Connector on the DL
OUT
OUT
Start at low
Active low
Active low
GND
SPEAKER
Input Signal
START IN (Negative Logic)
This signal is used when performing GO/NO-GO determination by synchronizing to an
external input signal. The signal is valid only when “Remote” is ON. If “Remote” is OFF,
GO/NO-GO determination is performed regardless of the external signal input (the GO/
NO-GO determination result is output).
See below for the timing chart.
Signal Input Circuit
START IN
5 V
120 Ω
LCX14 or equivalent
4.7 kΩ
100 pF
HIGH
LOW
START
