YOKOGAWA DL750 User Manual

16-8
IM 701210-06E

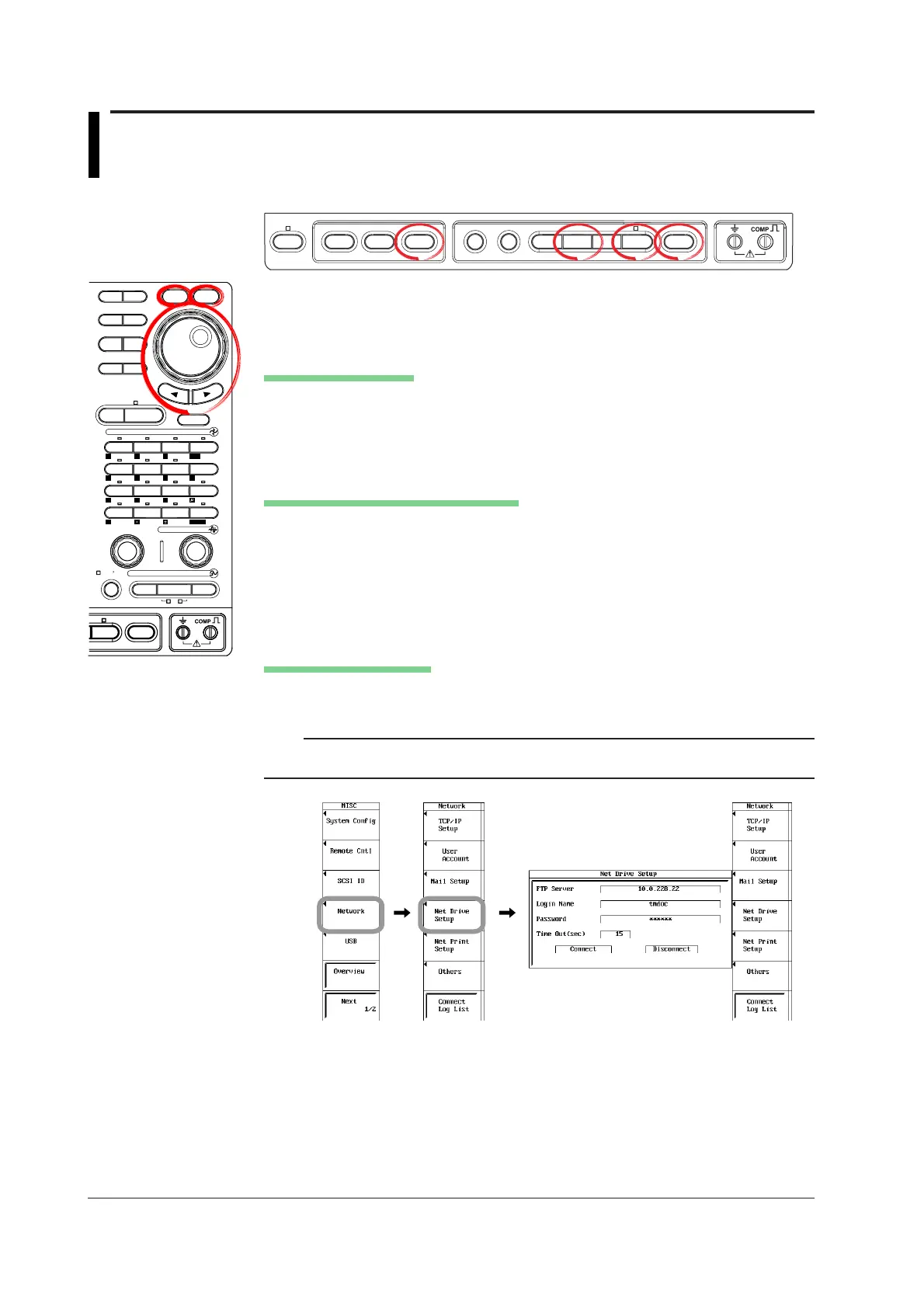

16.3 Saving/Loading Data to a Network Drive (FTP
Client Function)
<For a description of this function, refer to page 2-59.>
Procedure
FILE SHIFT HELP MISC NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
SNAPSHOT CLEAR TRACE
MENU MENU
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press MISC.
2. Press the Network soft key.
3. Press the Net Drive Setup soft key. The Net Drive setup menu appears.
Setting the FTP Server
4. Use the jog shuttle and SELECT to select FTP Server.
5. Enter the IP address of the FTP server according to the procedure given in
section 4.2. When using DNS (section 16.2), you can specify the address by
name.
Setting the Login Name and Password
6. Use the jog shuttle and SELECT to select Login Name.
7. Enter the login name using up to 15 characters according to the procedure given
in section 4.2.
8. Use the jog shuttle and SELECT to select Password.
9. Enter the password corresponding to the login name using up to 15 characters
according to the procedure given in section 4.2.
Setting the Timeout Time
10. Use the jog shuttle and SELECT to set Time Out. The selectable range is 0 to
3600 (s).
Note
• For keyboard (soft keyboard) operation, see section 4.2, “Entering Values and Strings.”
• If Login Name is set to anonymous, you do not have to enter the password.
