16-9
IM 701210-06E
Ethernet Interface (Optional)
16

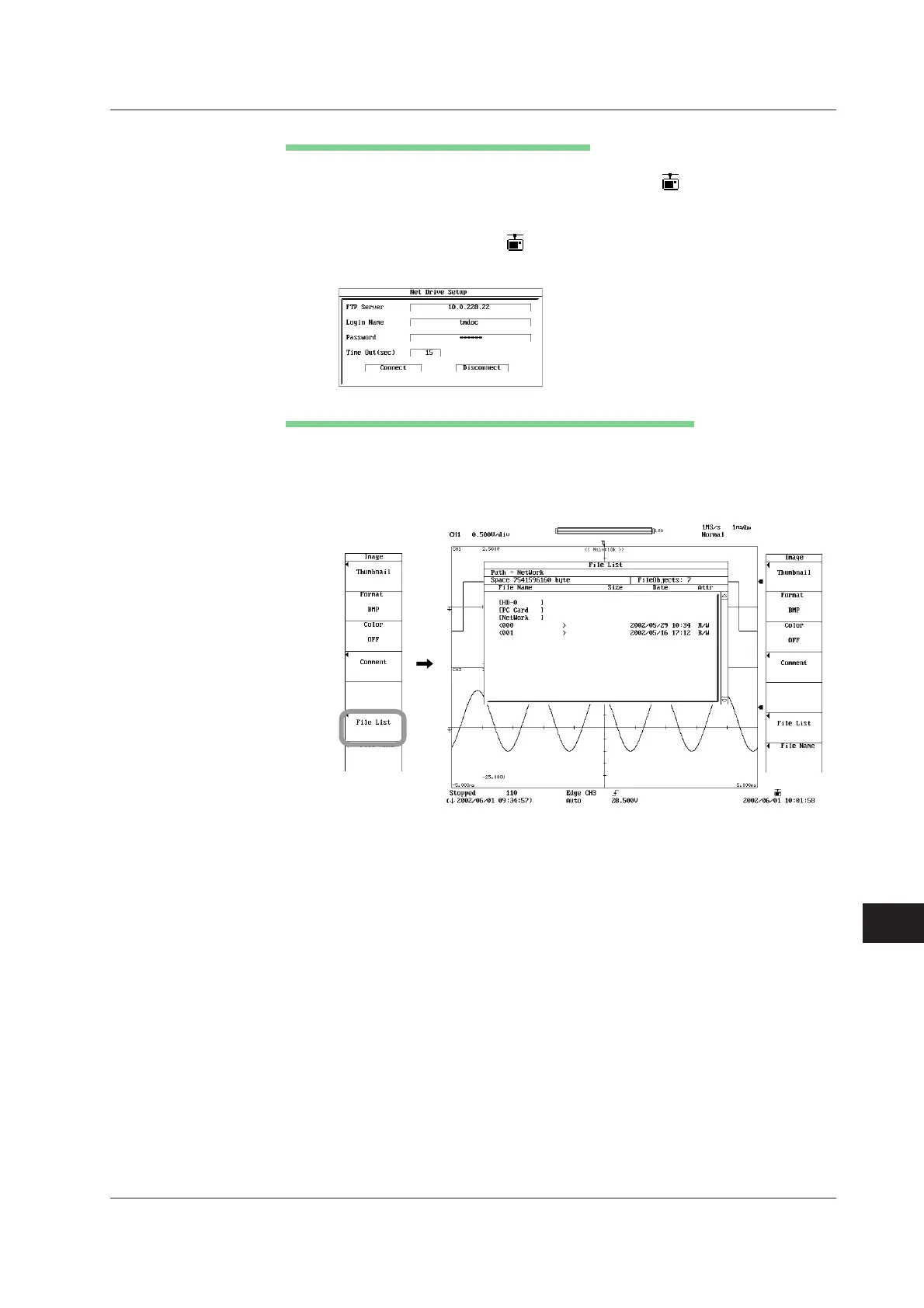

16.3 Saving/Loading Screen Images, Waveforms, and Setup Data to a Network Drive (FTP Client Function)
Connecting/Disconnecting to a Network Drive
11. Use the jog shuttle and SELECT to select Connect. Connection is made to the
network drive. When the connection is established, is displayed at the upper
right corner of the screen.
Use the jog shuttle to move the cursor to Disconnect, then press SELECT to
close the connection. The
displayed at the upper right corner of the screen
disappears.
Saving/Loading the Screen Image, Waveform, and Setup Data
• Saving/Loading the screen image data
12. Press SHIFT+IMAGE SAVE.
13. Press the File List soft key. The File List window appears.
14. Use the jog shuttle to select [Network] in the File List window.
15. The succeeding procedure is the same as the procedure described in section
13.11, “Saving Screen Image Data” and section 13.12, “Displaying Thumbnails
of the Saved Screen Image Data.” To save screen image data by attaching a
comment, see section 13.19, “Using the Voice Comment Function.”
