9-17
IM 701210-05E
Recording in Recorder Mode (Realtime Recording) (Only on the DL750P)
9

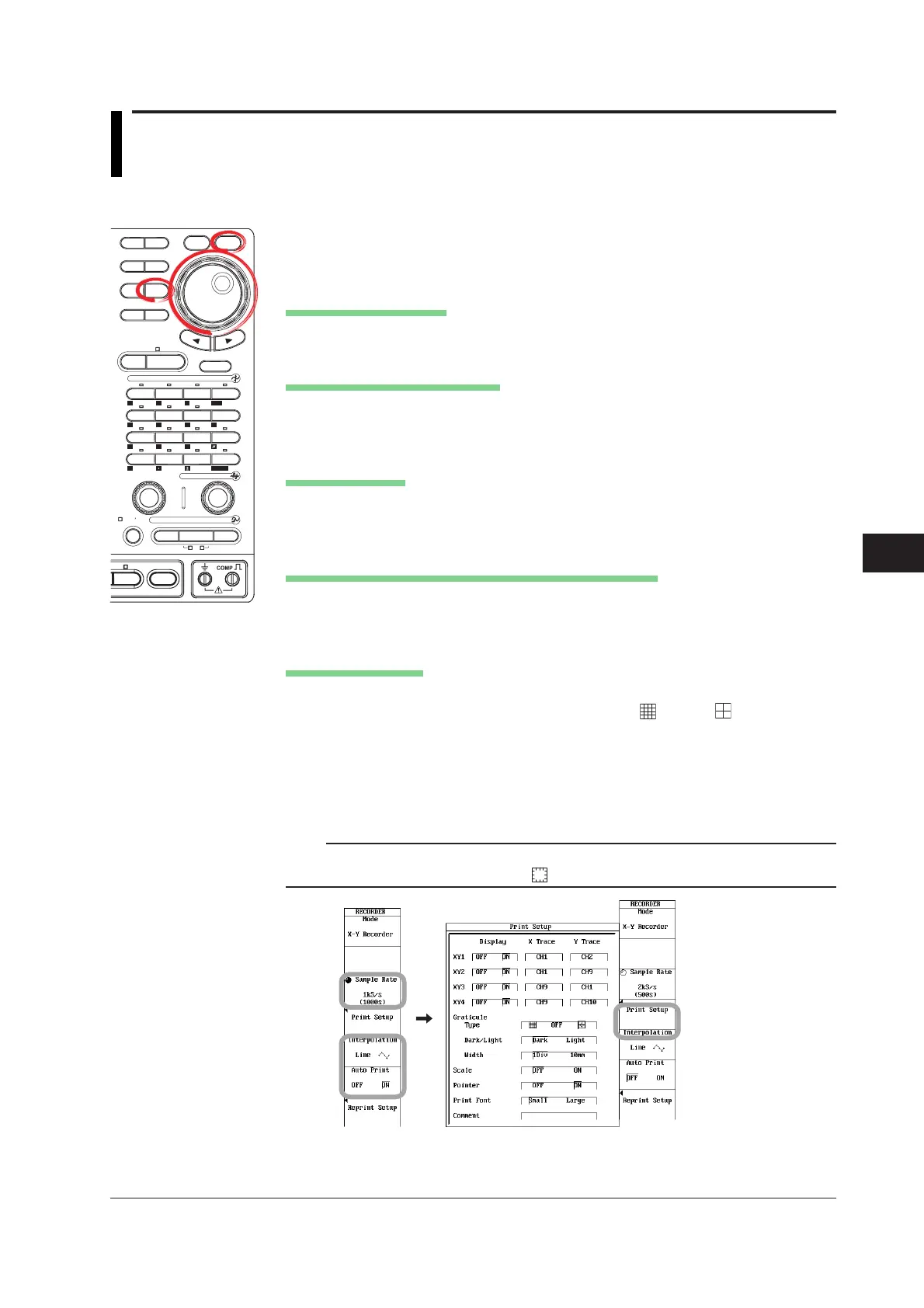

9.7 Recording X-Y Waveforms (X-Y Waveform
Recording)
<For a description of this function, refer to page 2-46.>
Procedure
Before carrying out the procedure below, set the recorder mode as follows according to
the procedures in section 9.2.
Recorder mode: X-Y Recorder
Setting the Sample Rate
1. Press the Sample Rate soft key.
2. Use the jog shuttle to set the sample rate in the range of 5 S/s to 5 kS/s.
Setting the Interpolation Method
3. Press the Interpolation soft key to display the interpolation selection menu.
4. Press the soft key corresponding to the desired interpolation method, OFF or
Line.
Setting Auto Print
5. Use the jog shuttle and SELECT to set Auto Print to ON or OFF. If ON is
selected, X-Y waveform recording on the built-in printer starts automatically
when waveform acquisition stops.
Selecting the X-Y Waveform to Be Recorded (Displayed)
6. Press the Print Setup soft key to display the print setup dialog box.
7. Use the jog shuttle and SELECT to select the X-Y waveform to be recorded
(displayed) in the range of XY1 to XY4.
Setting the Graticule
Setting the Graticule
8. Use the jog shuttle and SELECT to set Type to
, OFF, or .
Setting Dark/Light
9. Use the jog shuttle and SELECT to set Dark/Light to Light or Dark.
Setting the Width of the Vertical Scale
10. Use the jog shuttle and SELECT to set Width to 1div or 10mm.
Note
The graticule setting is linked with the DISPLAY menu > Graticule setting. However, if OFF is
selected, the DISPLAY menu is set to .
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
RECORDER
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
DUAL
CAPTURE
To Next Page
