16-20
IM 701210-06E
16.6 Accessing the DL750/DL750P from a PC or
Workstation (FTP Server Function)
<For a description of this function, refer to page 2-60.>
Procedure
This section describes the FTP server function when a general FTP client software (such
as WS_FTP or FFFTP) is used. To use FTP through the Web browser, see section
16.7.
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
FILE
SHIFT
HELP
MISC
NUM KEY

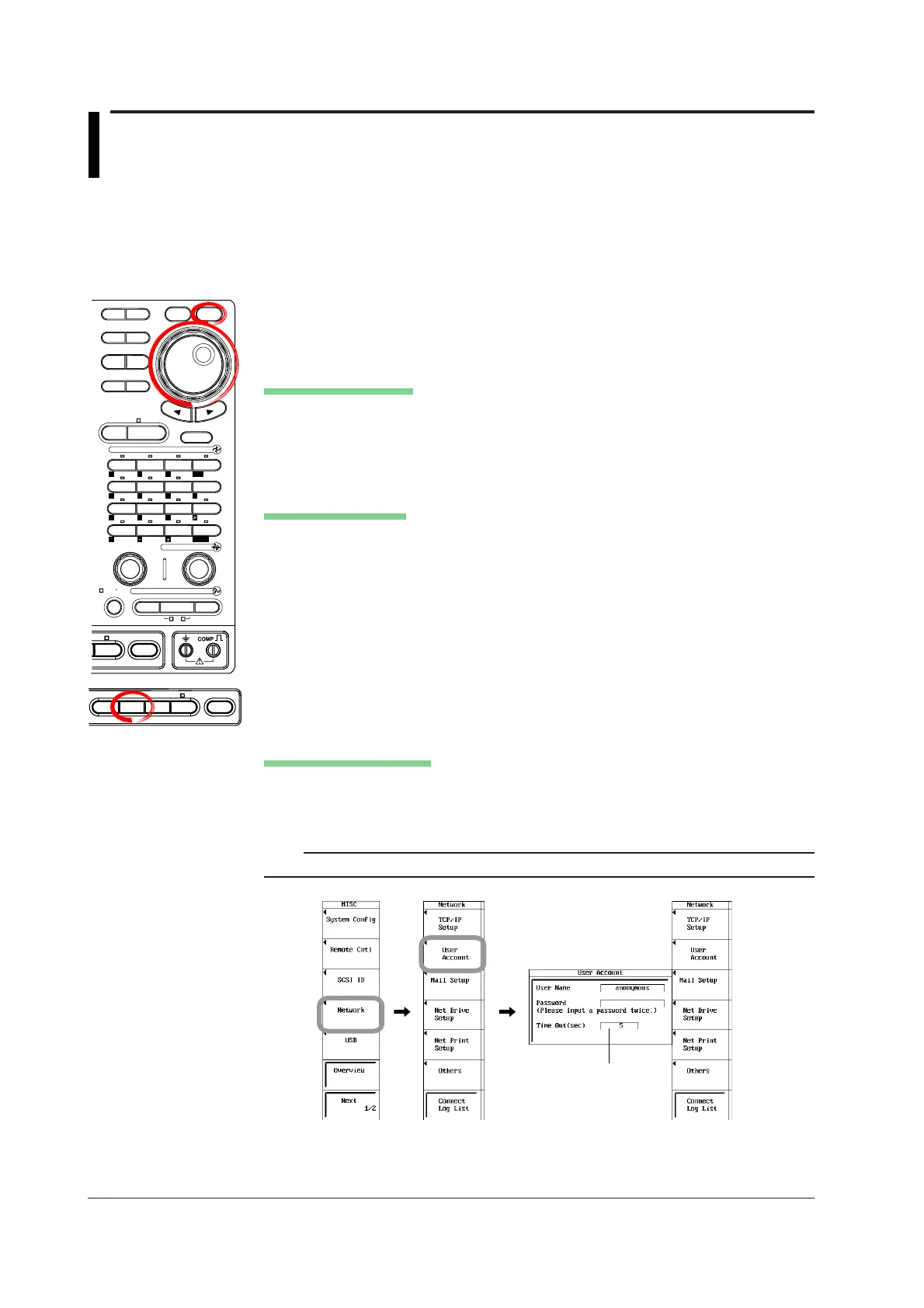

1. Press MISC.
2. Press the Network soft key.
3. Press the User Account soft key. The User Account setup menu appears.
Setting the User Name
4. Use the jog shuttle and SELECT to select User Name.
5. Enter the user name according to the procedure given in section 4.2. Specify
anonymous if you wish to allow access to all users. To restrict access, enter the
user name using up to 15 characters.
Setting the Password
6. Use the jog shuttle and SELECT to select Password.
7. Enter the password using up to 15 characters according to the procedure given
in section 4.2.
If you select the ENT key on the soft keyboard or press the ENT soft key, the
entered password (appears as *****) is cleared from the soft keyboard screen.
Enter the password again for confirmation. The password (appears as *****) is
confirmed and displayed in the Password column of the User Account setup
menu. If the password entered the second time is different from the first, the
entered password is cleared from the soft keyboard screen.
If the user name is set to anonymous, you do not have to enter the password.
Setting the Timeout Time
8. Use the jog shuttle and SELECT to set Time Out.
The connection to the network is automatically closed if there is no access to the
DL750/DL750P for the specified time.
Note
For keyboard (soft keyboard) operation, see section 4.2, “Entering Values and Strings.”
600 s is recommended
when using the FTP
server function through
a dedicated FTP client.
