5-25

IM 701210-05E

Horizontal and Vertical Axes

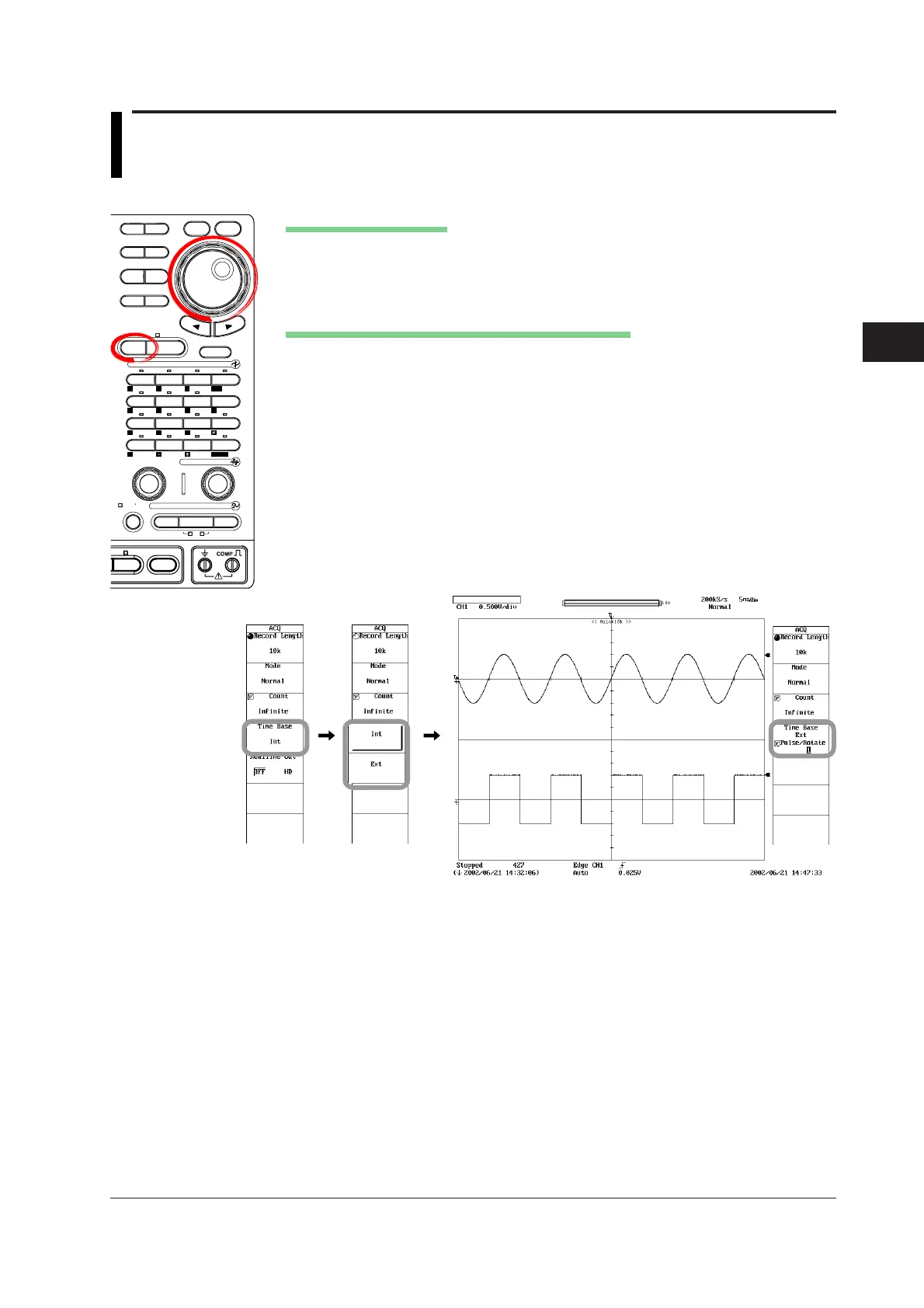

5.14 Setting the Time Base (Internal Clock/External

Clock)

Procedure

MEASURE

CURSOR RESET SELECT

ALL CH

MODE

POSITION

SIMPLE/ENHANCED

ACQ

START/STOP

SETUP DISPLAY

ZOOM

DUAL

CAPTURE

HISTORY

MATH

DELAY

MANUAL TRIG

V/DIV TIME/DIV

TRIGGER

TRIG D

VERTICAL

HORIZONTAL

CAL

X-Y

DSP 1

8 9

DSP 2

654

ENTER

DSP 6DSP 5

LOGIC A

LOGIC B

EVENT

DSP 3 DSP 4

EXP

GO/NO-GO

ACTION

FILE

SHIFT

Selecting the Time Base

1. Press ACQ.

2. Press the Time Base soft key and then select Int or Ext.

If you select Ext, the Pulse/Rotate setup menu appears.

Setting Pulse/Rotate (When Time Base Is Set to Ext)

3. Press the Pulse/Rotate soft key.

4. Turn the jog shuttle to set the number of pulses (of the external clock signal) for

the pulse/rotate function. Pressing RESET resets the value to 1.
