4-7
IM 701210-05E
Common Operations
4
4.3 USB Keyboard/USB Mouse
Entering Values from a USB Keyboard
You can connect a USB keyboard for entering file names, comments, and other
information. In addition, the functions of each key on the front panel of the DL750/
DL750P are assigned to the keys on the keyboard (see appendix 8). Thus, the keyboard
can be used to carry out operations that are the same as the key operations on the
DL750/DL750P.

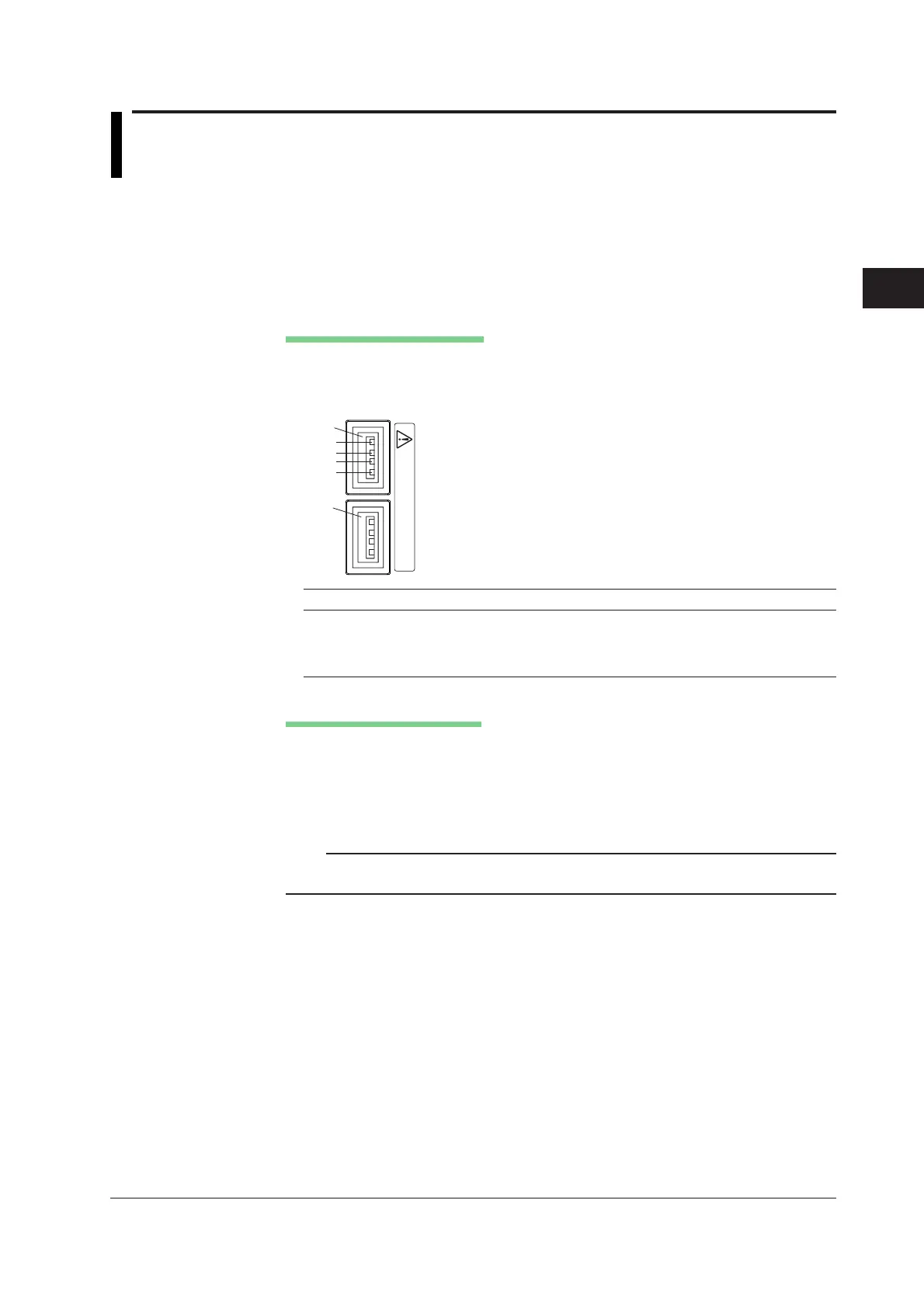

USB PERIPHERAL Connector
To connect a USB keyboard to the DL750/DL750P, connect a USB cable to the USB
PERIPHERAL connector on the left side panel. There are two USB PERIPHERAL
connectors (ports).
Port 1
USB PERIPHERAL
1
2
3
4
Port 2
Pin No. Signal Name
1 VBUS: +5 V
2 D–: –Data
3D+: +Data
4 GND: Ground
Keyboards That Can Be Used
Keyboards that can be used depend on the type of USB Keyboard language that you
selected in section 17.3 (English or Japanese). The following keyboards conforming to
USB Human Interface Devices (HID) Class Ver1.1 can be used.
• When the USB Keyboard language is English: 104 keyboard and 89 keyboard
• When the USB Keyboard language is Japanese: 109 keyboard and 89 keyboard
Note
For USB keyboards that have been tested for compatibility, contact your nearest
YOKOGAWA dealer.
To Next Page
