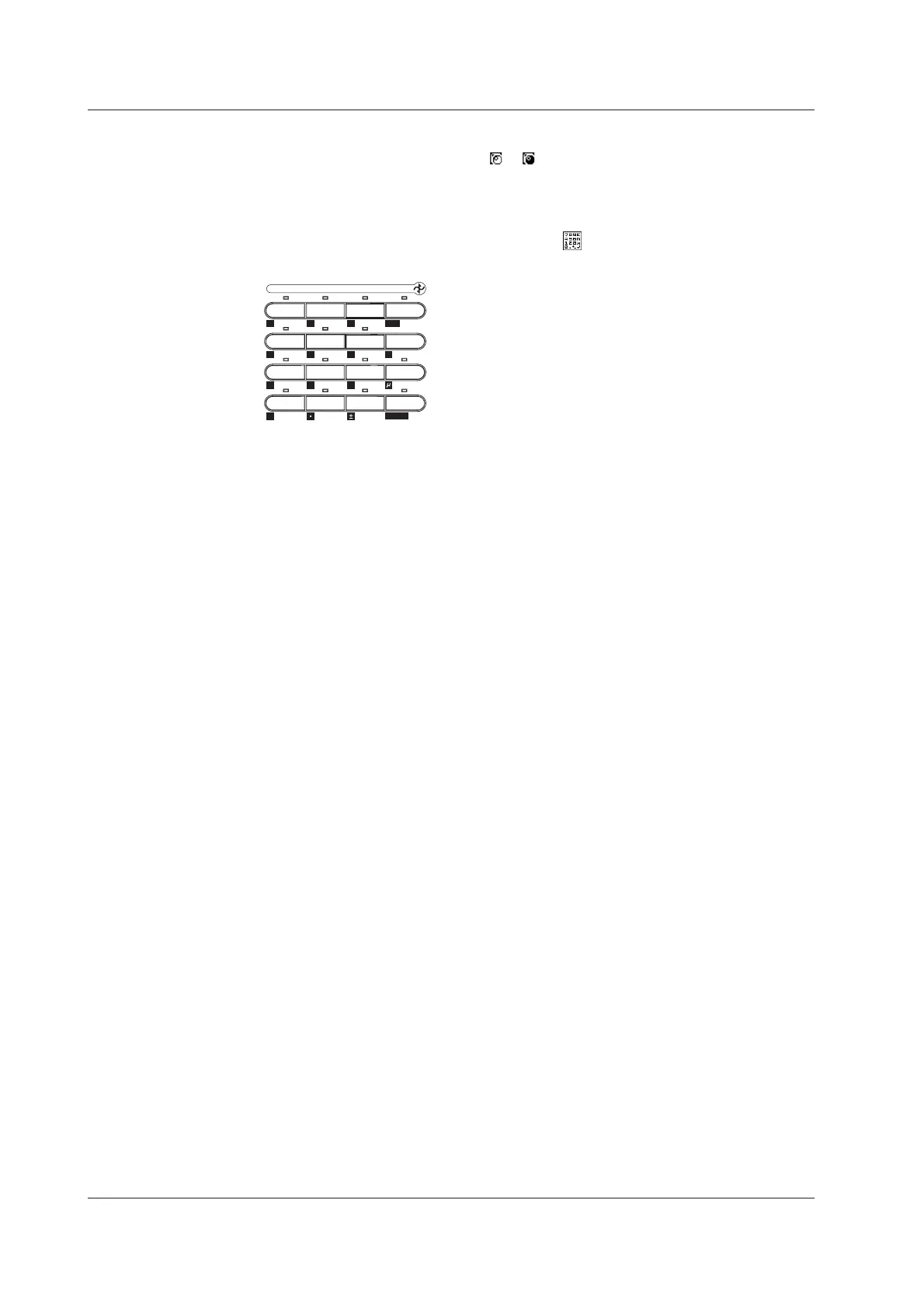

Entering Values from the NUM KEY
When entering values for items with or icon, press the NUM KEY to display an area
for directly entering values (black area). You can enter CH1 to CH16 keys of the
VERTICAL group to enter values. The gray value marked below and to the left of each
key can be entered.
When value entry using the NUM KEY is active,
is indicated at the upper left corner
of the screen.
CH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
VERTICAL
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
Example: To enter 1.5 mV,
press CH 9, CH 14, CH 6, CH 8, and CH 16.
To clear the area for entering values, to escape, press the NUM KEY or CH16 (ENTER)
again.
