Creating a Directory
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT

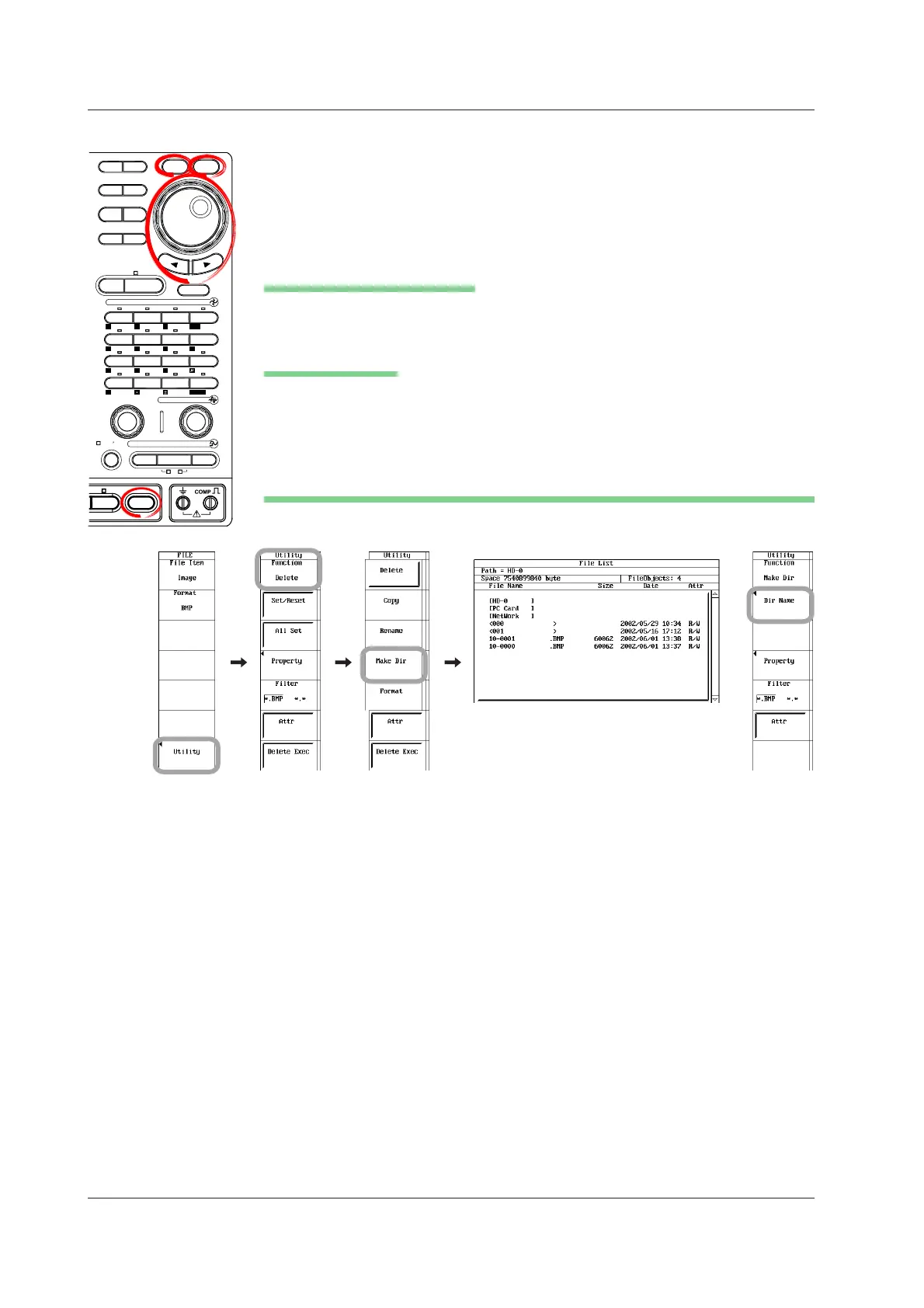

1. Press FILE.
2. Press the Utility soft key. The Utility setup menu and the File List window
appear.
3. Press the Function soft key. The file function selection menu is displayed.
4. Press the Make Dir soft key.
Selecting Media and Directories
5. Select the medium and directory according to steps 4 to 9 in section 13.8,
“Saving/Loading the Setup Data.”
Creating Directories
6. Turn the jog shuttle to select a medium or directory.
7. Press the Dir Name soft key. A keyboard appears.
8. Enter the directory name or file name according to the procedure given in
section 4.2.
Specifying the Files to Be Displayed in the File List Window and Displaying Properties
9. Carry out steps 19 to 21 in section 13.8, “Saving/Loading the Setup Data.”
13.17 Changing the Directory/File Name of the Storage Medium and Creating Directories
