YOKOGAWA DL750 User Manual

Part 1:vi
IM 701210-05E

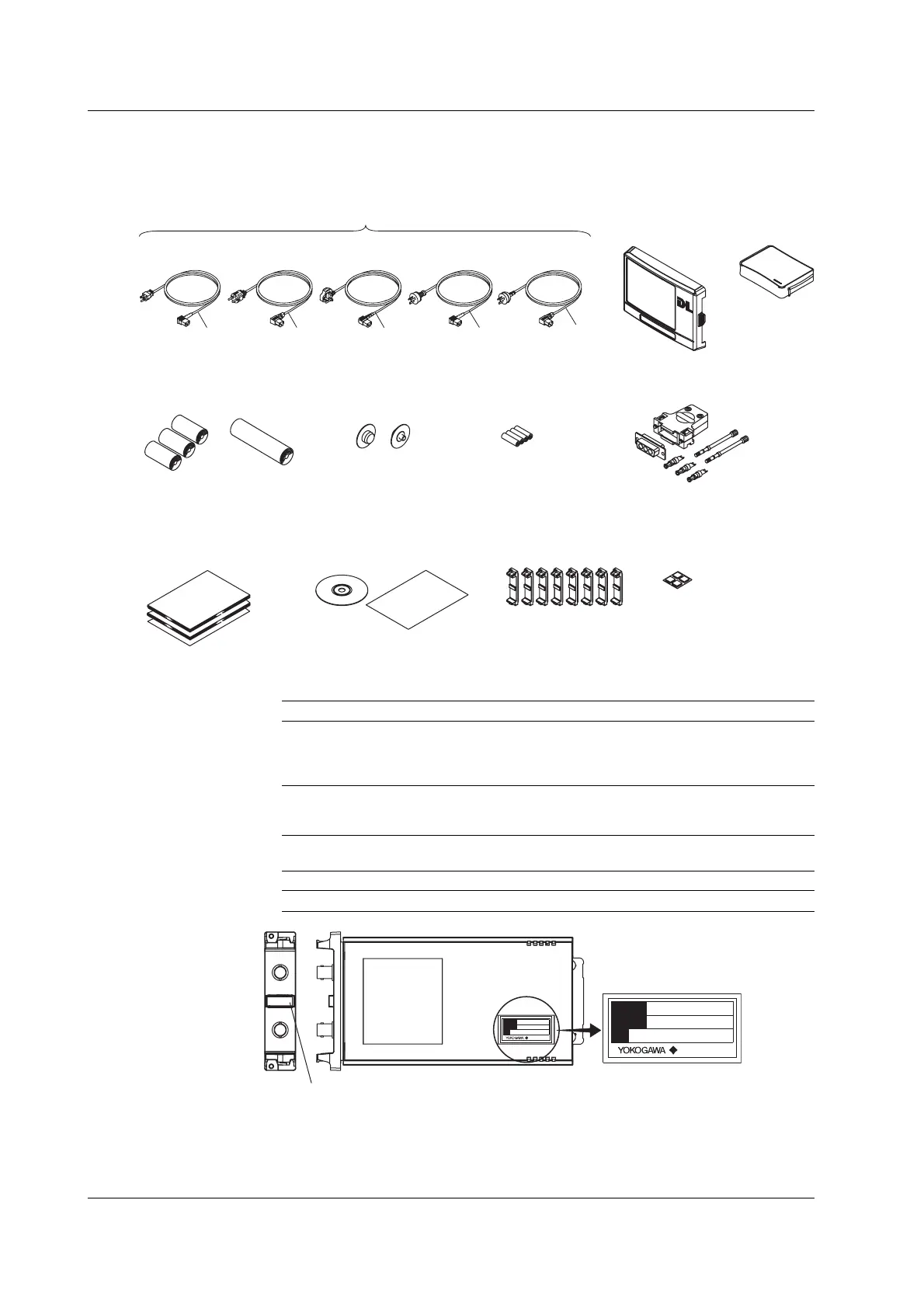

Standard Accessories
The standard accessories below are supplied with the instrument. Check that all
contents are present and undamaged.
Cover panels
B8023EN 8 pieces
• User’s Manual Part 1
• User’s Manual Part 2
• Operation Guide
AAA Alkaline batteries
(for acquisition memory
backup)
A1070EB 4 cells
Front panel protection
cover (transparent)
B8023EA
Soft case
B9946EB
• Communication Interface User’s
Manual (CD-ROM) B8023YZ
• Handling of the CD-ROM
Rubber feet
B9989EX 4 pieces (1 sheet)
DC power connector
(for the /DC model)
B8023WZ
Printer roll paper
For the DL750*
B9988AE
3 rolls
For the DL750P*
701966
1 roll
* Either one is included
depending on the model
Roll paper flange
(DL750P only)
B8024CA 2 pieces
UL/CSA Standard
A1006WD
VDE Standard
A1009WD
BS Standard
A1054WD
AS Standard
A1024WD
Power Cord (one of the following power cords
is supplied according to the instrument’s suffix codes)
GB Standard
A1064WD
D F Q R
H
Input Modules (Sold Separately)
Check that the MODEL indicated on the input module is what you ordered.
MODEL Name Abbreviation
701250 High-Speed 10 MS/s, 12-Bit Isolation Module HS10M12
701251 High-Speed High-Resolution 1 MS/s, 16-Bit Isolation Module HS1M16
701255 High-Speed 10 MS/s, 12-Bit Non-Isolation Module NONISO_10M12
701260 High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) HV (with RMS)
701261 Universal (Voltage/Temp.) Module UNIVERSAL
701262 Universal (Voltage/Temp.) Module (with AAF) UNIVERSAL (AAF)
701265 Temperature, High Precision Voltage Isolation Module TEMP/HPV
701270 Strain Module (NDIS) STRAIN_NDIS
701271 Strain Module (DSUB, Shunt-Cal) STRAIN_DSUB
701275 Acceleration/Voltage Module (with AAF) ACCL/VOLT
701280 Frequency Module FREQ
MODEL
NO.
SUFFIX
Made in Japan
MODEL
NO.
SUFFIX
Made in Japan
701250
HS10M12
Top row: MODEL
Bottom row: Abbreviated name
This user’s manual refers to the input modules by MODEL (abbreviation).
For example, the High-Speed 10 MS/s, 12-Bit Isolation Module is indicated as 701250
(HS10M12). However, the module may be indicated only by the model (701250) if a
description about the same module is given immediately before it.
Checking the Contents of the Package
