YOKOGAWA DL750 User Manual

4-1
IM 701210-05E
Common Operations
4
Chapter 4 Common Operations
4.1 Operations and Functions of Keys and the Jog
Shuttle
This section describes the basic operations of the keys and jog shuttle on the DL750/
DL750P.

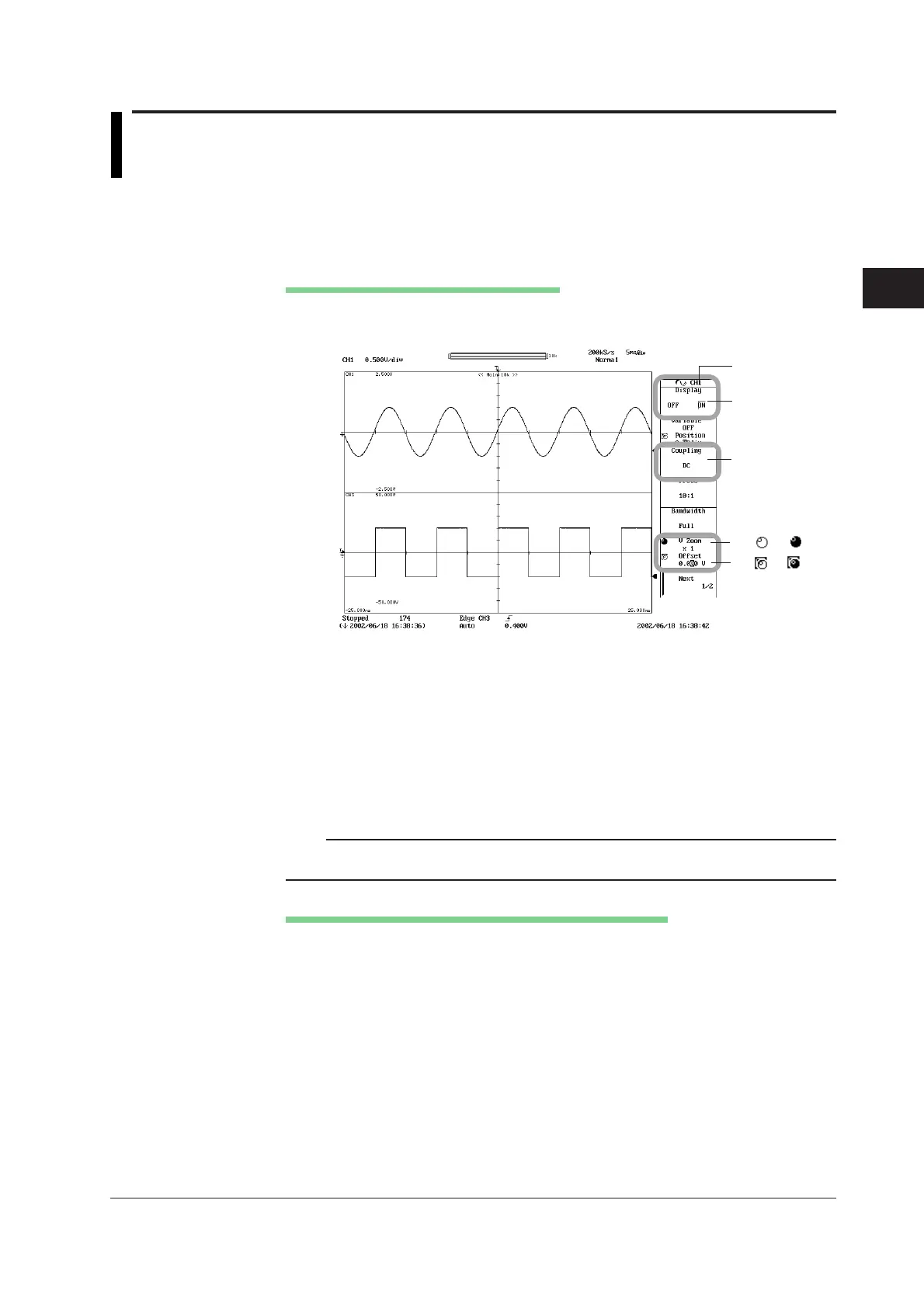

Basic Key Operations
Displaying the Setup Menu of Panel Keys
1. Press a key. The menu corresponding to the key appears.
2. Press the soft key corresponding to each item.
A: Press the corresponding soft key to switch the selection items.
B: Press the corresponding soft key to display the selection menu.
Press the soft key corresponding to the selection to confirm the selection.
C: Press the corresponding soft key to set the item under jog shuttle control.
Turn the jog shuttle to change the setting.
D: Press the corresponding soft key to set the item under jog shuttle control.
Turn the jog shuttle to set the value.
Press the arrow keys to move along the digits.
You can directly enter the value using the NUM KEY or USB keyboard.
A
Setup menu
B
C ( or )
D ( or )
Note
If the screen menu shows Next 1/2, you can press the soft key corresponding to Next 1/2 to show
the 2/2 menu. To show the 1/2 menu again, press the soft key corresponding to Next 2/2.
Displaying the Setup Menu Marked in Purple on the Panel
1. Press the SHIFT key. The indicator above SHIFT illuminates in green to
indicate the shifted state. Functions marked in purple on the panel become
active.
2. Press the key corresponding to the setup menu you wish to display.
