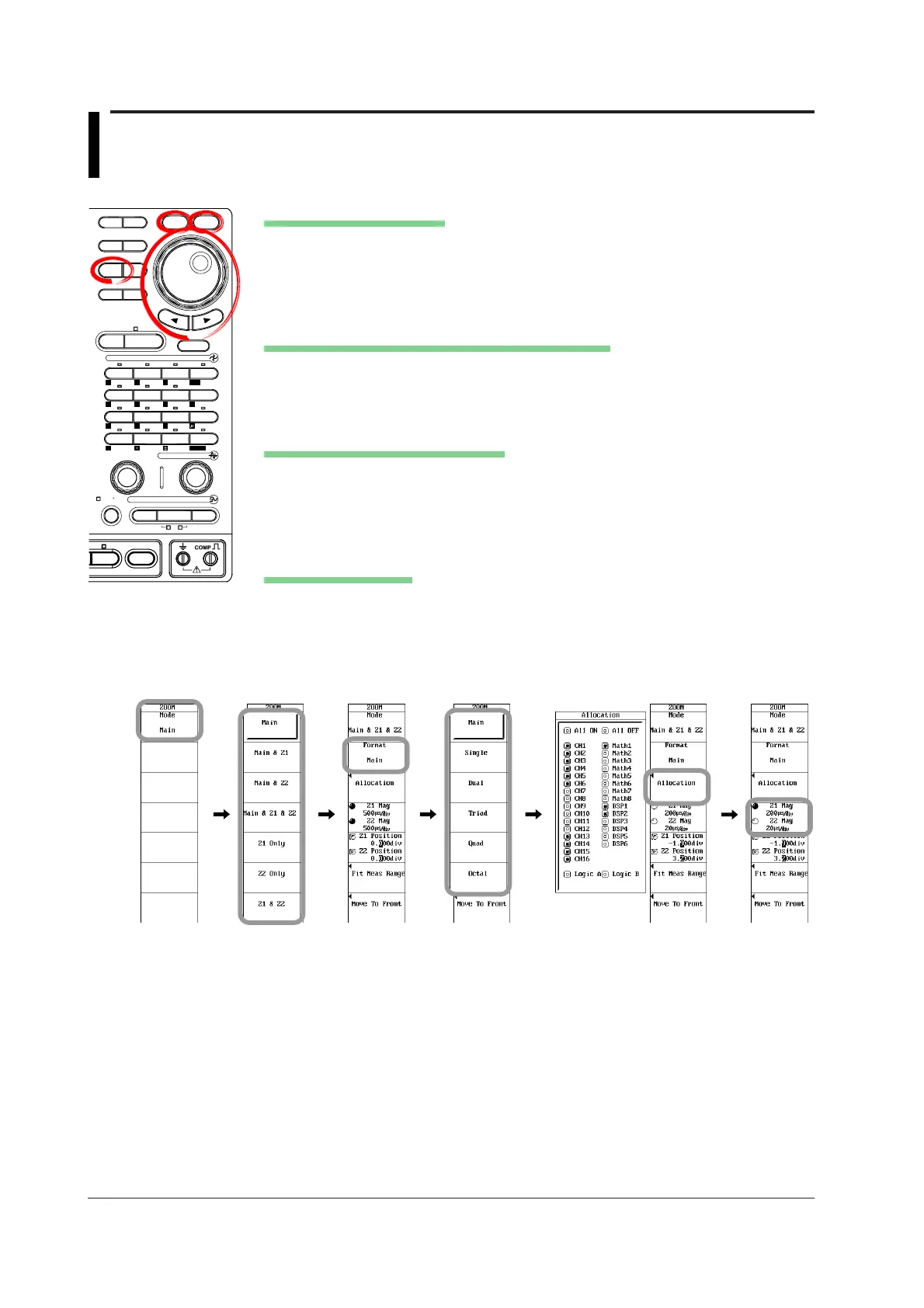

8.5 Zooming the Waveform
<For a description of this function, refer to page 2-41.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
Selecting the Display Mode
1. Press ZOOM.
2. Press the Mode soft key. The display mode selection menu appears.
3. Press the soft key corresponding to the desired mode.
If you select Main, you cannot carry out the following operations.
Selecting the Display Format of Zoomed Waveforms
4. Press the Format soft key. The format selection menu appears. (If you set
Mode to Main, the Format selection menu is not displayed.)
5. Press the soft key corresponding to the desired format.
Setting the Waveform to Be Zoomed
6. Press the Allocation soft key. The menu for setting the waveform to be
zoomed appears.
7. Use the jog shuttle and SELECT to select the waveform to be zoomed.
Select All ON to select all waveforms that are currently displayed.
Setting the Zoom Rate
8. Press the Z1 Mag/Z2 Mag soft key to set the jog shuttle control to Z1 Mag. (If
you set Mode to Z1, Z1 Mag is displayed. If you select Z2, Z2 Mag is displayed.
If you select Z1 and Z2, Z1 Mag/Z2 Mag is displayed.)
Turn the jog shuttle to set the zoom rate of the Z1 zoom box.
9. Likewise set the zoom rate of the Z2 zoom box with Z2 Mag.
DSP1 to DSP6 are optional.
