Setting the Zoom Position
10. Press the Z1 Position/Z2 Position soft key to set the jog shuttle control to Z1
Position. (If you set Mode to Z1, Z1 Position is displayed. If you select Z2, Z2
Position is displayed. If you select Z1 and Z2, Z1 Position/Z2 Position is
displayed.) Turn the jog shuttle to set the zoom position of the Z1 zoom box.
11. Likewise set the zoom position of the Z2 zoom box with Z2 Position.
By setting the jog shuttle control to both Z1 Position and Z2 Position, the zoom
positions of both Z1 and Z2 can be moved simultaneously.

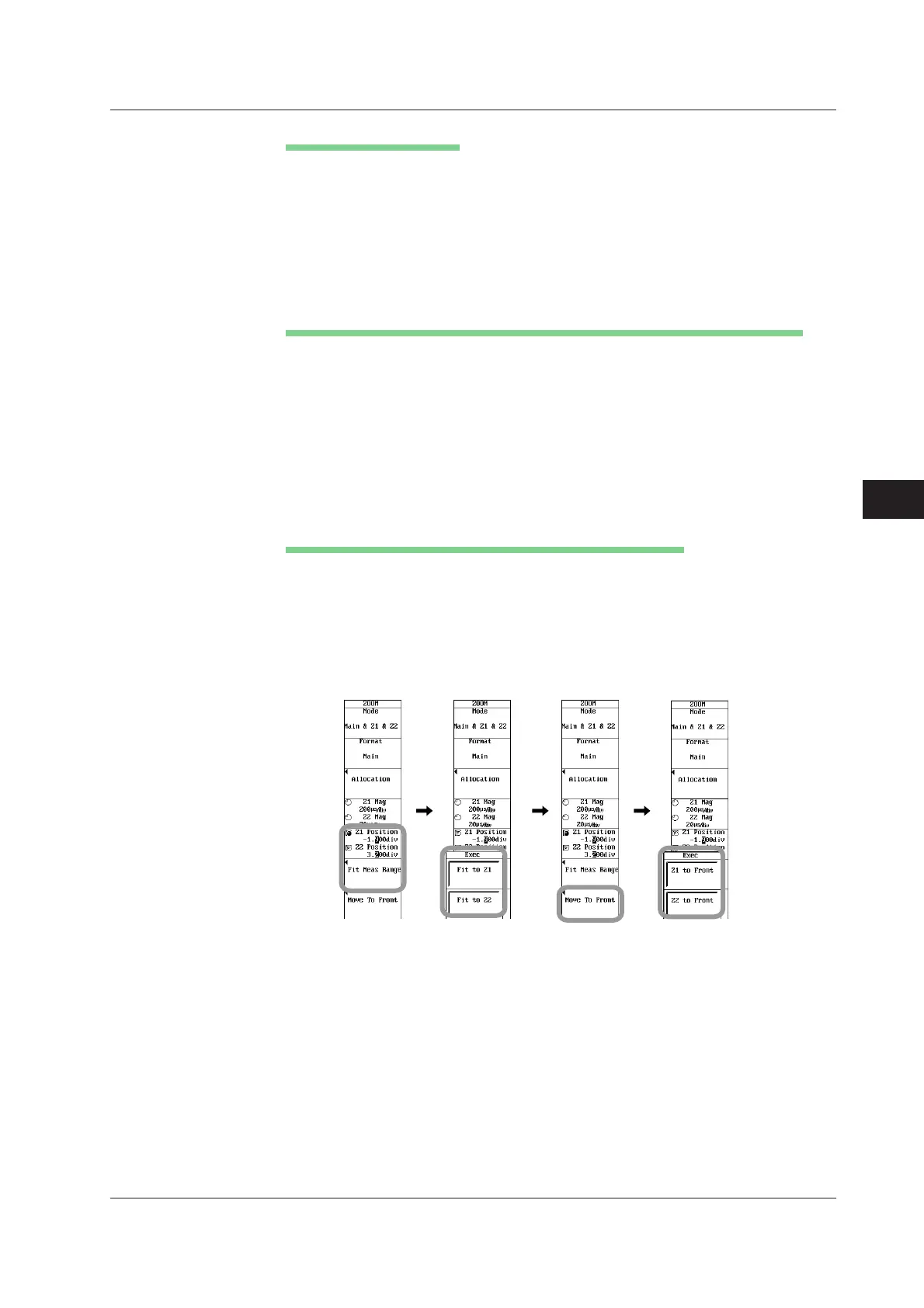

Changing the Range of the Automated Measurement of Waveform Parameters
• When Mode is set to a setting other than Main&Z1&Z2
12. Press the Fit Meas Range to Z1 or Fit Meas Range to Z2 soft key. The range
of the automated measurement of waveform parameters is set to the zoom
range of Z1 or Z2.
Proceed to step 15.
• When Mode is set to Main&Z1&Z2
12. Press the Fit Meas Range soft key.
13. Press the Fit to Z1 or Fit to Z2 soft key.
Moving the Zoom Box to the Head Position of the Waveform
• When Mode is set to a setting other than Main&Z1&Z2
14. Press the Move Z1 to Front or Move Z2 to Front soft key. The zoom box
moves to the head position of the waveform.
• When Mode is set to Main&Z1&Z2
14. Press the Move to Front soft key.
15. Press the Z1 to Front or Z2 to Front soft key.
