11-31
IM 701210-06E
Waveform Analysis/Search
11

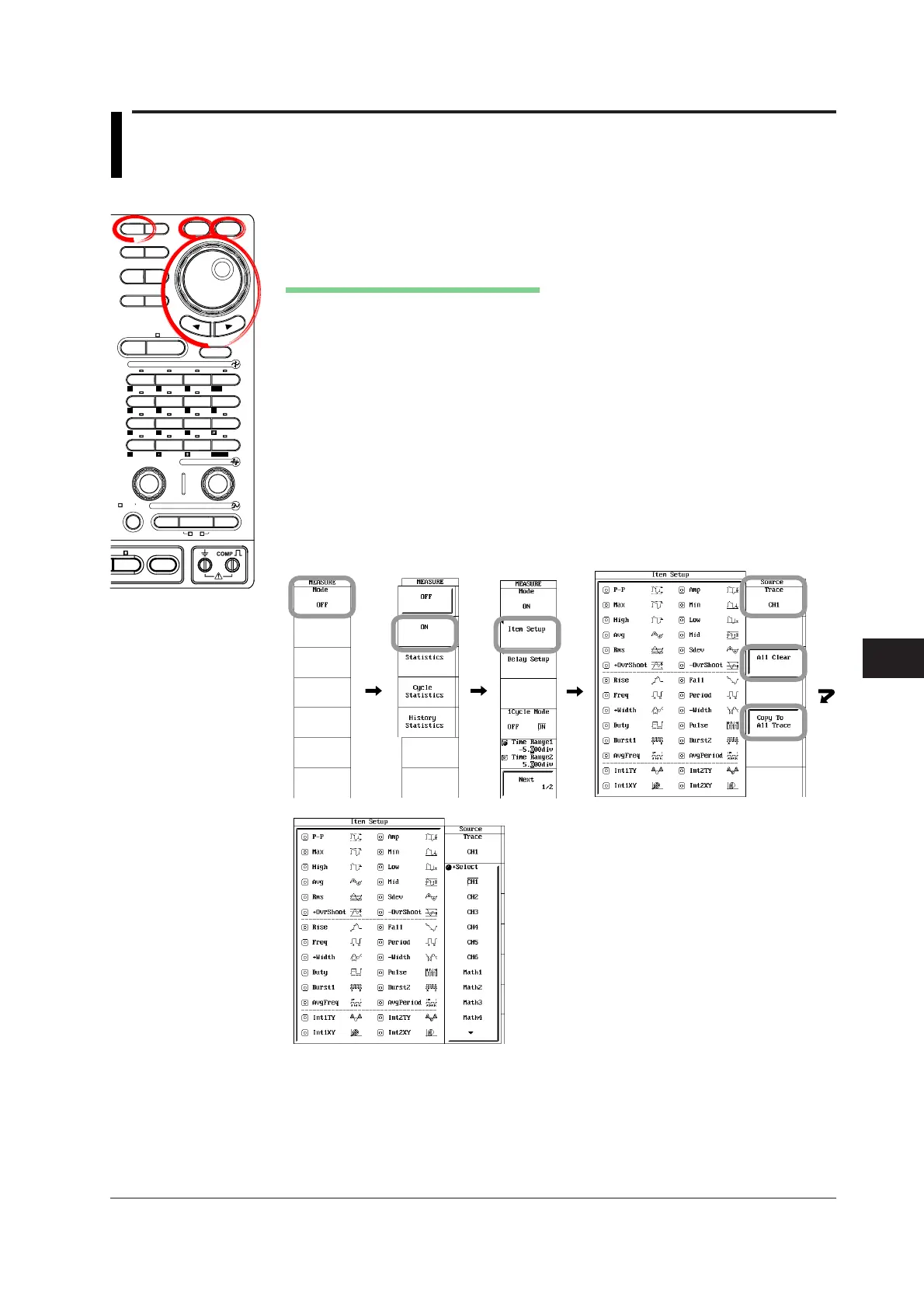

11.6 Automated Measurement of Waveform
Parameters
<For a description of this function, refer to page 2-56.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press MEASURE.
2. Press the Mode soft key , and press the ON soft key.
Selecting the Measurement Parameter
3. Press the Item Setup soft key. The measurement parameter setup dialog box
appears.
• Selecting the Waveform to Be Measured
4. Press the Trace soft key. The trace selection menu appears.
5. Use the jog shuttle and SELECT to select waveform to be measured.
• Selecting the Measurement Parameter
6. Use the jog shuttle and SELECT to turn ON/OFF each item on the
measurement parameter dialog box.
You can turn OFF all parameters at once by pressing the All Clear.
You can copy the current parameter settings to all traces by pressing the Copy
to All Trace soft key.
7. Repeat steps 4 to 6 as many times as necessary.
DSP1 to DSP6 are optional.
