Setting the Delay

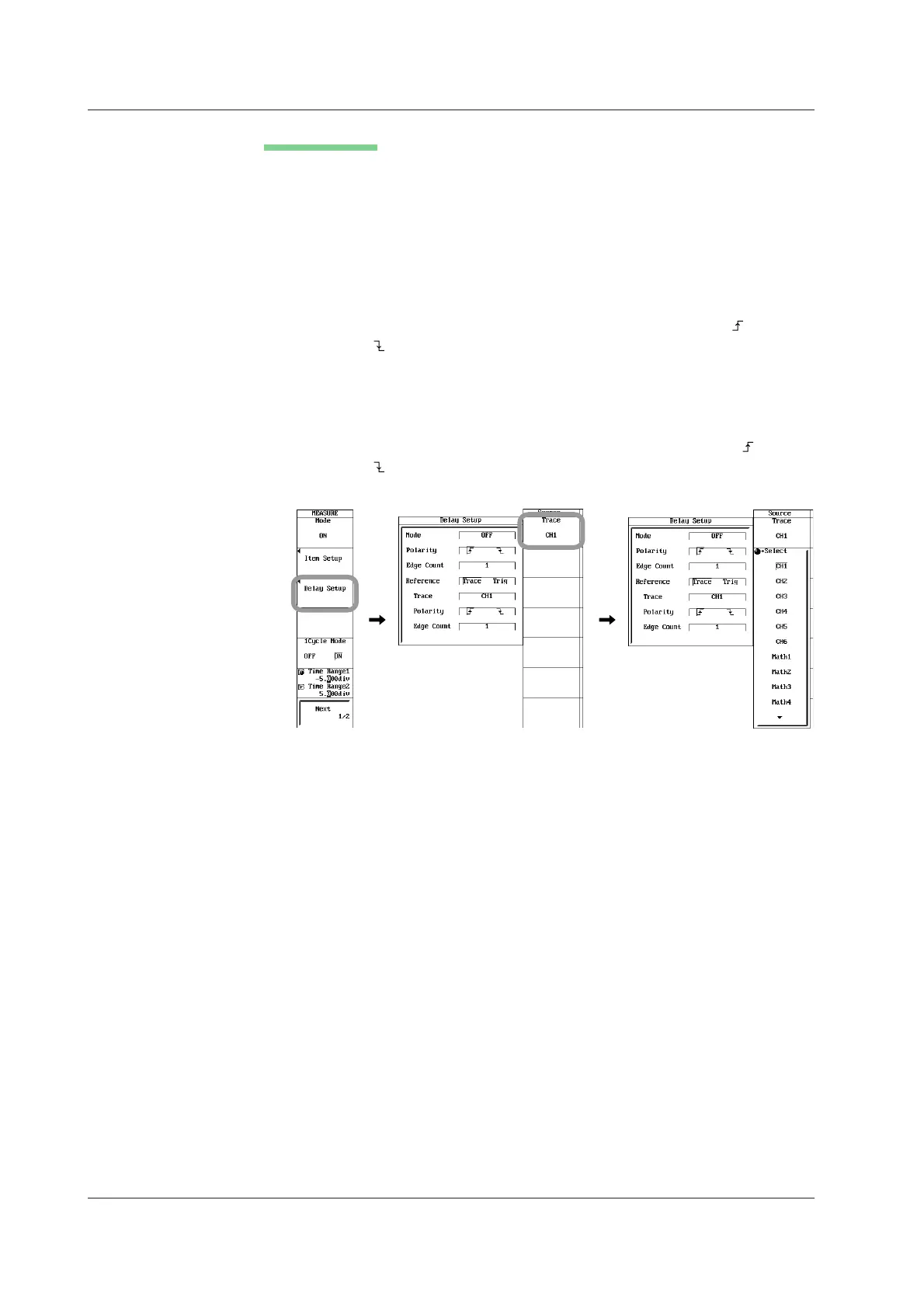

8. Press the Delay Setup soft key. The Delay Setup dialog box appears.
• Selecting the Waveform to Be Measured
9. Press the Trace soft key. The trace selection menu appears.
10. Use the jog shuttle and SELECT to select waveform to be measured.
• Setting the Delay
11. Use the jog shuttle and SELECT to set Mode of the Delay Setup dialog box to
Time, Degree, or OFF.
12. Use the jog shuttle and SELECT to set Polarity under Measure to
(rising
edge) or (falling edge).
13. Use the jog shuttle and SELECT to set Edge Count under Measure.
14. Use the jog shuttle and SELECT to select whether the trace or the trigger is to
be the reference. If you select Trace, proceed to step 15.
15. Use the jog shuttle and SELECT to set Trace under Reference.
16. Use the jog shuttle and SELECT to set Polarity under Reference to
(rising
edge) or (falling edge).
17. Use the jog shuttle and SELECT to set Edge Count under Reference.
