18.4 Checking the System Conditions (Overview)
Procedure
FILE
SHIFT
HELP
MISC
NUM KEY
1. Press MISC.

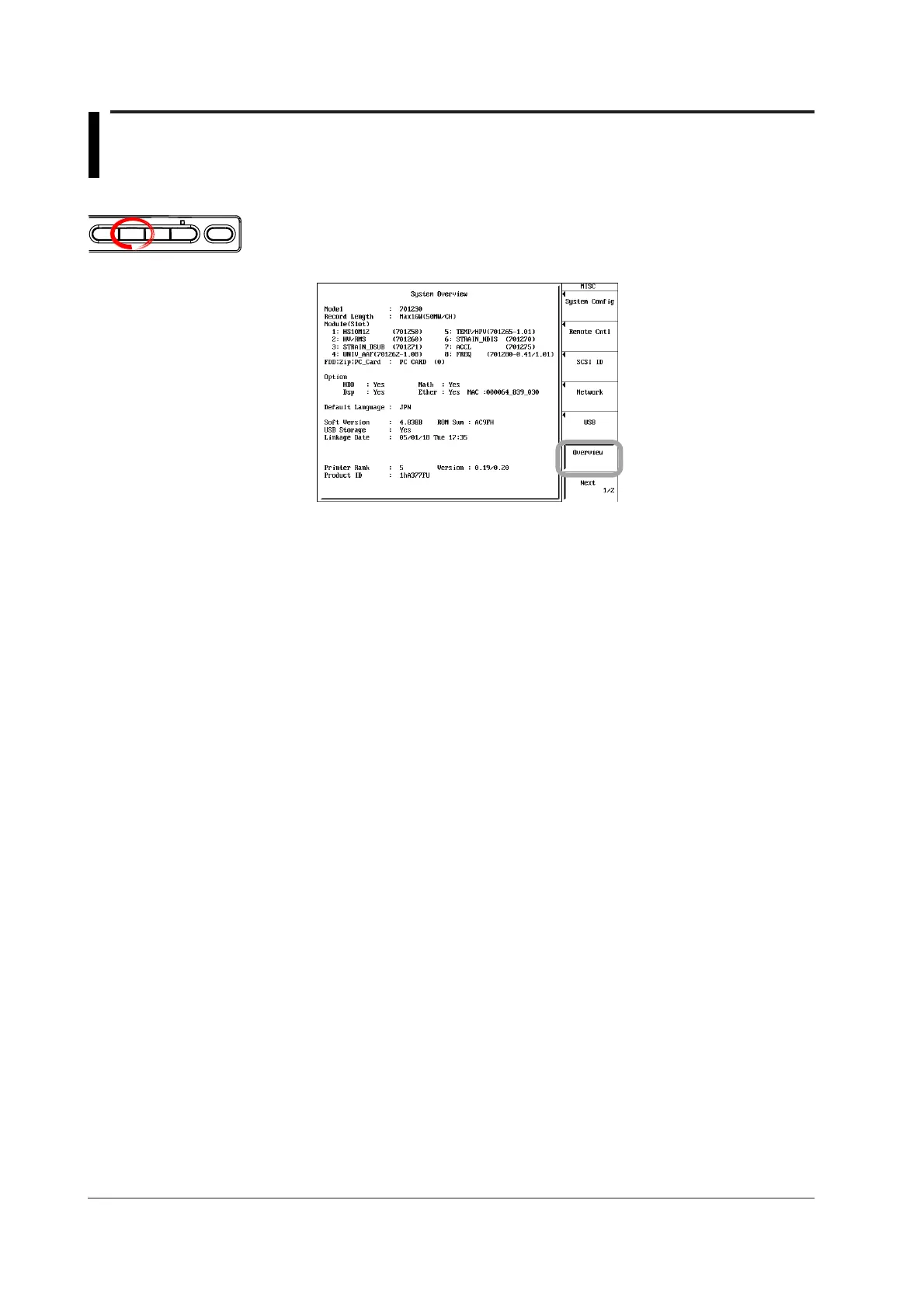

2. Press the Overview soft key. The overview screen appears.
Press any key to clear the overview screen.
Explanation
The following information can be confirmed on the Overview screen.
• Model: Model
• Record Length: Record length
• Module(Slot): Name of the Module
1
in the slot
• FDD|Zip|PC_Card: Type of built-in medium drive
• Option: Presence of options (Yes/No)
• Default Language: Default language
• Soft Version: Version number of the software
• USB Storage: USB storage support (Yes: Supported, No: Not supported)
• Linkage Date: Version date of the software
• Printer Rank/Version: Printer firmware version (DL750P only)
• Product ID: Unique number attached to each instrument
(Required when expanding the instrument with options sold
separately.)
1. The 701265 (TEMP/HPV) and the 701280 (FREQ) are equipped with a CPU and firmware
inside the modules. On the channels in which these modules are inserted, the version of the
firmware installed in the module is also displayed on the screen.
• 701265 (TEMP/HPV)
TEMP/HPV (701265-X.XX)
X.XX: Version of the software installed in the module.
It is 1.01 in the screen above.
• 701280 (FREQ)
FREQ (701280-X.XX/Y.YY)
X.XX: Version of the software installed in the module.
It is 0.27 in the screen above.
Y.YY: Version of the software in the DL750/DL750P that can be installed into the 701280
(FREQ). It is 0.41 in the screen above.
When the two versions above match, you do not have to upgrade the 701280 (FREQ). If
they do not, check the upgrading procedure on the following Web page.
http://www.yokogawa.com/tm/DL750/
