4.5 Performing Auto Setup
<For a description of this function, refer to page 2-62.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT

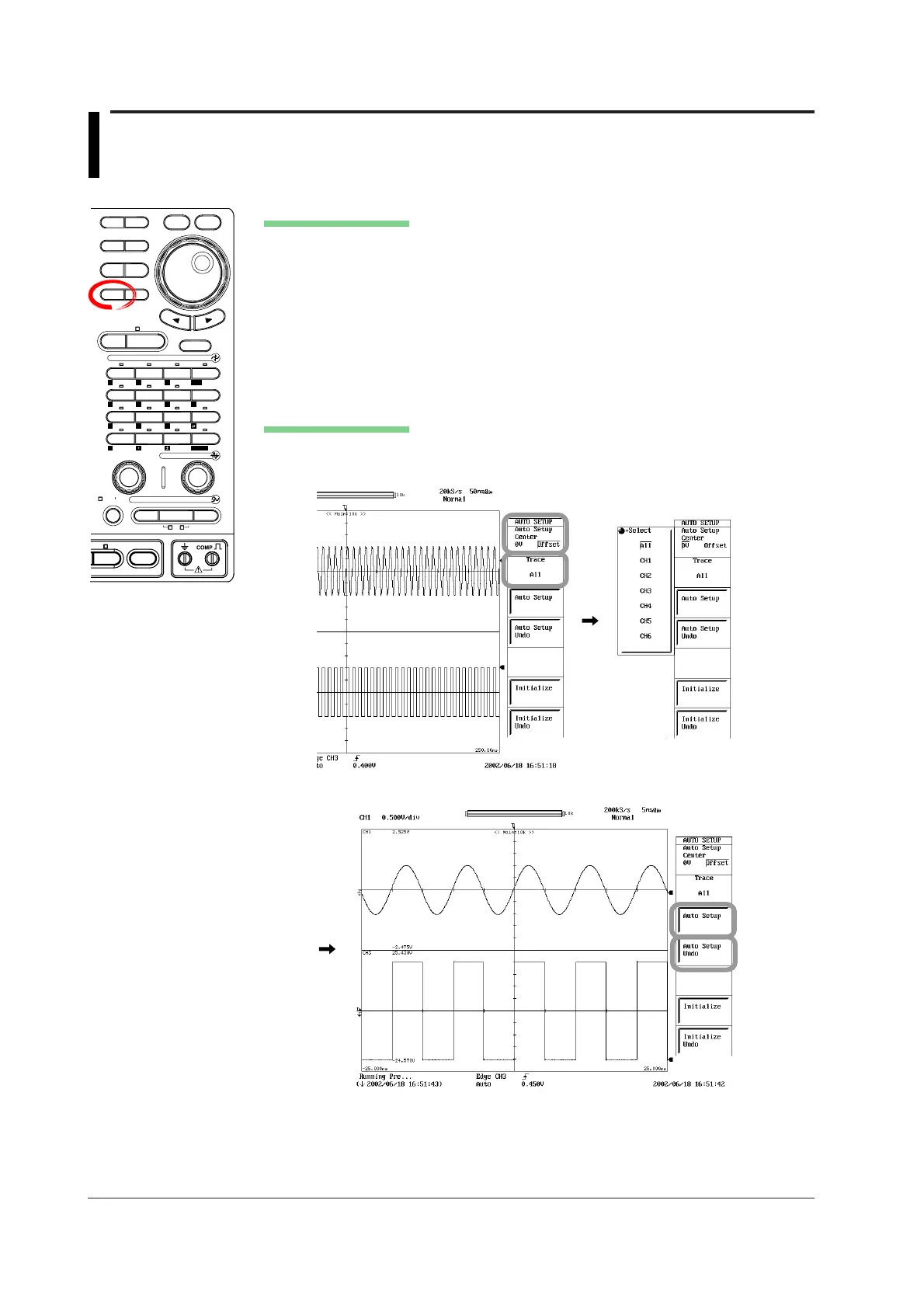

Executing Auto Setup
1. Apply the signal to be measured.
2. Press SETUP.
3. Press the Auto Setup Center soft key to select 0 V or Offset.
4. Press the Trace soft key. The channel selection menu appears. The menu
does not appear for channels without modules.
5. Turn the jog shuttle to select the target channel.
6. Press the Auto Setup soft key. Auto setup is executed.
When auto setup is executed, waveform acquisition starts automatically.
Canceling Auto Setup
7. Press the Auto Setup Undo soft key. The settings are set back to the original
condition.
To Next Page
