7.9 Using the Voice Memo Function
<For a description of this function, refer to page 2-36.>
This section describes only the voice memo function. For a description of the voice
comment function, see section 13.19.
Before using the voice memo function, connect the earphone microphone with a PUSH
switch to the DL750/DL750P by referring to section 3.14, “Connecting the Earphone
Microphone with a PUSH Switch and Connecting the Speaker.”
Note
• The REC LEVEL and VOLUME knobs on the left side panel click in place at the center
position. When using the earphone microphone with a PUSH switch, set the REC LEVEL
and VOLUME knobs to the center position to obtain adequate recording level and play
volume.
• If you are outputting the voice to an external speaker for the first time by using the optional
speaker cable (sold separately), set the play volume to the minimum setting using the
VOLUME knob.
Procedure
PROTECT
VOICE
MEMO
SAVE
PRINT
MENU MENU
DL750 DL750P
SHIFT
HELP
MISC
NUM KEY
PROTECT
FEED
SAVE
PRINT
SNAPSHOT CLEAR TRACE
MENUVOIC E M EMO MENU
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT

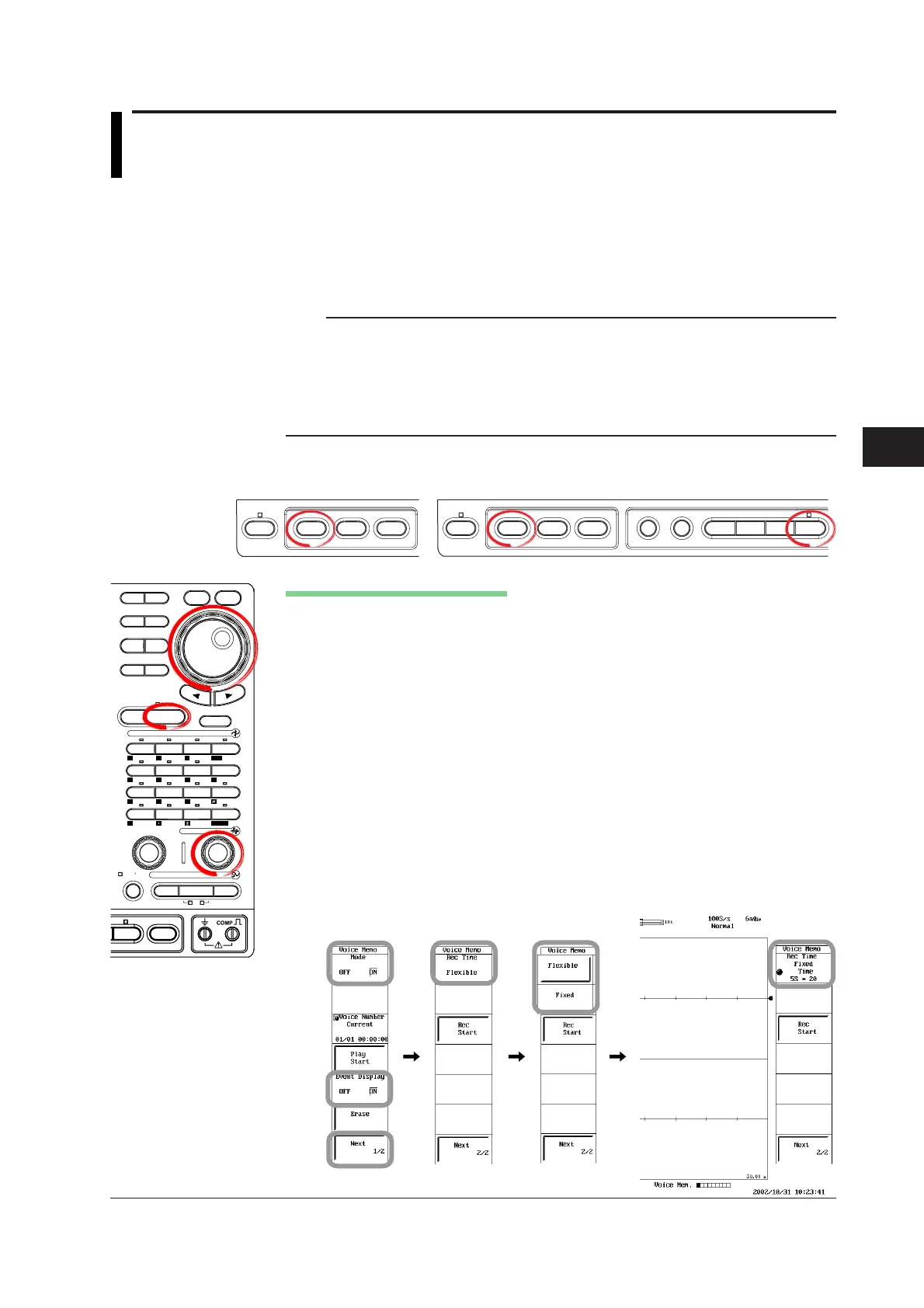

Setting the Voice Memo Function
1. Press VOICE MEMO. (On the DL750P, press SHIFT+FEED (VOICE MEMO).)
2. Press the Mode soft key to select ON.
• Turning ON/OFF the Event Waveform Display
3. Press the Event Display soft key to select OFF or ON. For a description of
event waveforms, see section 5.21.
4. Press the Next 1/2 soft key.
• Setting the Record Time
5. Press the Rec Time soft key.
6. Press the Flexible or Fixed soft key. If you wish to record for an arbitrary length
of time without specifying the record time, select Flexible; if you wish specify the
record time and count before recording, select Fixed. If you select Flexible
proceed to step 8; if you select Fixed proceed to step 7.
7. Use the jog shuttle to set the Time in the range of 5 s * 20 (5 s × 20 times) to
100 s * 1 (100 s × 1 time).
