Executing the Waveform Acquisition
8. Turn TIME/DIV to set T/div in the range of 100 ms/div to 3 day/div.
9. Press START/STOP.
Note
If the ACQ MEMORY BACKUP switch (located on the DL750/DL750P right side panel) is
turned ON, the voice memo data is backed up as with the waveform data. The backup
procedure is the same as the backup function of the acquisition memory. See section 7.10.
Recording a Voice Memo
• When Flexible Is Selected
There are two record methods.
Recording by Using the PUSH Switch on the Earphone Microphone
10. Record the voice memo while holding down the PUSH switch on the earphone
microphone.
11. To stop recording, release the PUSH switch. When the recording is finished,
proceed to step 12.
Recording Using the Voice Memo Menu
10. Record the voice memo by pressing the Rec Start soft key. The soft key
changes to Rec Stop.
11. To stop the recording, press the Rec Stop soft key. When the recording is
finished, proceed to step 12.

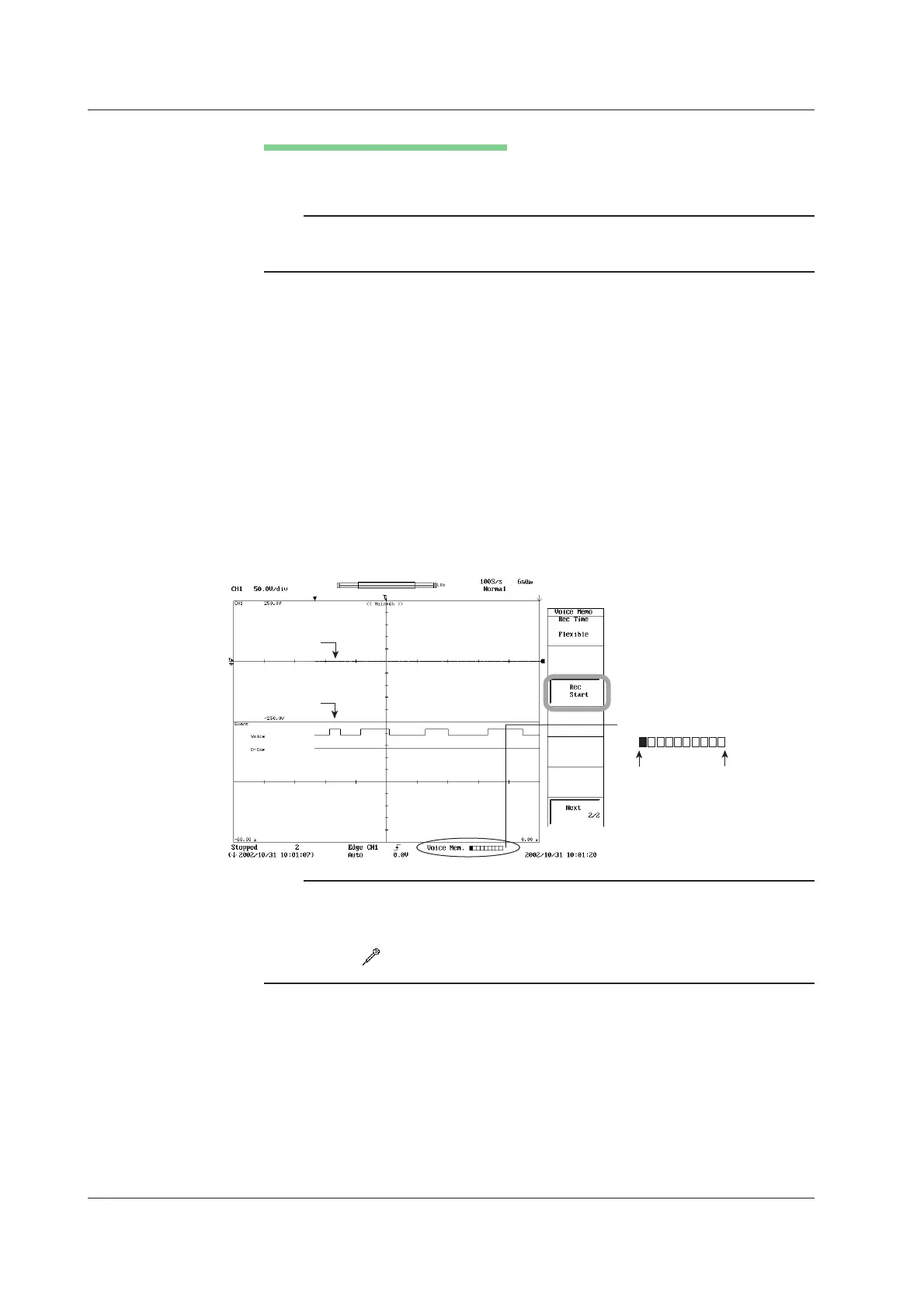

Voice memory indicator
Waveform for
recording a
voice memo
Event
waveform
0 s
100 s
Indicates the record time of
voice memos. As time elapses,
the indicator turns red
1
.
1. When the screen color setting
(see section 17.4) is set to default.
Note
• Voice memos can be recorded repeatedly until the total record time reaches 100 s.
• If the total record time reaches 100 s, succeeding recordings will be invalid. Refer to the
voice memory indicator that is displayed at the lower right corner of the screen for the
record time and record count.
• An icon appears at the upper left corner of the screen while voice memo recording is
in progress.
7.9 Using the Voice Memo Function
