Recording in Recorder Mode (Realtime Recording) (Only on the DL750P)
9
Setting the PDF File
12. Press the PDF Setup soft key to display the PDF setup dialog box.
Setting the Paper Size
13. Use the jog shuttle and SELECT to set Paper Size to Built-in Printer, A3, A4, or A5.
Setting the Orientation (If A3, A4, or A5 was selected in step 13)
14. Use the jog shuttle and SELECT to set Orientation to Landscape or Portrait.
Setting the Number of Divisions per Page (If A3, A4, or A5 was selected in step 13
(Only When the Chart Recorder Mode))
15. Use the jog shuttle and SELECT to set Div/Page.
Setting Document Information
16. Use the jog shuttle and SELECT to select Title, Author, Sub Title, or KeyWord.
Enter the title, author, sub title of the PDF file using up to 30 characters and the
keyword using up to 90 characters according to the procedure given in section
4.2.
Setting the Color
17. Use the jog shuttle and SELECT to set Color to OFF or ON.
Enabling/Disabling Compression
18. Use the jog shuttle and SELECT to set Compression to ON or OFF.
Setting Auto Naming
19. Use the jog shuttle and SELECT to select Auto Naming from OFF, Numbering,
and Date.
Setting the PDF File Name
20. Use the jog shuttle and SELECT to select File Name. Then, enter the file
name using up to 16 characters according to the procedure in section 4.2.
Selecting the Output Destination of the PDF File
21. Use the jog shuttle and SELECT to select File List. Then, select the file output
destination according to steps 14 to 17 in section 13.7.
Executing the PDF File Generation
22. Press the Print Exec soft key. A PDF file is created using the conditions set in
steps 4 to 21.

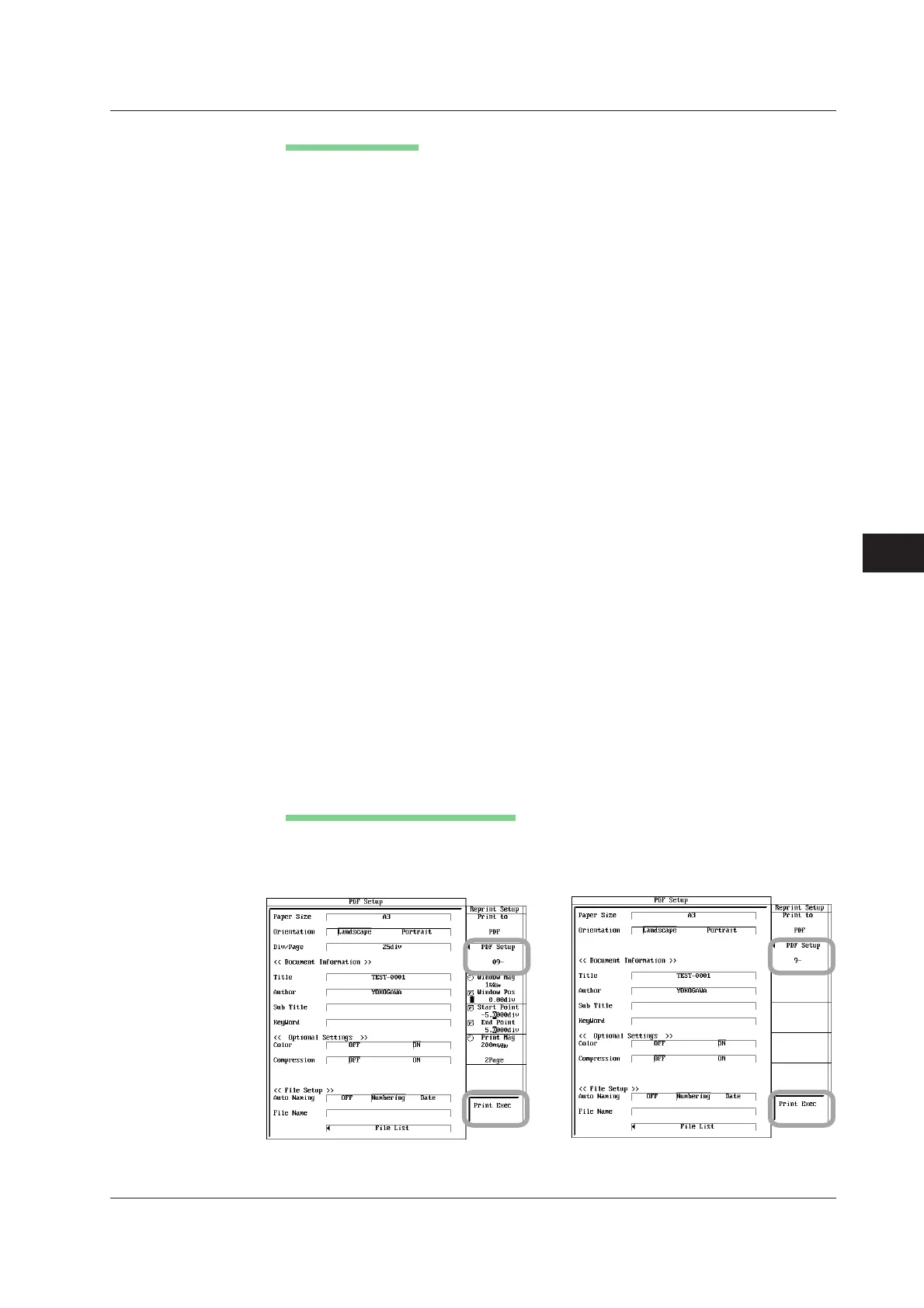

When the Chart Recorder Mode When the X-Y Recorder Mode
9.9 Creating a PDF File of the Reprint Image
