5-13
IM 701210-05E
Horizontal and Vertical Axes
5
Explanation
The displayed waveform can be enlarged/reduced vertically. This is useful when you
wish to change the vertical axis setting after displaying waveforms. This function can be
used when the Variable setting is OFF.
Selecting the Trace to Zoom On
Select a single waveform from CH1 to CH16, LOGIC A, LOGIC B, DSP1 to DSP6
(optional), and EVENT.
However, zooming is not possible if the selected waveform is turned OFF.
Zoom Rate: V Zoom
The following zoom rates are available.
×0.1, ×0.111, ×0.125, ×0.143, ×0.167, ×0.2, ×0.25, ×0.33, ×0.4, ×0.5, ×0.556, ×0.625,
×0.667, ×0.714, ×0.8, ×0.833, ×1, ×1.11, ×1.25, ×1.33, ×1.43, ×1.67, ×2, ×2.22, ×2.5,
×3.33, ×4, ×5, ×6.67, ×8, ×10, ×12.5, ×16.7, ×20, ×25, ×40, ×50, and ×100
However, the range of zoom rates that can be specified varies for the following cases.
• On the 701260 (HV (with RMS))
When set to 50 V/div: ×0.25 to ×100
When set to 100 V/div:×0.5 to ×100
When set to 200 V/div:×1 to ×100
• When measuring acceleration on the 701275 (ACCL/VOLT)
×0.5 to ×50
• On the 701280 (FREQ)
×0.33 to ×100

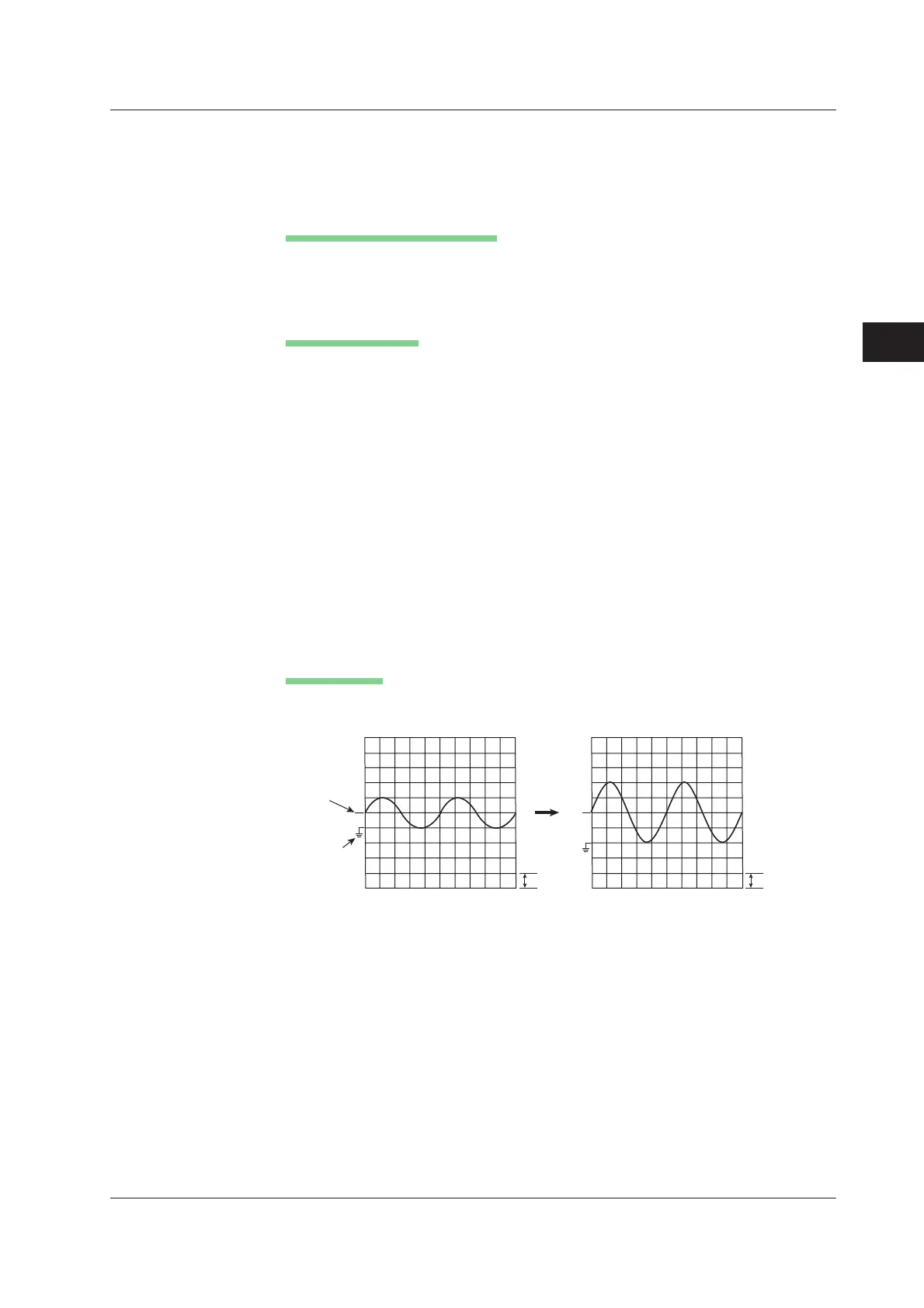

Zoom Position
The waveform is zoomed around the vertical position.
1 div=0.5 V
If V ZOOM is set to ×2
1 div=1 V
Vertical
position
mark
GND mark
5.8 Zooming Vertically by Setting the Zoom Rate
