11-39
IM 701210-06E
Waveform Analysis/Search
11

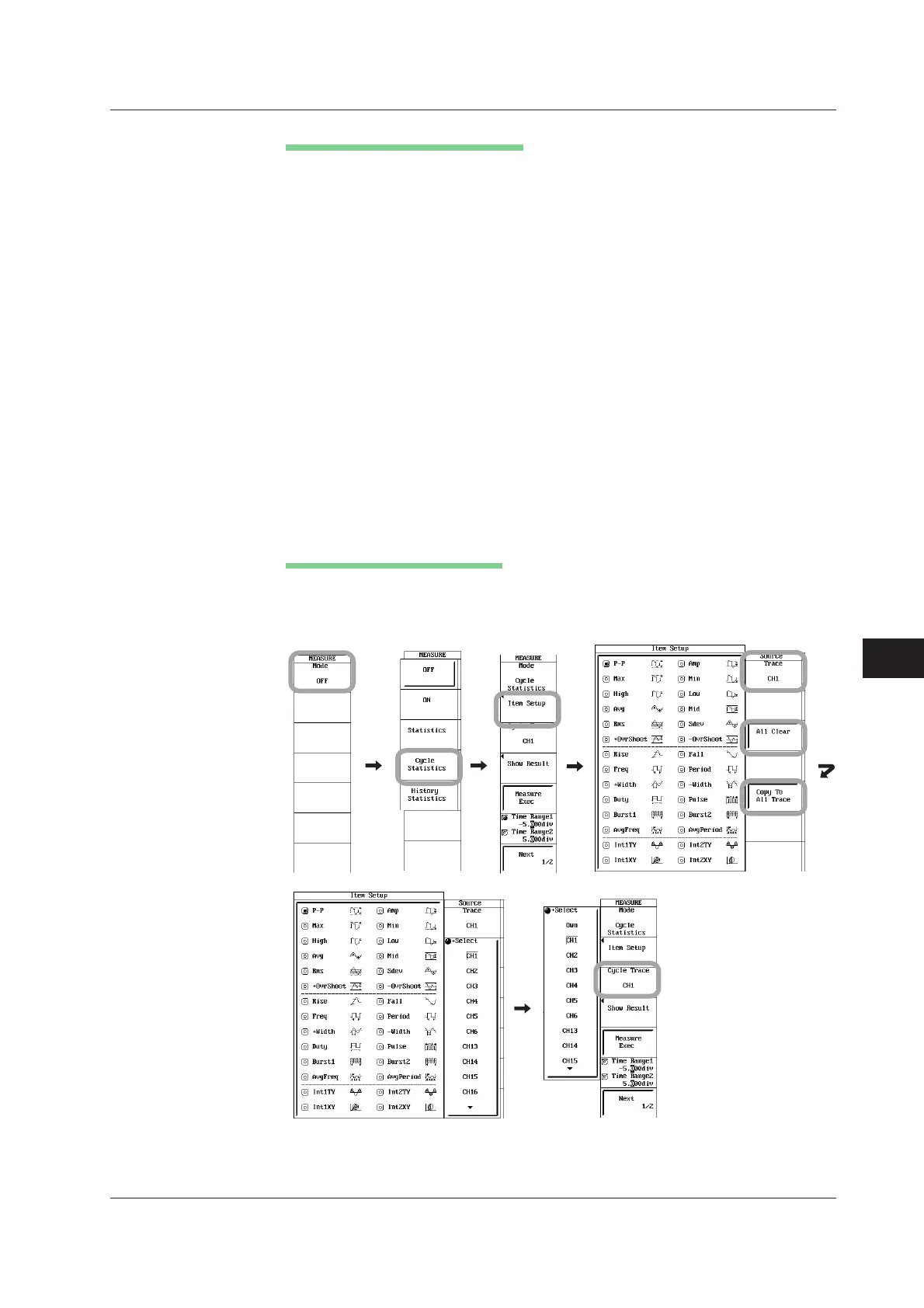

Setting Cycle Statistical Processing
1. Press MEASURE.
2. Press the Mode soft key to select Cycle Statistics.
3. Press the Item Setup soft key. The measurement parameter dialog box and the
measurement channel menu appear.
4. Press the Trace soft key and use the jog shuttle and SELECT to select the
measurement channel.
5. Turn the jog shuttle to move the cursor to the parameter you wish to turn ON.
6. Press SELECT to turn on the parameter selected in step 5.
You can turn OFF all parameters at once by pressing the All Clear. You can
copy the current parameter settings to all traces by selecting “Copy to All
Trace.”
7. Repeat steps 4 to 6 as many times as necessary. Press ESC.
8. Press the Cycle Trace soft key. The cycle trace menu appears.
9. Press the soft key corresponding to the channel to be used to determine the
cycle. If Own is specified, the cycle is determined on each waveform for
statistical processing.
The setting of other parameters is the same as the automated measurement of
waveform parameters (see step 19 and following steps in section 11.6).
Executing Statistical Processing
10. Press the Measure Exec soft key. Statistical processing is executed. Press the
same key again to abort.
Proceed to step 11.
DSP1 to DSP6 are optional.
11.7 Performing Statistical Processing
