Editing a Section of the Zone

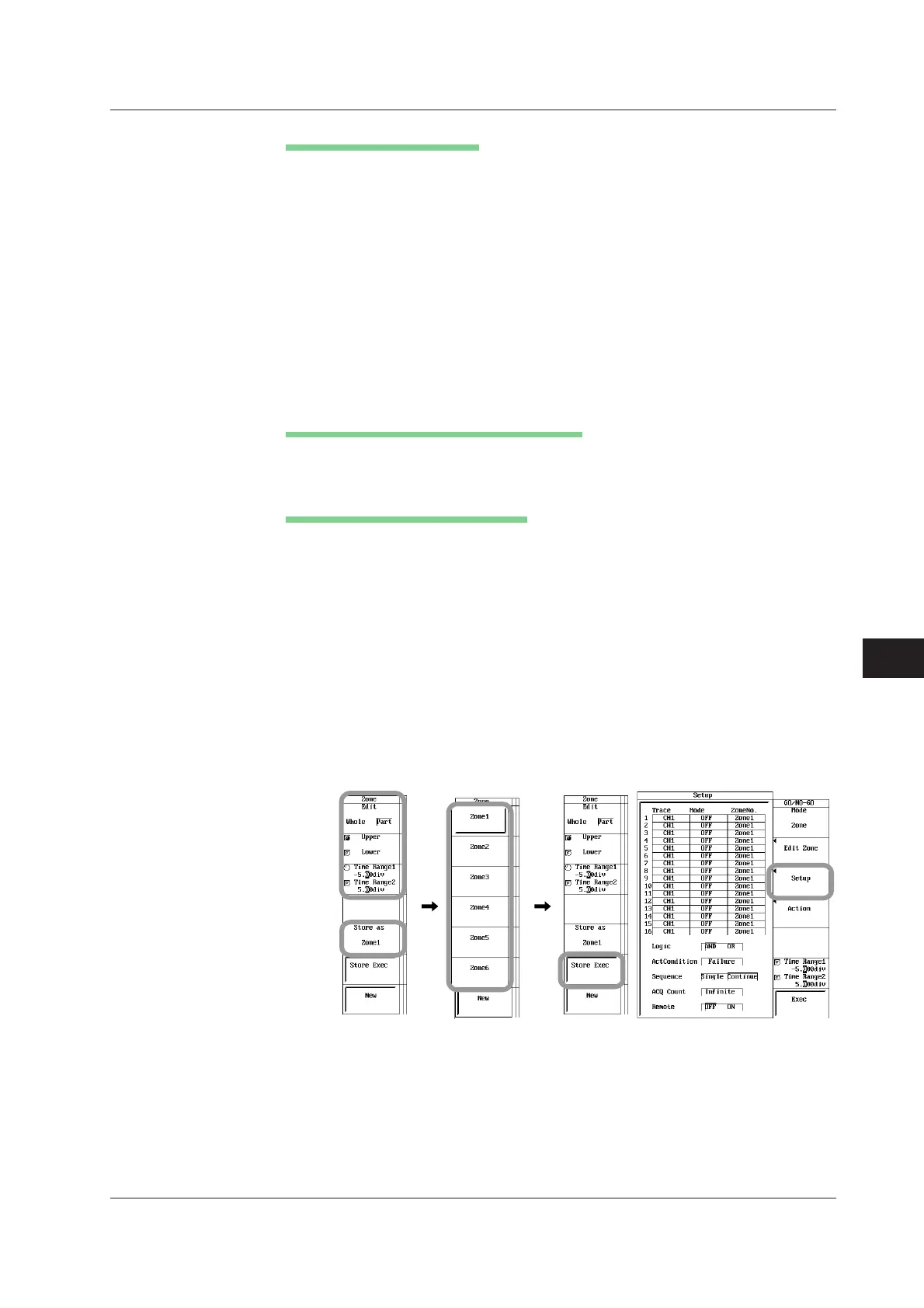

15. Press the Edit soft key to select Part.
16. Press the Time Range1/Time Range2 soft key to select the right cursor or left
cursor.
17. Turn the jog shuttle to set the right or left edge of the partial zone.
18. Press the Upper/Lower soft key to select the direction in which to set the zone.
Then, turn the jog shuttle to create the zone.
19. Repeat steps 16 to 18 to create the desired zone.
20. Press the Store as soft key to open a menu used to set the destination for
registering the new zone.
21. Press any of the Zone1 to Zone6 soft keys to select the destination for
registering the zone.
22. Press the Store Exec soft key to confirm the registration.
Correcting a Preexisting Determination Zone
23. Select the determination zone you wish to correct according to steps 4 and 5.
24. Correct the zone according to steps 8 to 22.
Setting the Determination Waveform
25. Press the ESC or carry out an equivalent operation to return to the GO/NO-GO
menu.
26. Press the Setup soft key. The setup menu appears.
• Selecting the Trace
27. Use the jog shuttle and SELECT to set Trace of number 1.
• Selecting the Determination Criteria
28. Use the jog shuttle and SELECT to set Mode of number 1 to OFF, OUT, or IN.
• Selecting the Zone Number
29. Use the jog shuttle and SELECT to select ZoneNo. of number 1 from Zone1 to
Zone6.
30. As necessary, set items 2 to 16.
