11-46
IM 701210-06E
• Setting the Logic
31. Use the jog shuttle and SELECT to set Logic to AND or OR.
• Setting the Action Condition
32. Use the jog shuttle and SELECT to set ActCondition to Always, Failure, or
Success.
• Setting the Number of Actions
33. Use the jog shuttle and SELECT to set Sequence to Single or Continue.
• Setting the Acquisition Count
34. Use the jog shuttle and SELECT to set ACQ Count.
• Enabling/Disabling the External Input Signal
35. Use the jog shuttle and SELECT to set Remote to OFF or ON.

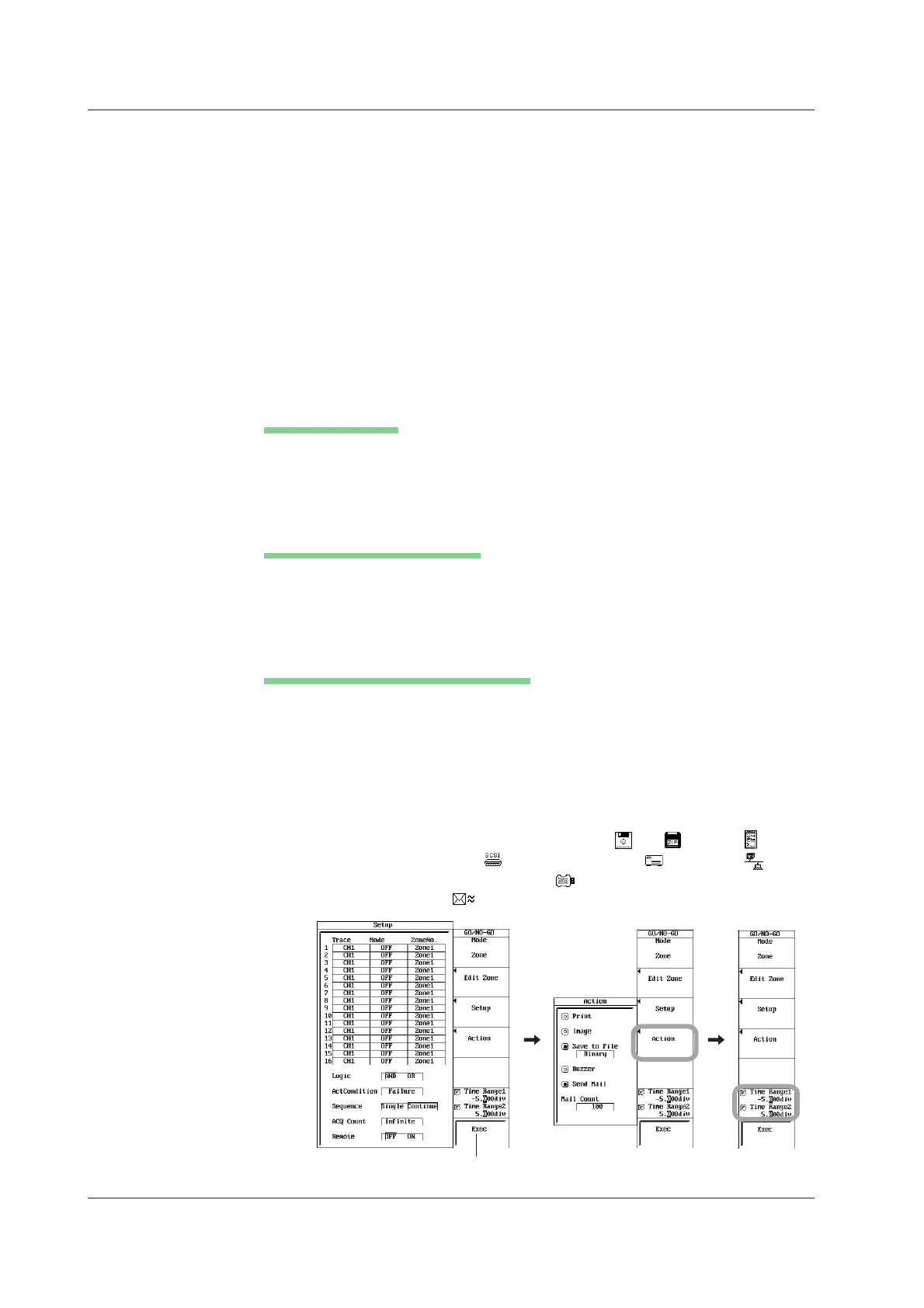

Selecting the Action
36. Press the Action soft key.
37. Use the jog shuttle and SELECT to set each action ON/OFF.
38. If you turn ON Save to File in step 37, use the jog shuttle and SELECT to set
the file save format to Binary, ASCII, or Float.
Setting the Determination Range
39. Press the Time Range1/Time Range2 soft key to set the jog shuttle control to
Time Range1.
40. Turn the jog shuttle to set the determination start point.
41. Likewise, set Time Range2 (determination end point).
Executing the GO/NO-GO Determination
42. Press the Exec soft key to execute the GO/NO-GO determination. The soft key
changes to Abort. Waveform acquisition stops automatically, when
determination is finished,
To stop the GO/NO-GO determination, press the Abort soft key or START/
STOP.
In addition, if the following action is specified, the following icon is displayed at
the upper left corner of the screen when an action is activated.
Image/Save to File: Save destination medium (
FD, Zip disk, PC
card,
external SCSI device, internal HD,
network drive, or USB storage device)
Send Mail:
If Remote is set to ON,
Exec (One Shot) is displayed.
11.8 Performing GO/NO-GO Determination Using Zones
