Horizontal and Vertical Axes
5
5.13 Displaying the All Channel Setup Menu
Copying to the Same Type of Modules

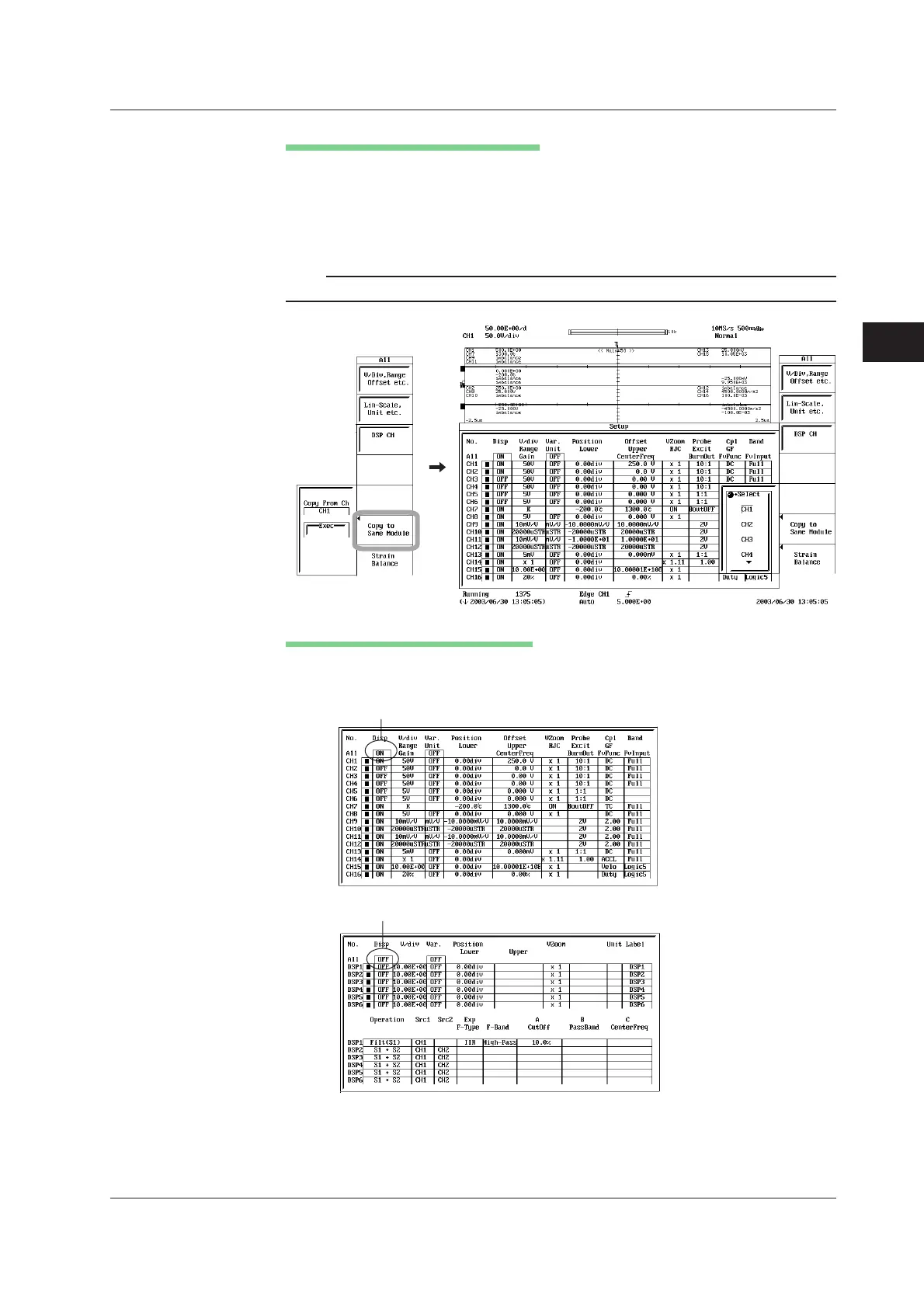

2. Press the Copy to Same Module soft key. The Copy From Ch screen appears.
3. Turn the jog shuttle to select Copy From Ch and press SELECT.
4. Use the jog shuttle and SELECT to select the copy source channel.
5. Turn the jog shuttle to select Exec and press SELECT. All of the settings are
copied to all the channels of the same type of modules as the copy source.
Note
Waveform colors and labels are not copied.
Turning ON/OFF the All the Channels
2. Use the jog shuttle or arrow keys to move to the Disp box for All and press
SELECT. You can turn ON/OFF all the channels simultaneously.
Turn ON/OFF all the DSP channels(DSP1 to DSP6) simultaneously.
Turn ON/OFF all the channels(CH1 to CH16) simultaneously.
