3-20
IM 701210-05E

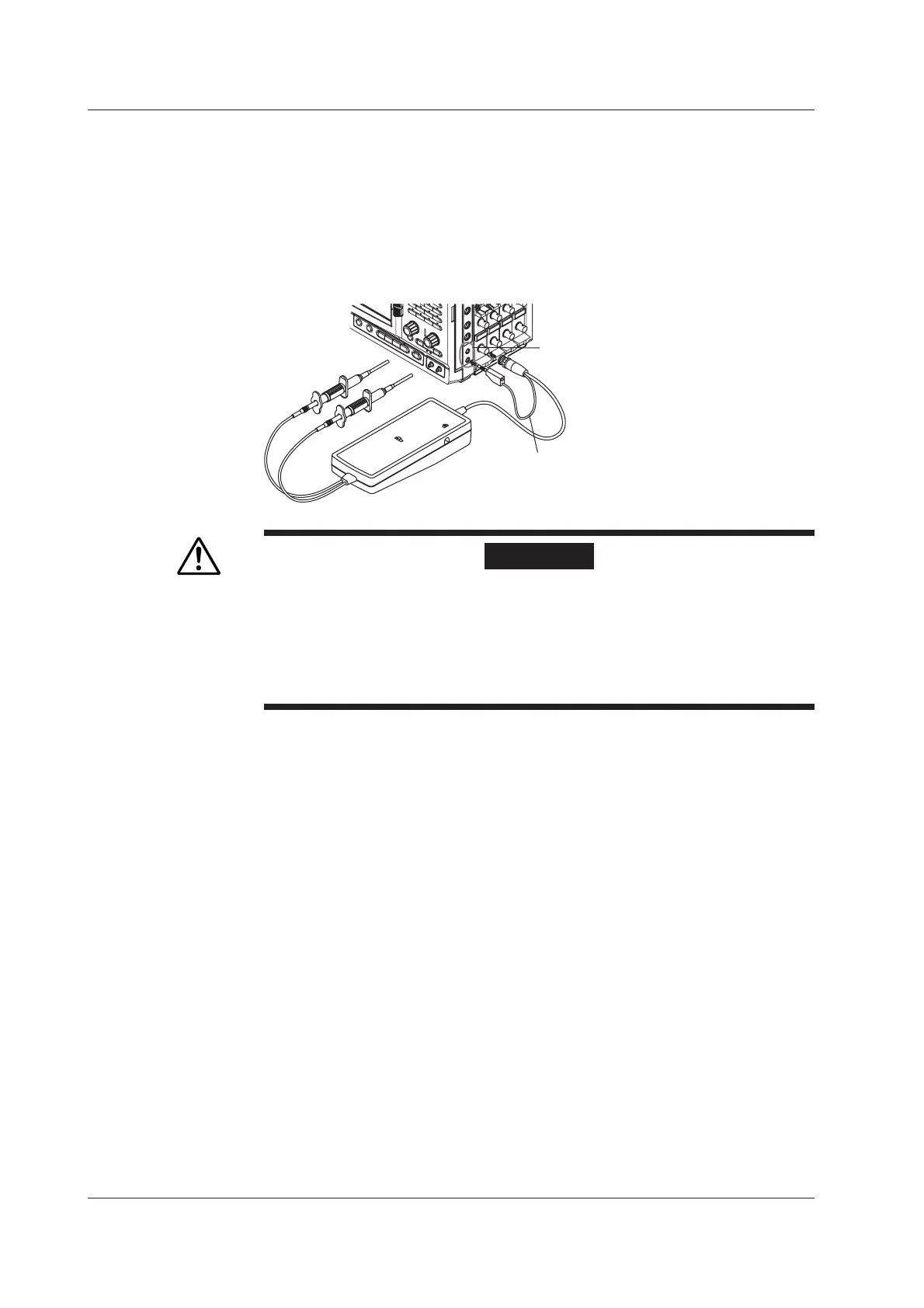

Connecting Differential Probes (700924)
When using differential probes (700924) made by YOKOGAWA, connect the BNC output
connector to the input terminal of the oscilloscope. In addition, be sure to connect the
GND lead to the functional ground terminal of the DL750/DL750P. If necessary, use the
auxiliary grounding lead extension. A measurement of 1400 Vpeak is possible by
connecting the GND lead to the DL750/DL750P.
For details on the connection procedure, see the manual that came with the differential
probe.
Functional ground terminal
GND lead
WARNING
In Using the High Voltage Differential Probes
Be sure to connect the GND lead of the differential probe (700924/700925) to
the functional ground terminal on the right side of the DL750/DL750P.
Otherwise, high voltage may appear at the BNC connector making it dangerous.
Be sure to connect the GND lead to the DL750/DL750P before connecting the
probe to the item to be measured.
3.6 Connecting Probes
To Next Page
