3-22
IM 701210-05E
Compensation Signal
The COMP signal output terminal outputs the following rectangular wave signal.
Frequency: 1 kHz±1%
Amplitude: 1 V±10%

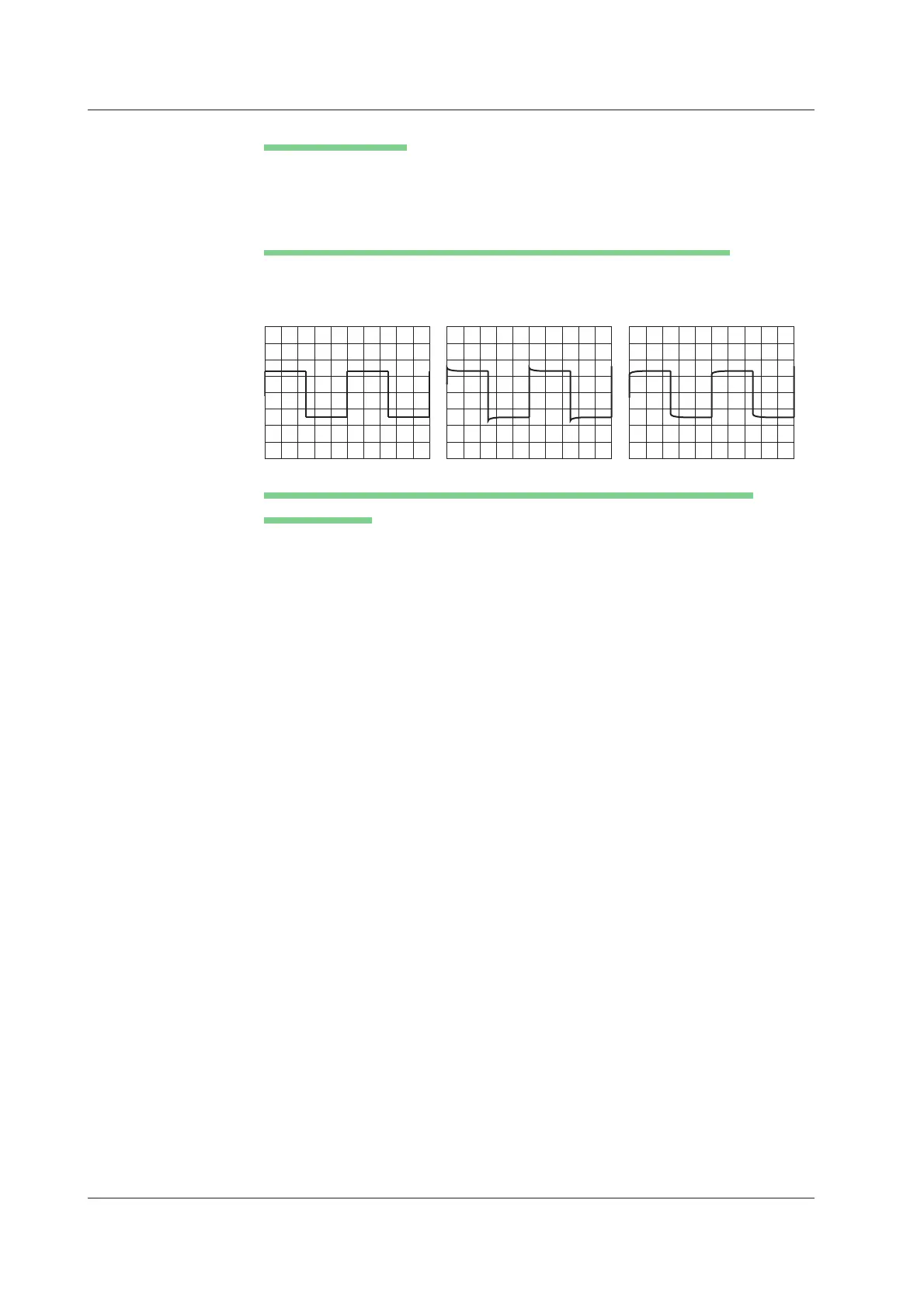

Differences in the Waveform Due to the Phase Correction of the Probe
Correct waveform
Over compensated
(the gain in the high
frequency region is up)
Under compensated
(the gain in the high
frequency region is low)
Precautions to Be Taken When Using the Probe on the Frequency Module
(701280 (FREQ))
You cannot perform phase correction of the probe on the frequency module. When
connecting a probe to the frequency module, perform phase correction of the probe on
another module beforehand.
3.7 Compensating the Probe (Phase Correction)
To Next Page
