4-12

IM 701210-05E

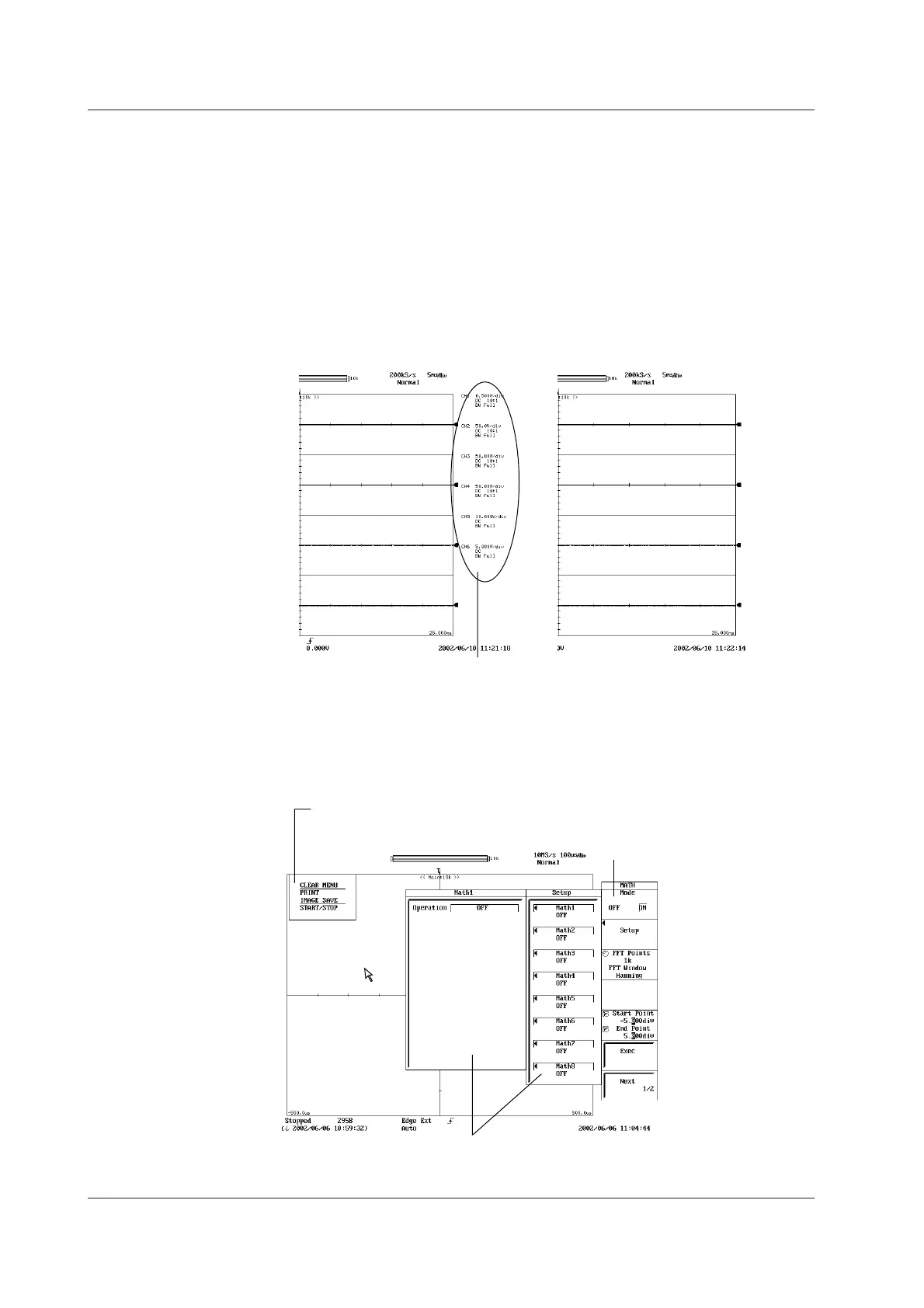

Clearing the Top Menu

Displaying the main setup information of each channel on the right side of the screen

after clearing the top menu

Left-click on an area outside the top menu. The top menu is cleared, and the main

setup information of the channel that is currently displayed is shown on the right side

of the screen.

• Expanding the Waveform Display Area after Clearing the Top Menu

Left-click WIDE SCREEN on the top menu. The top menu is cleared, and the

waveform display area is displayed expanded.

Displaying the main setup information

of each channel on the right side of

the screen after clearing the top menu

Expanding the waveform display area

after clearing the top menu

Main setup information of each channel

Displaying the Shortcut Dialog Box

As shown in the following figure, a shortcut menu is provided in addition to the setup

menu so that certain items can be executed even while a dialog box or a window is

open. The shortcut menu appears when you right-click on the screen while a dialog

box or a window is open. In this case, the top menu is not displayed.

Shortcut menu

Right-click when a dialog box or a window

is displayed to show the shortcut menu.

Dialog box other than the setup menu

Setup menu

4.3 USB Keyboard/USB Mouse
