5-32
IM 701210-05E
Setting the Gauge Factor
7. Press the Excitation/Gauge Factor soft key to set the jog shuttle control to
Gauge Factor.
8. Use the jog shuttle to set the gauge factor in the range of 1.90 to 2.20.

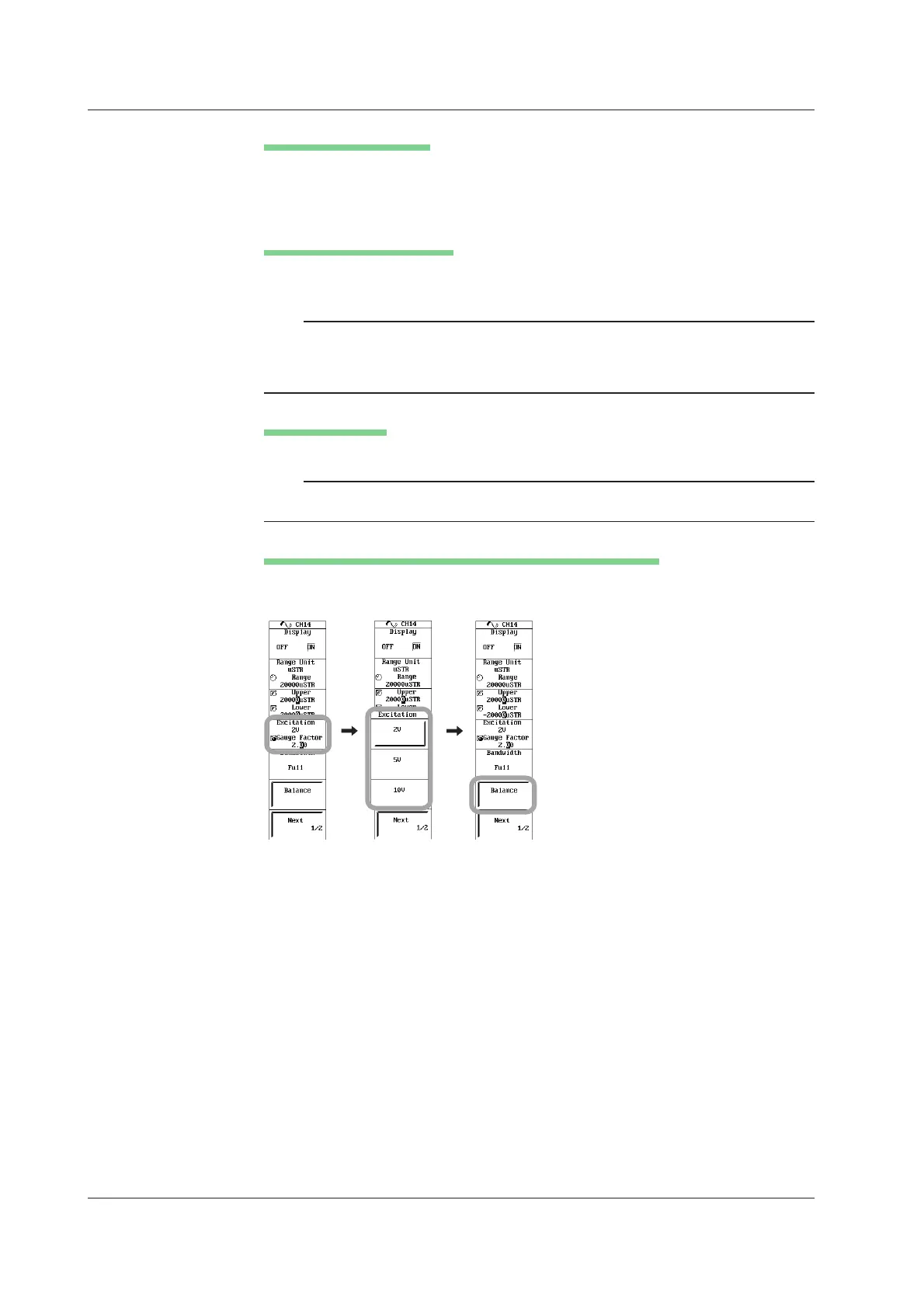

Selecting the Bridge Voltage
9. Press the Excitation/Gauge Factor soft key.
10. Press the 2 V, 5 V, or 10 V soft key to select the Excitation (bridge voltage).
Note
• The bridge voltage can be set to 5 V or 10 V only when the following conditions are met.
• When the bridge resistance is 350 Ω or more
• Strain gauge transducer supports the bridge voltage of 5 V or 10 V.
• Be sure to execute balancing when you change the bridge voltage.
Execute balancing
11. Press the Balance soft key. Balancing is executed.
Note
Perform balancing by connecting a bridge box or strain gauge transducer and without
applying a load to the strain gauge.
Setting the Bandwidth, Linear Scaling, and Waveform Label
For the setup procedure of bandwidth, linear scale, and waveform label, see section 5.7,
5.11, and 8.10, respectively.
5.17 Setting the Strain Measurement
To Next Page
