5.19 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency,
Pulse Width, Pulse Integration, and Velocity) Measurement
When Measuring the Period
Setting the Measurement Item
4. Press the FV Setup soft key. A setup dialog box opens.
5. Use the jog shuttle and SELECT to set Function to Period.
Setting Value/Div
6. Turn the V/DIV knob to set the Value/Div value. You can also set Value/Div by
pressing the Value/Div soft key and turning the jog shuttle.
Note
The unit for Value/Div and offset are synchronized to the unit of the measurement mode
selected in steps 4 and 5. For the procedure of setting the offset value, see section 5.10.
Carry out steps 7 to 12 below as necessary.
Setting the Smoothing Filter
7. To enable the smoothing filter, use the jog shuttle and SELECT to set Filter to
Smoothing.
8. Use the jog shuttle and SELECT to set the moving average order of smoothing
in the range of 0.0 to 1000.0 ms.
Setting the Pulse Average
9. To enable the pulse average, use the jog shuttle and SELECT to select Pulse
Average.
10. Use the jog shuttle and SELECT to set the number of times to perform pulse
average in the range of 1 to 4096.
Setting Deceleration Prediction and Stop Prediction
11. To enable deceleration prediction, use the jog shuttle and SELECT to turn
Deceleration Prediction ON.
12. To enable stop prediction, use the jog shuttle and SELECT to set Stop
Prediction in the range of 1.5 to 10 pulses.

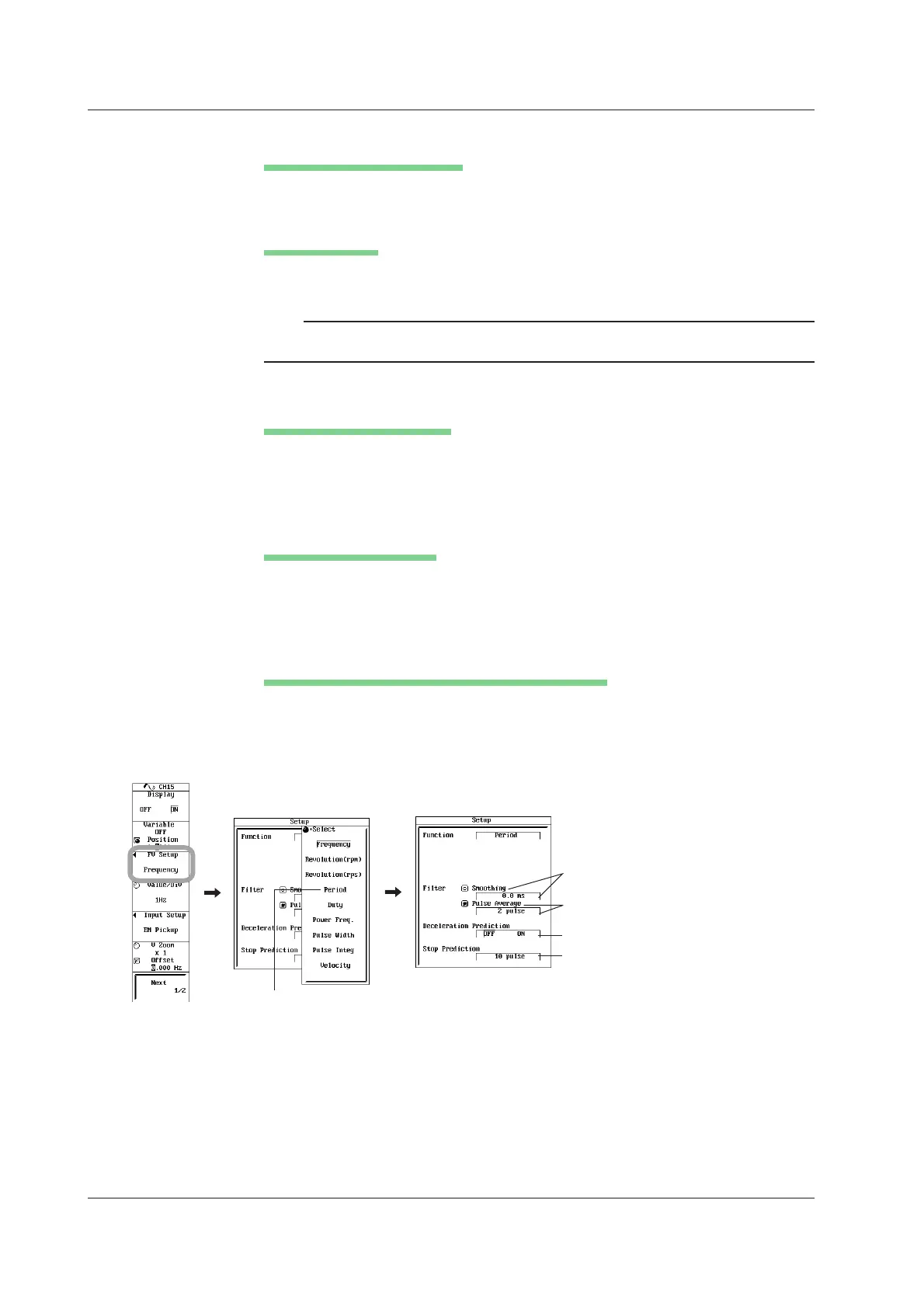

Smoothing filter
Moving average order of smoothing
Set the stop prediction
Set the deceleration prediction
Set Function to Period
Pulse average
Number of times to perform pulse average
