7-12
IM 701210-05E

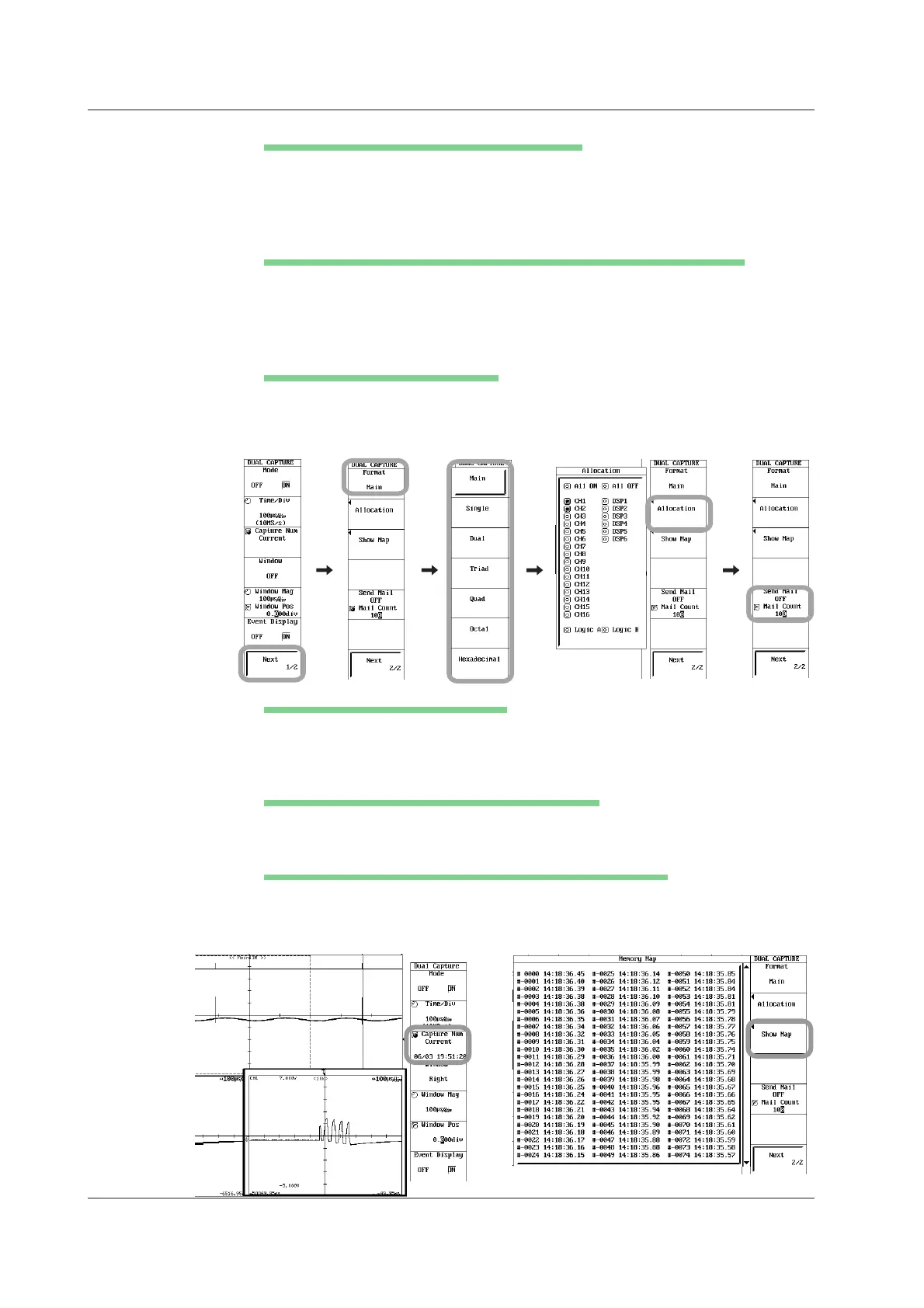

Selecting the Display Format of Sub Waveforms
15. Press the Next 1/2 soft key.
16. Press the Format soft key. The display format selection menu appears.
17. Use the job shuttle and SELECT to select the display format of the sub
waveforms.
Selecting the Channels to Be Displayed in the Sub Waveform Window
18. Press the Allocation soft key. A menu used to select the channels to be
displayed appears.
19. Use the job shuttle and SELECT to select the channels whose waveforms are
to be displayed.
Turning ON/OFF Mail Transmission
20. Press the Send Mail soft key. The mail transmission setup menu appears.
21. Press the ON or OFF soft key.
22. Use thejob shuttle to set the number of times to send the mail.
Executing the Waveform Acquisition
23. Press START/STOP to start the waveform acquisition.
When a trigger is activated on the specified trigger conditions, the waveform is
displayed in the sub waveform window.
Specifying and Displaying the Captured Waveform
24. Press the Capture Num soft key.
25. Turn the jog shuttle to specify the number of the waveform you wish to display.
Displaying a Waveform from the List of Captured Waveforms
26. In the 2/2 menu, press the Show Map soft key. A list of acquired waveforms is
displayed.
27. Turn thejob shuttle to select the waveform to be displayed and press SELECT.
7.6 Using the Dual Capture Function
To Next Page
