Setting the Threshold Level
17. Press the Next 1/2 soft key.
18. Press the Threshold soft key.
19. Use the jog shuttle and SELECT to set the trace (channel on which to assign
the threshold level).
20. Use the jog shuttle and SELECT to set Thr Upper.
21. Likewise, set Thr Lower.
As necessary, set Math1 to Math8 in a similar fashion.
Setting the Digital Filter
If you specified FILT1 or FILT2 in the equation, set the digital filter.

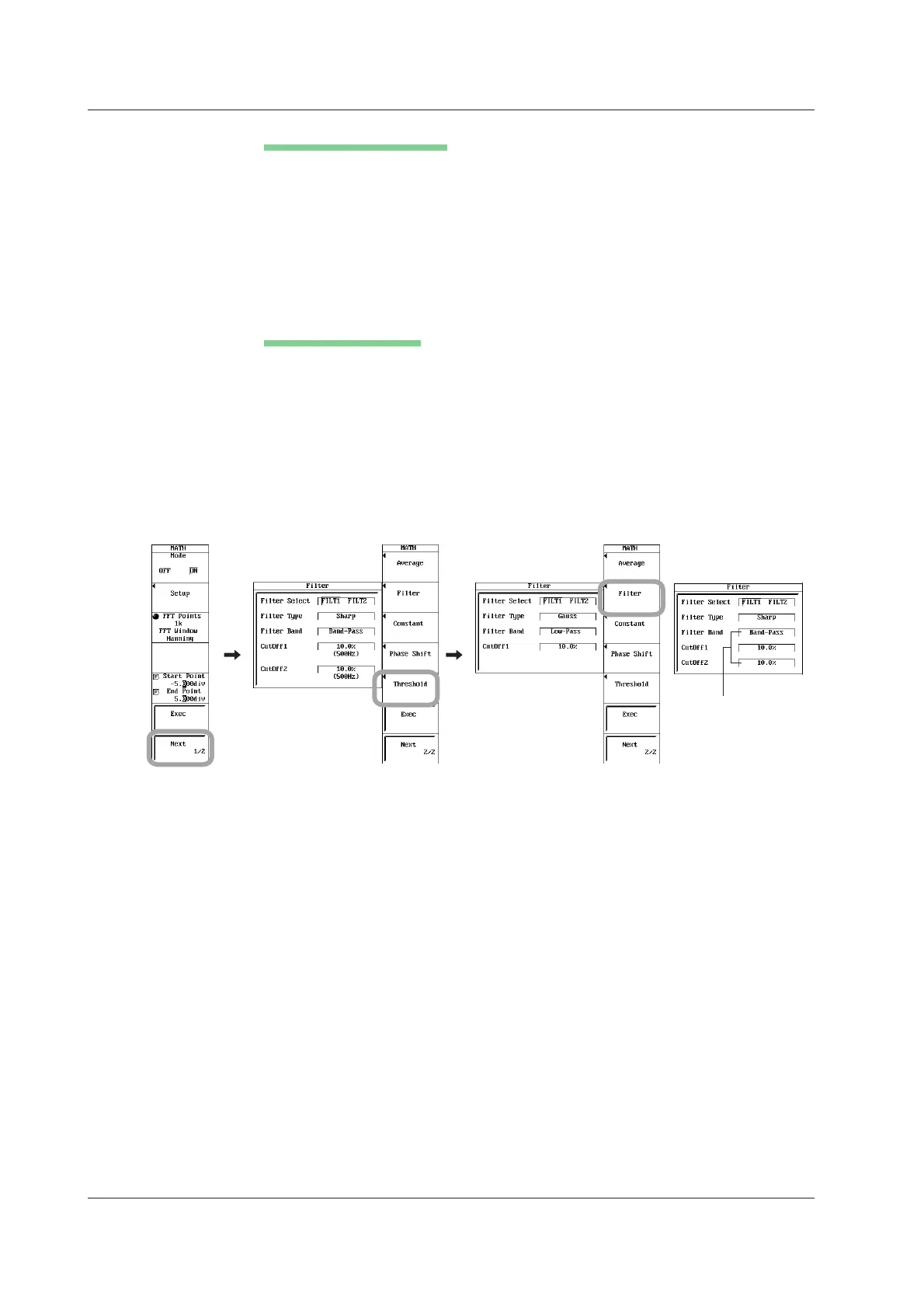

22. Press the Filter soft key. The filter setup dialog box appears.
23. Use the jog shuttle and SELECT to set Filter Select to FILT1 or FILT2.
24. Use the jog shuttle and SELECT to select Filter Type from Gauss, Sharp, and
IIR.
25. Press the Filter Band soft key to select Low-Pass, High-Pass, or Band-Pass.
26. Use the jog shuttle and SELECT to set CutOff.
If you set Filter Band to Band-Pass, set CutOff1/CutOff2 (cutoff frequencies for
both high and low).
Filter Band: When set
to Band-Pass, set both
CutOff1 and CutOff2.
