YOKOGAWA DL750 User Manual

11-26
IM 701210-06E
For Marker Cursors (When Displaying the X-Y Waveform)
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

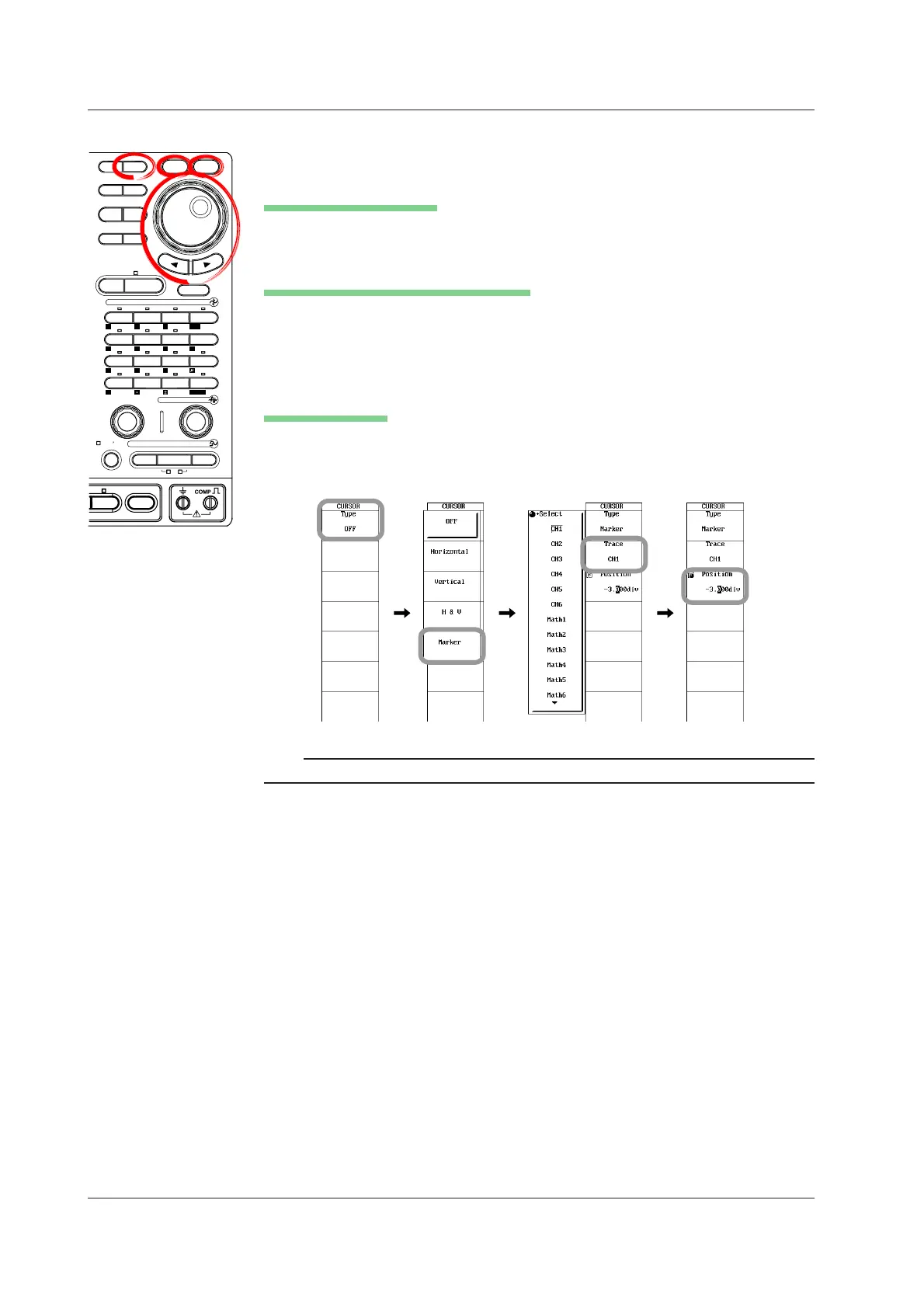

1. Press CURSOR.
Selecting the Cursor Type
2. Press the Type soft key. The cursor type selection menu appears.
3. Press the Marker soft key.
Selecting the Waveform to Be Measured
4. Press the Trace soft key.
5. If X Axis of the X-Y menu is set to Single, use the jog shuttle and SELECT to
select the trace. If X Axis is set to Quad, press the soft key corresponding to the
X-Y waveform (XY1 to XY4) to select the waveform to be measured.
Moving the Cursor
6. Press the Position soft key.
7. Turn the jog shuttle to move Position.
As the cursor is moved, the displayed value of Position changes.
DSP1 to DSP6 are optional.
Note
The marker is displayed for the Y Trace (target Y-axis waveform) specified in the X-Y menu.
11.5 Measuring Waveforms Using Cursors
