YOKOGAWA DL750 User Manual

13-28
IM 701210-06E

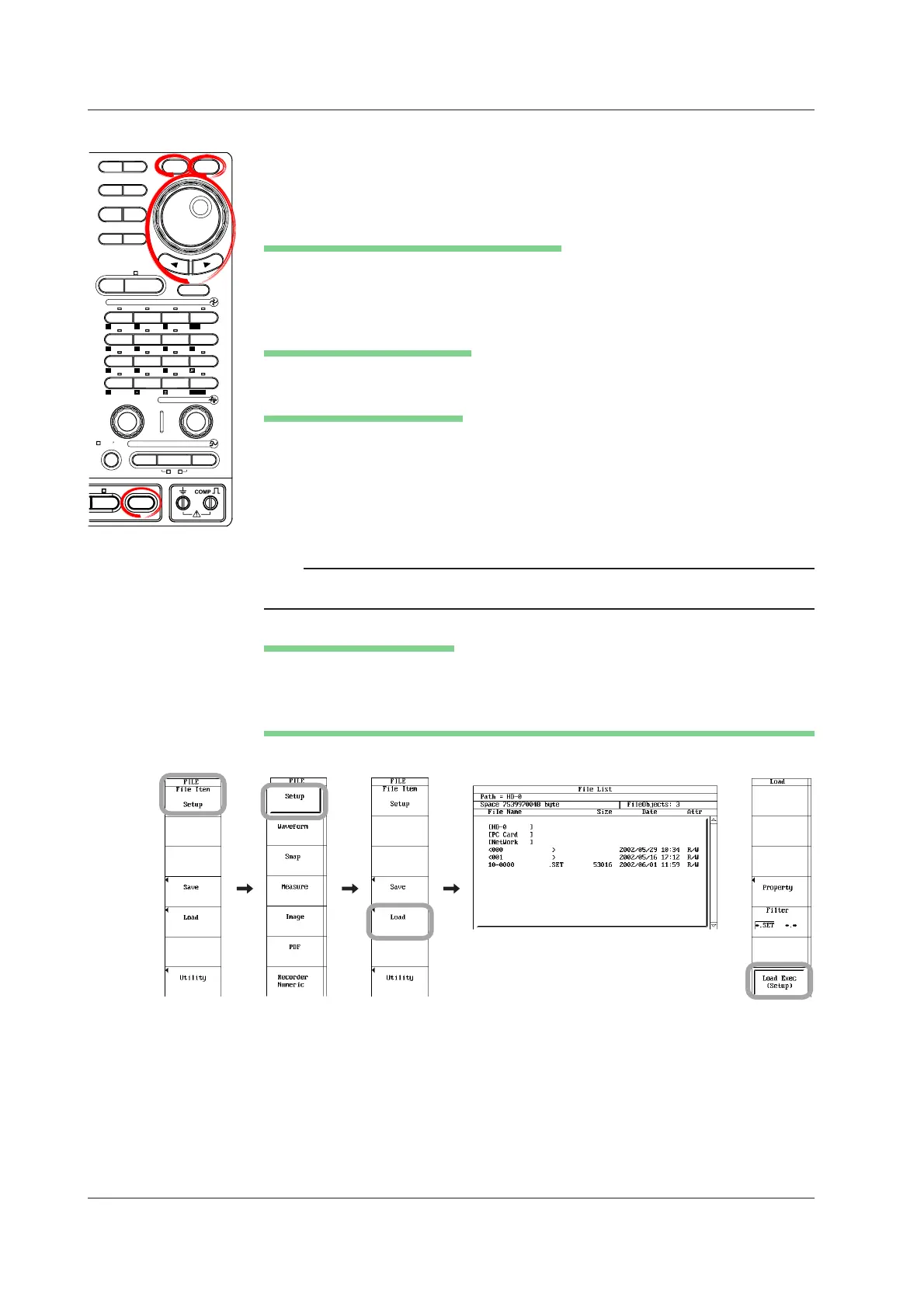

Loading the Setup Data
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press FILE.
2. Press the File Item soft key. The File Item setup menu appears.
3. Press the Setup soft key.
Selecting the Load Source Medium/Directory
4. Press the Load soft key. The load setup menu and File List window appear.
5. Select the load source directory according to steps 4 to 9 in “Saving the Setup
Data.”
Selecting the File to Be Loaded
6. Turn the jog shuttle to select the file.
Executing the Load Operation
7. Press the Load Exec soft key. A dialog box appears showing the module
information of the selected setup data and the current module information of the
DL750/DL750P.
8. Press the Load Exec soft key again. The selected file is read from the directory
indicated in Path=...... At the same time, the Load Exec soft key changes to an
Abort soft key.
Note
If the module information of the setup data and the current module information of the DL750/
DL750P differ, the setup data cannot be loaded.
Aborting the Load Operation
9. Press the Abort soft key. The load operation is aborted. At the same time, the
Abort soft key changes to a Load Exec soft key.
Specifying the Files to Be Displayed in the File List Window and Displaying Properties
10. Carry out steps 19 to 21 in “Saving the Setup Data.”
13.8 Saving/Loading the Setup Data
