YOKOGAWA DL750 User Manual

13-32
IM 701210-06E

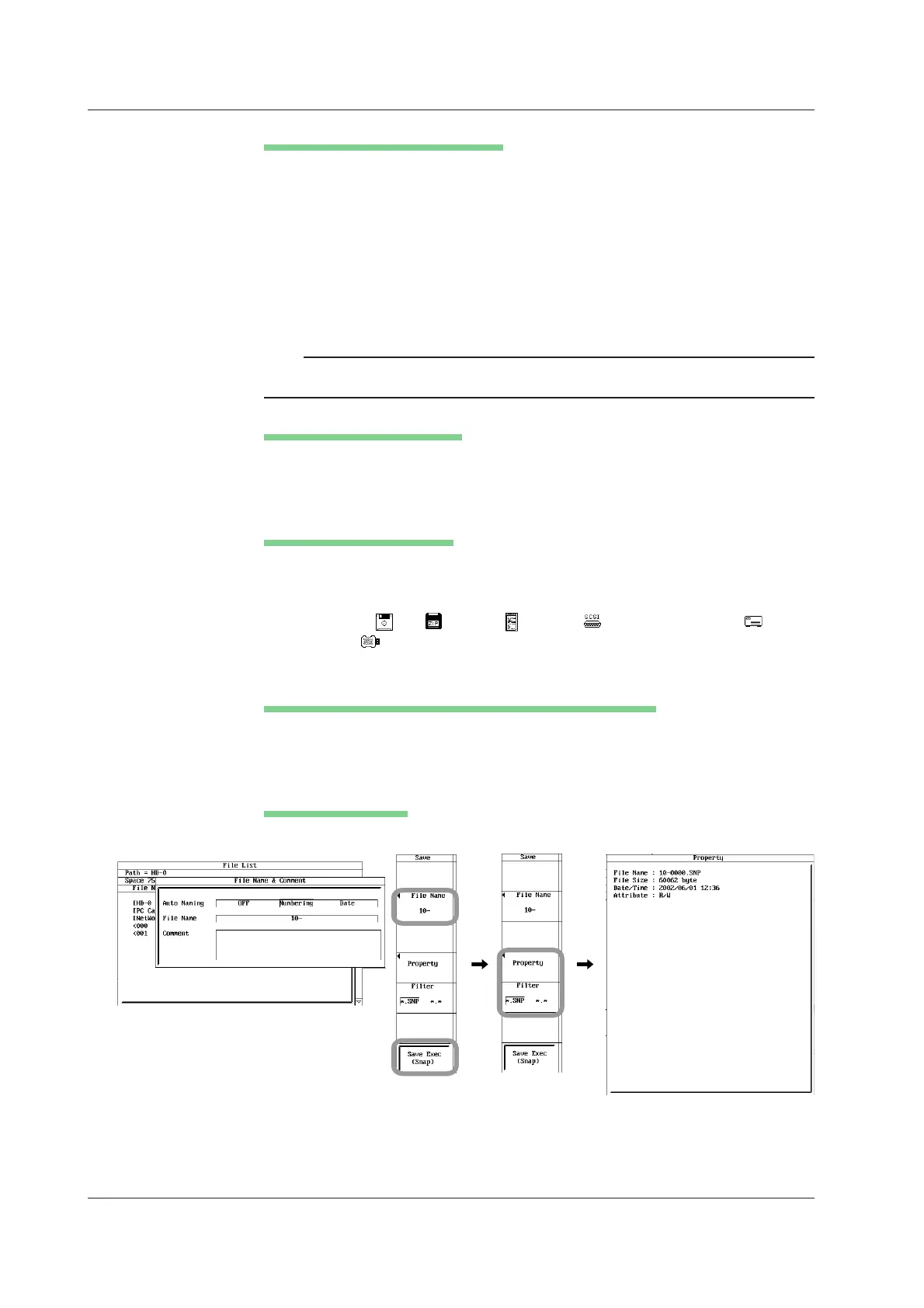

Setting the File Name and Comment
10. Press the File Name soft key. The file name setup menu appears.
11. Turn the jog shuttle to select Auto Naming.
12. Press SELECT to select OFF, Numbering, or Date.
13. Turn the jog shuttle to select File Name.
14. Enter the file name using up to 16 characters according to the procedure given
in section 4.2.
15. Turn the jog shuttle to select Comment.
16. Enter the comment using up to 160 characters according to the procedure given
in section 4.2.
Note
You can set up to 16 characters for the file name, but only 15 characters are displayed on the
setup menu.
Executing the Save Operation
17. Press the Save Exec soft key. The data is saved to the directory indicated by
Path=...... At the same time, the Save Exec soft key changes to an Abort soft
key.
Aborting the Save Operation
18. Press the Abort soft key. The save operation is aborted. At the same time, the
Abort soft key changes to a Save Exec soft key.
While the data is being saved, an icon corresponding the save destination
medium (
FD, Zip disk, PC card, external SCSI device, internal
HD, or USB storage device) is displayed at the upper left corner of the
screen.
Specifying the File to Be Displayed on the File List Window
19. On the screen showing the File List window, press the Filter soft key to select
*.SNP or *.*.
20. Turn the jog shuttle to select the files in the File List window.
Displaying Properties
21. Press the Property soft key. Information about the selected file is displayed.
13.9 Saving/Loading Snapshot Waveforms
