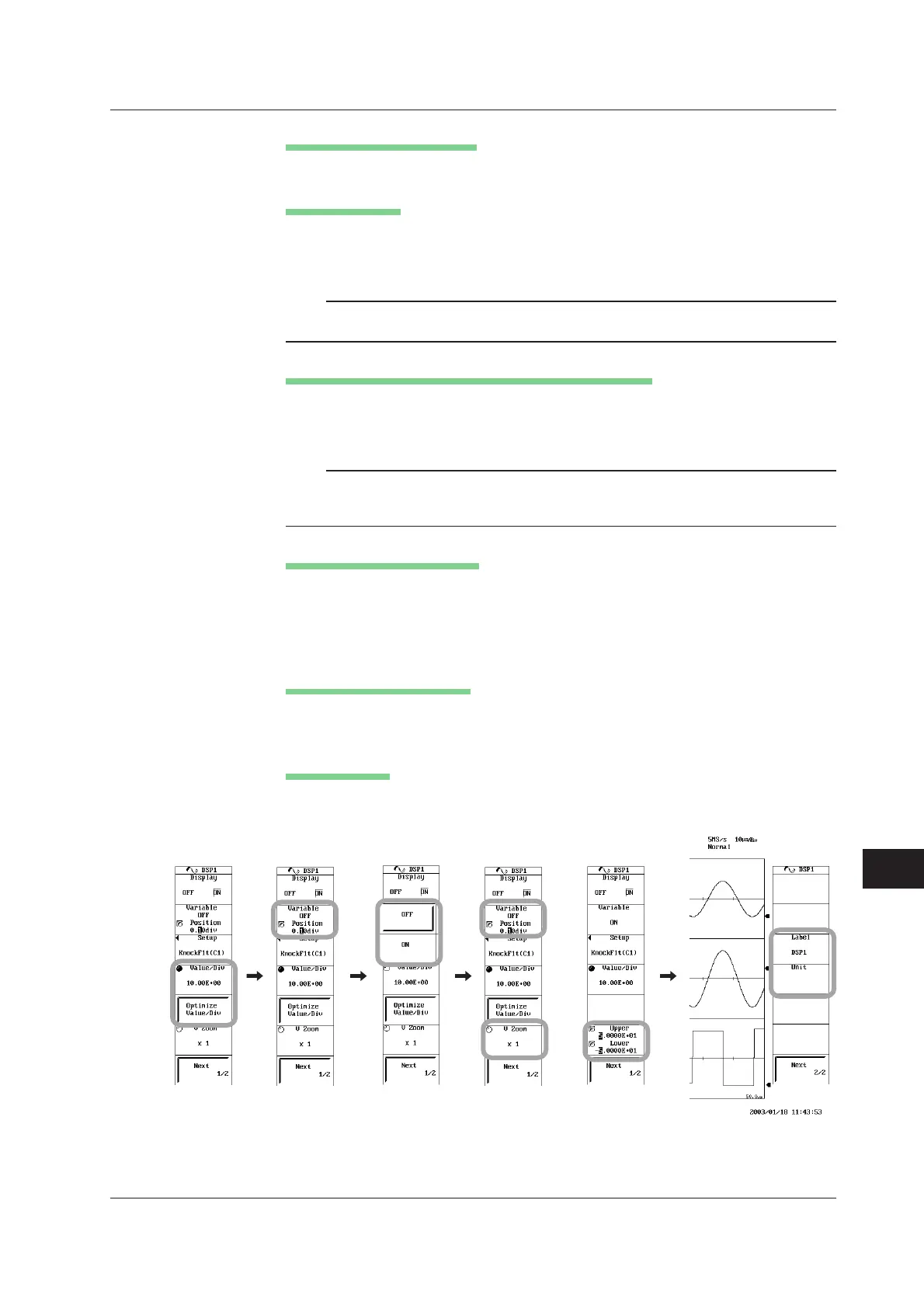

15-17
IM 701210-06E
Using the DSP Channel (Optional)
15
Setting the Elimination Level
8. Use the jog shuttle and SELECT to set Elimination Level. Press ESC.
Setting Value/Div
9. Turn the V/DIV knob to set the Value/Div value.
You can also set Value/Div by pressing the Value/Div soft key and turning the
jog shuttle.
Note
There are 123 (selectable range: 10.00E–21 [Value/Div] to 500.0E+18 [Value/Div]) different
Value/Div settings. You set the Value/Div using 1-2-5 steps similar to the V/div setting.
Automatically Selecting the Optimum Value/Div Setting
10. Press the Optimize Value/Div soft key. The optimum Value/Div setting is
automatically selected by referring to the range of the computation channel and
displayed.
Note
The Optimize Value/Div soft key appears only when Variable is OFF.
When using the knocking filter, the range is set to the same range as the computed
channel.
Zooming in on the Waveform
The procedure of “Zooming in or out Vertically by Setting the Zoom Rate” and “Zooming/
Expanding Vertically According to the Upper and Lower Limits of the Display Range” is
the same as the procedure described in section 15.2, “Performing Addition, Subtraction,
Multiplication, and Division (DSP Channels).” See page 15-4.
Setting the Waveform Label
The procedure is the same as the procedure described in section 15.2, “Performing
Addition, Subtraction, Multiplication, and Division (DSP Channels).” See page 15-4.
Setting the Unit
The procedure is the same as the procedure described in section 15.2, “Performing
Addition, Subtraction, Multiplication, and Division (DSP Channels).” See page 15-4.
Variable OFF
Variable ON
15.6 Using the Knocking Filter (DSP Channels)
