19-19
IM 701210-06E
Specifications
19
19.12 Module Specifications
Item Specifications
Compatible probes/cables Voltage probe (10:1 safety probe): Recommended
700929 (10:1 safety probe).20 to 45 pF: For measuring 600 Vpeak or less
Current probe (power can be supplied from the DL750/DL750P)
700937 (15 A), 701930 (150 A), 701931 (500 A), 701933 (30 A)
High voltage differential probe (connect the GND cable provided with the probe to the DL750/
DL750P case)
700924 (1000:1, 100:1/1400Vpeak): For measuring 1400 Vpeak or less
Connection cable (for high voltage 1:1)
701901 (isolated type BNC-safety alligator clip adapter ×2: For measuring 250 Vpeak or less), a
separate alligator clip (701954) is required
Connection cable (for low voltage 1:1)
366926 (non-isolated type BNC-alligator clip ×2: For measuring low voltage less than or equal to
42 Vpeak)

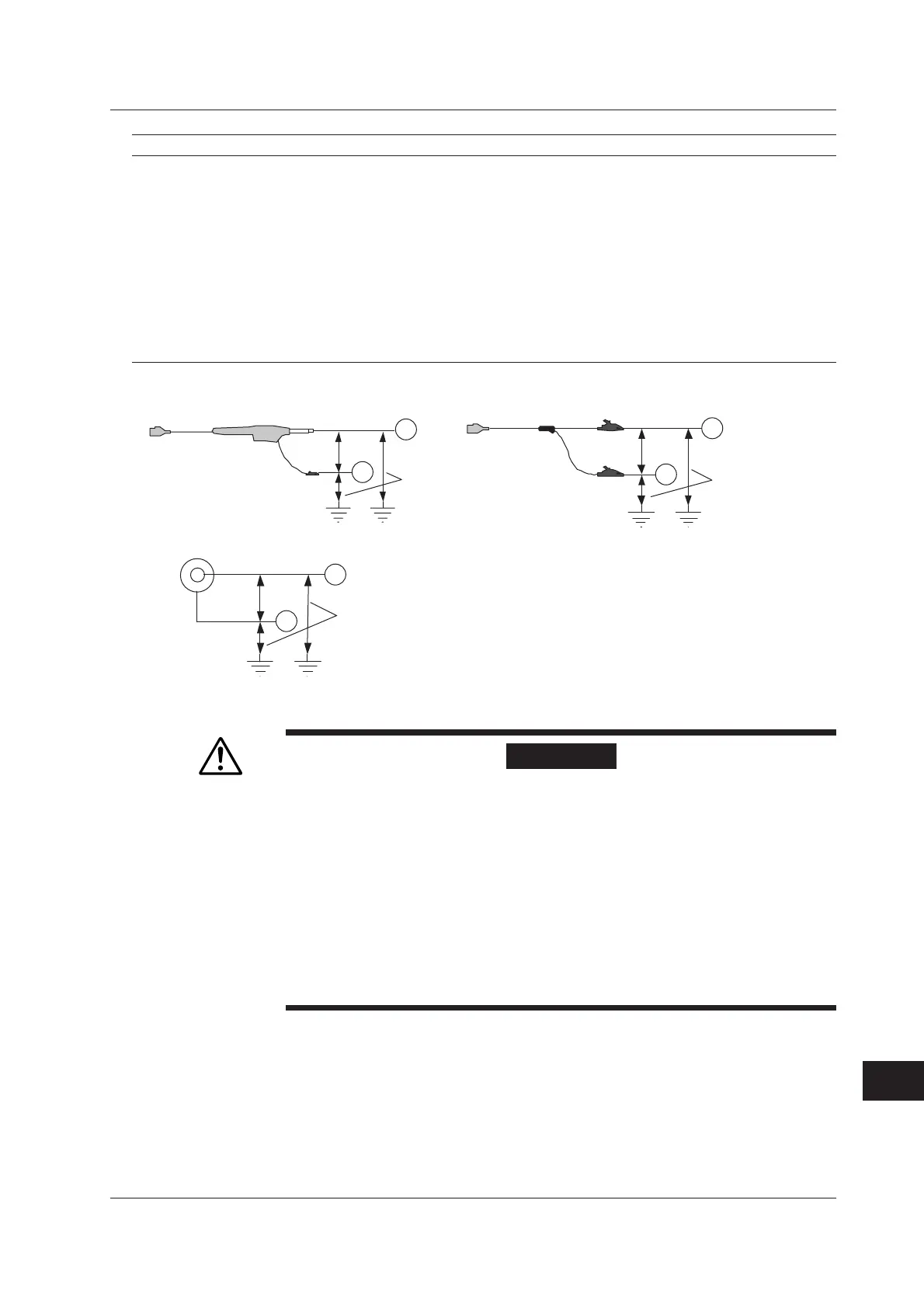

1. Value measured under standard operating conditions (section 19.11).
H
L
Combined with the 700929
2.
3.
700929
H
L
701901
701954
4.
Combined with the 701901+701954
H
L
Direct input (cable not complying with the safety standard)
6.
7.
BNC
5.
Withstand voltage: 1500 Vrms for 1 minute
Allowable transient surge voltage: ±2100 Vpea
(between earth and input)
8. The typical value is a representative or standard value. It is not strictly warranted.
WARNING
• Do not apply input voltage exceeding the maximum input voltage, withstand
voltage, or allowable surge voltage.
• To prevent the possibility of electric shock, be sure to furnish protective earth
grounding of the DL750/DL750P.
• To prevent the possibility of electric shock, be sure to fasten the module screws.
Otherwise, the electrical and mechanical protection functions will not be
activated.
• Avoid continuous connection under an environment in which the allowable surge
voltage or higher voltage may occur.
• To prevent the possibility of electric shock, be sure to connect the GND lead of
the differential probe (700924/700925) to the DL750/DL750P.
To Next Page
