Appendix 6 DSP Channel Computation (Optional)
• SHARP Band-pass: Pass-band Width 10%
-80
-60
-40
-20
0
10%
20%

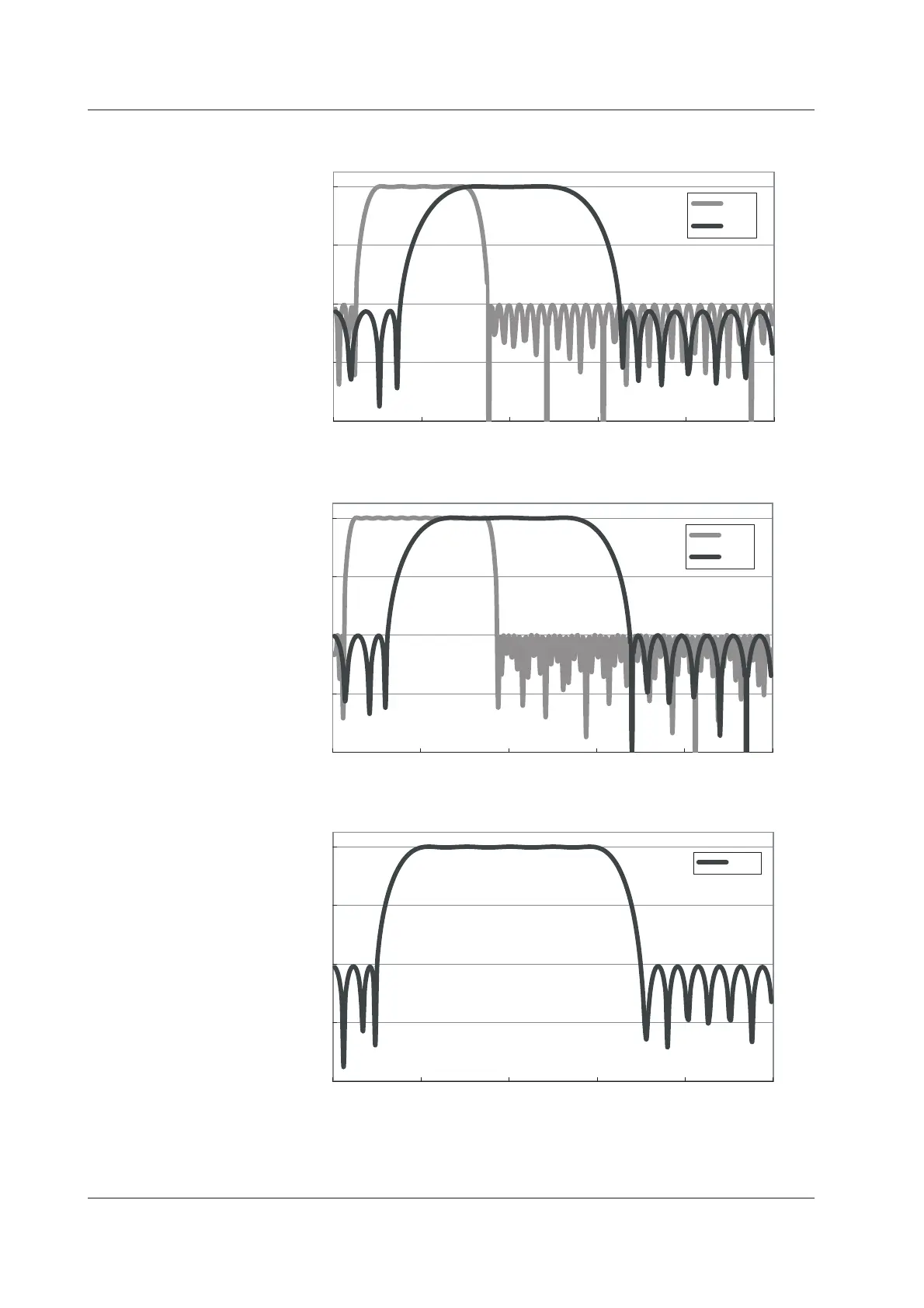

SHARP Band-pass Frequency Characteristics Pass-band Width 10%
0 f 0.1 f 0.2 f 0.3 f 0.4 f 0.5 f
dB
• SHARP Band-pass: Pass-band Width 15%
-80
-60
-40
-20
0
10%
20%
SHARP Band-pass Frequency Characteristics Pass-band Width 15%
0 f 0.1 f 0.2 f 0.3 f 0.4 f 0.5 f
dB
• SHARP Band-pass: Pass-band Width 20%
-80
-60
-40
-20
0
20%
SHARP Band-pass Frequency Characteristics Pass-band Width 20%
0 f 0.1 f 0.2 f 0.3 f 0.4 f 0.5 f
dB
(f: sampling frequency [Hz])
